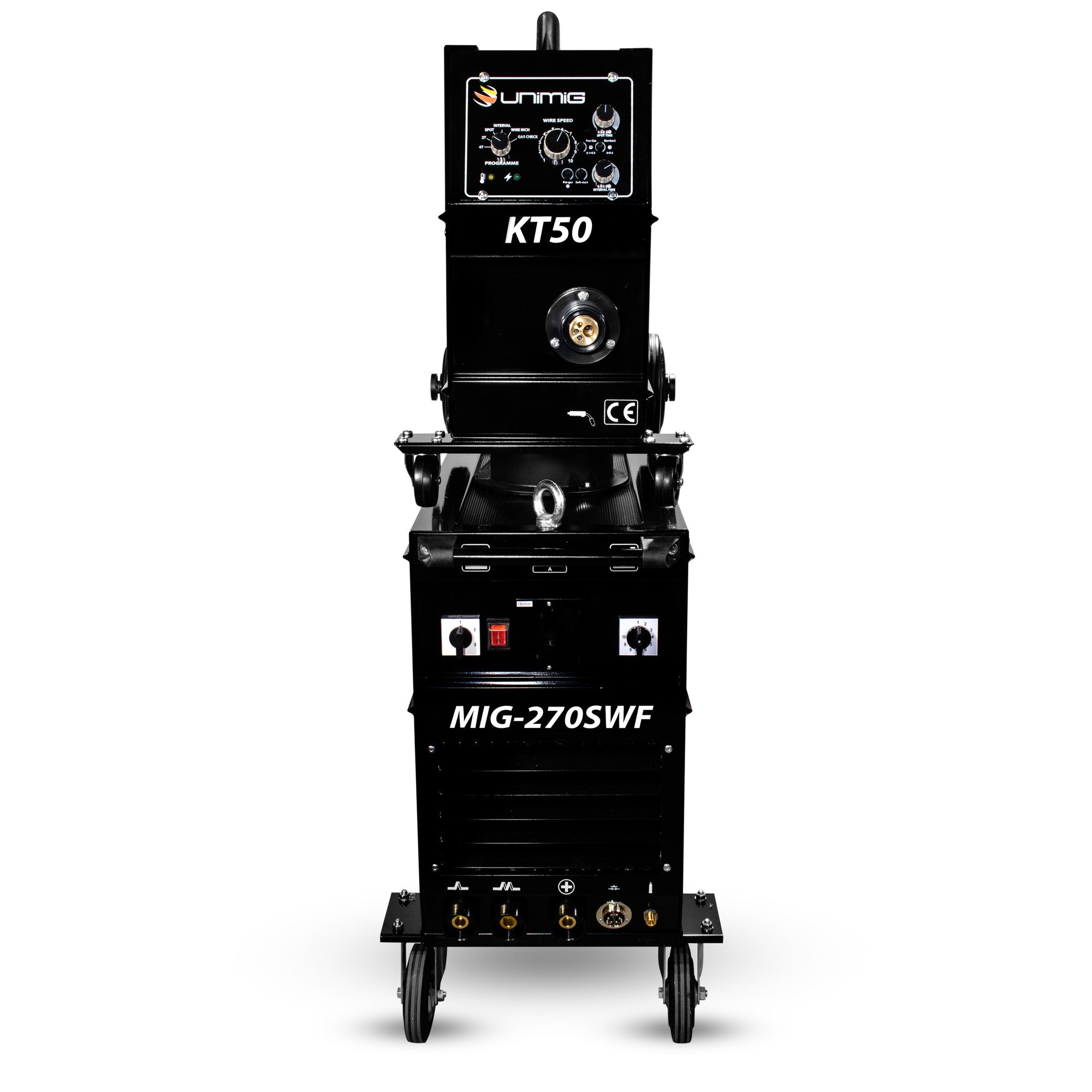

WORKSHOP 270 SWF MIG WELDER


Price:
Sale price$5,489.00
Contact us

Description

The WORKSHOP 270 SWF MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 21 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.

Go to greater heights with the addition of the KT50 Separate Wire Feeder unit which covers you an extra 10 metres, giving you increased manoeuvrability. It also prevents dust and moisture fouling you wire with its smart enclosed system design meaning no contaminates in your welds.


Product No: KUM270SWF

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

No plug supplied (32 AMP Recommended)

RATED INPUT POWER (kVA)

11.0

RATED OUTPUT

30-250A

PROTECTION CLASS

IP21

INSULATION CLASS

I

MINIMUM GENERATOR (kVA)

13.0

DINSE CONNECTOR

35/50

STANDARD

AS/NZ60974-1

SUITABLE MATERIAL

Mild Steel, Aluminium, Stainless Steel

WARRANTY (Years)

3

MIG SPECIFICATIONS

MIG WELDING CURRENT RANGE

30-250A

MIG DUTY CYCLE @ 40°C

70% @ 250A

MIG WIRE SIZE RANGE

0.6-1.2mm

MIG WIRE SPOOL SIZE

5kg/15kg

MIG WELDING THICKNESS RANGE

1-16mm

DRIVE ROLLER SIZE

40/32 (x2)

SIZE & WEIGHT

DIMENSIONS (mm)

980 x 660 x 460mm

WEIGHT (kg)

139kg

SWF INTERLOCKING CABLE LENGTH (m)

10m

MACHINE FEATURES

WIRE DRIVE

Four Geared

THERMAL OVERLOAD PROTECTION

Over Temperature Warning

CLICK HERE FOR SPEC SHEET
