Description

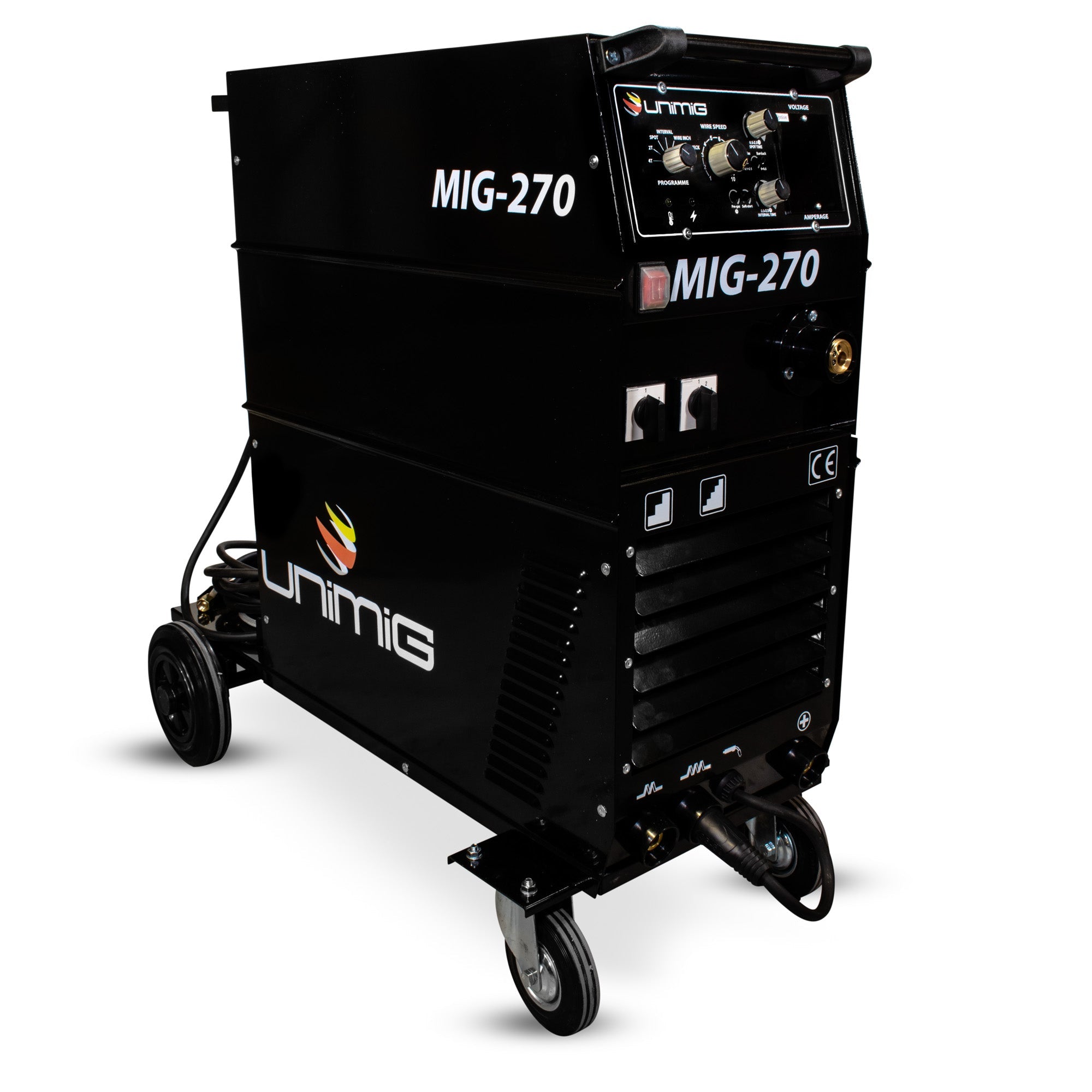

WORKSHOP 270 MIG WELDER
The WORKSHOP 270 Compact MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 21 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.
SINGLE PHASE
240V POWER
21 VOLTAGE STEPS
EXTRA PRECISE WELDING PARAMETERS
4 GEARED WIRE DRIVE
FOR SMOOTHER WIRE FEEDING.
GAS & GASLESS MIG
MILD STEEL, ALUMINIUM, FLUX-CORED, STAINLESS STEEL.
BUILT TO LAST
Designed and manufactured with the best quality components for increased durability and reliability. Workshop series machines feature Copper wound transformer and smoothing choke, large 250mm cooling fan with enclosed motor, to maximise cooling for high duty cycle operation.
VOLTAGE STEPS
21 position switching, allows precise setting in small increments of welding voltage so the operator can achieve the correct weld penetration.
FOUR GEARED WIRE DRIVE
This machine features a four geared roller drive unit, providing the most consistent and smoothest wire feed. This also assists with using longer MIG Torches.
MACHINE SPECIFICATIONS
240V Single Phase
No plug supplied (32 AMP Recommended)
11.0
30-250A
IP21
I
13.0
35/50
AS/NZ60974-1
Mild Steel, Aluminium, Stainless Steel
3
MIG SPECIFICATIONS
30-250A
70% @ 250A
0.6-1.2mm
5kg/15kg
1-16mm
40/32 (x2)
SIZE & WEIGHT
870 x 940 x 460mm
116kg
MACHINE FEATURES
Four Geared
Over Temperature Warning
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 3-year warranty on all WORKSHOP Machines*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
