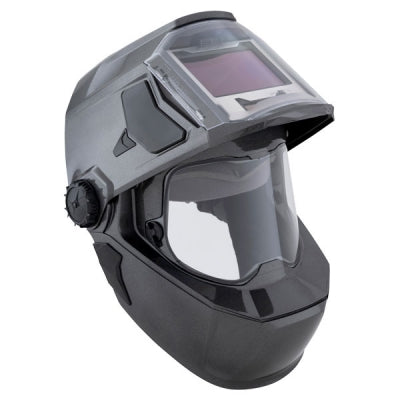

Miller Ultra HDV Welding Helmet Flyer- Ultra HDV helmet assembly
- Spare HDV front cover lens (x2)
- Spare HDV grind shield (x2)
- Cover bag
- Spare cover lens inside (x2)
- Tear away grind shield (x2)
- Helmet owner manual
Description
HIGH DEFINITION VIEW - PROVIDES A CLEAR DETAILED VIEW AT ANY ANGLE WITH MINIMAL DISTORTION.
PACKAGE INCLUDES
PART NUMBERS
- 305000
Large Integrated Grind Shield
The 174mm x 126mm viewing area provides a clear view for grinding and other tasks, increasing helmet-on-time, decreasing the potential for eye injuries.
HDV Technology
Provides a sharp detailed view of the weld pool with minimal distortion.
Exclusive Miller ClearLight 2.0 Lens Technology
Advanced high-definition optics for the most realistic view that’s clearer and brighter.
Exclusive Miller InfoTrack 2.0 Technology
Provides memory, arc time and arc count functions that allows the weld operator to store favourite settings. Keep track of weld time and arc starts.
Exclusive Miller X-Mode Technology
Allows the lens to darken only when you start to weld. Ideal for outdoor, low amp TIG and obstructed applications.
Gen 4 Headgear
Features an oversized back pad and multiple head straps for a secure fit, eliminating over tightening and discomfort.
Half Shade Settings
Provides precise lens adjustment for optimised comfort and vision.
Aluminium Heat Shield
Reflects heat, keeping the lens and operator cool.
2.5 Light State
Allows operators to keep their hood down between welds, improving safety and productivity.
Memory Function
For easy switching between two preset customised memory settings.
Huge 174x126mm Integrated Grind Shield
The 174mm x 126mm viewing area provides a clear view for grinding and other tasks, increasing helmet-on-time, decreasing the potential for eye injuries.
Exclusive Miller HDV Technology
Provides a sharp detailed view of the weld pool with minimal distortion.
2.5 Light State
For a brighter view while grinding.
Exclusive Miller ClearLight Technology
For a brighter, clearer weld view.
Gen 4 Headgear
For a secure and comfortable fit.
Exclusive Miller Infotrack Technology
With memory function, tracks weld time and arc counts.
Exclusive Miller X-Mode Technology
The lens darkens only when you start to weld.
| Product Specifications | |
|---|---|
| Viewing Area | 97 x 60 mm |
| Cartridge Size | 114 x 120 x 9.5 mm |
| Modes | X-Mode, Weld, Cut, Grind |
| X-Mode | Shade 8 - 12.5 |
| Grind Mode | Shade 2.5 |
| Cut Mode | Shade 5 - 8 |
| Weld Mode | Shade 8 - 12.5 |
| Switching Speeds (Light to Dark) | 1/25,000 sec |
| Delay Speeds (Dark to Light) | 0.1 - 1.0 sec |
| Arc Sensors | 4 |
| Optical Grade | EN379 1/1/1/2 |
| Weight | 709g |
| Power | CR2450 lithium battery and solar assist |
| On/Off Control | Automatic on, off after 45 minutes |
| Operating Temperature | -10 to 55° C |
| Australian Standards | AS/NZS 1338.1 (Auto-Darkening) AS/NZS 1337.1B (High Impact) |
| Warranty | 3 Years (Auto-Darkening lens only) |
| Parts and Accessories | Part Number |
|---|---|
| Replaceable battery | 217043P2 |
| Magnifying Lens 1.5x | 212238P |
| Magnifying Lens 2.0x | 212240P |
| HDV front cover lens | 305004 |
| HDV grind shield | 305007 |
| Cover lens inside | 216327 |
| Tear away grind shield | 258853 |
| Headgear | 260486 |
| Headgear fabric | 770249 |
| Adjustment angle/stop kit |
265891 |
