Description

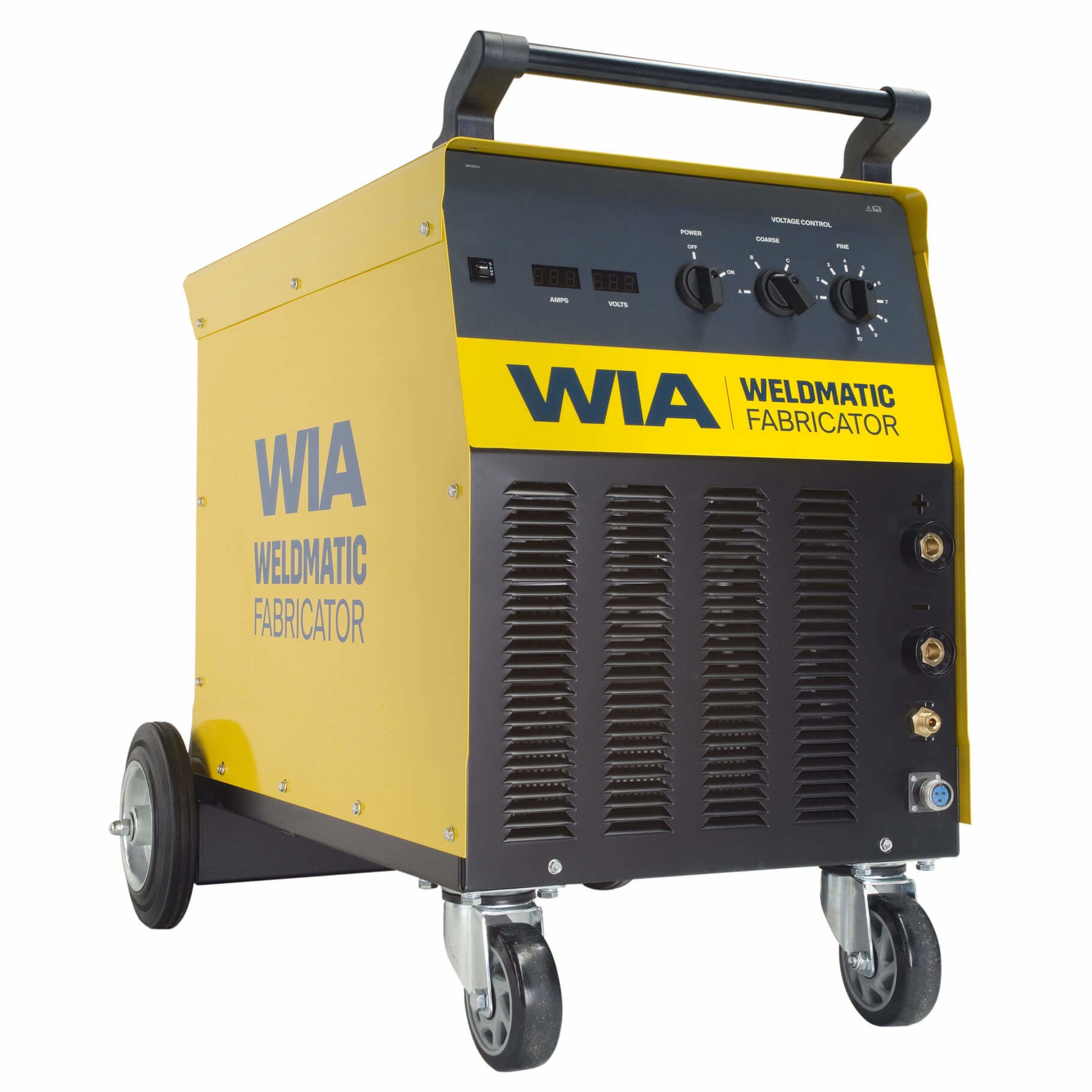

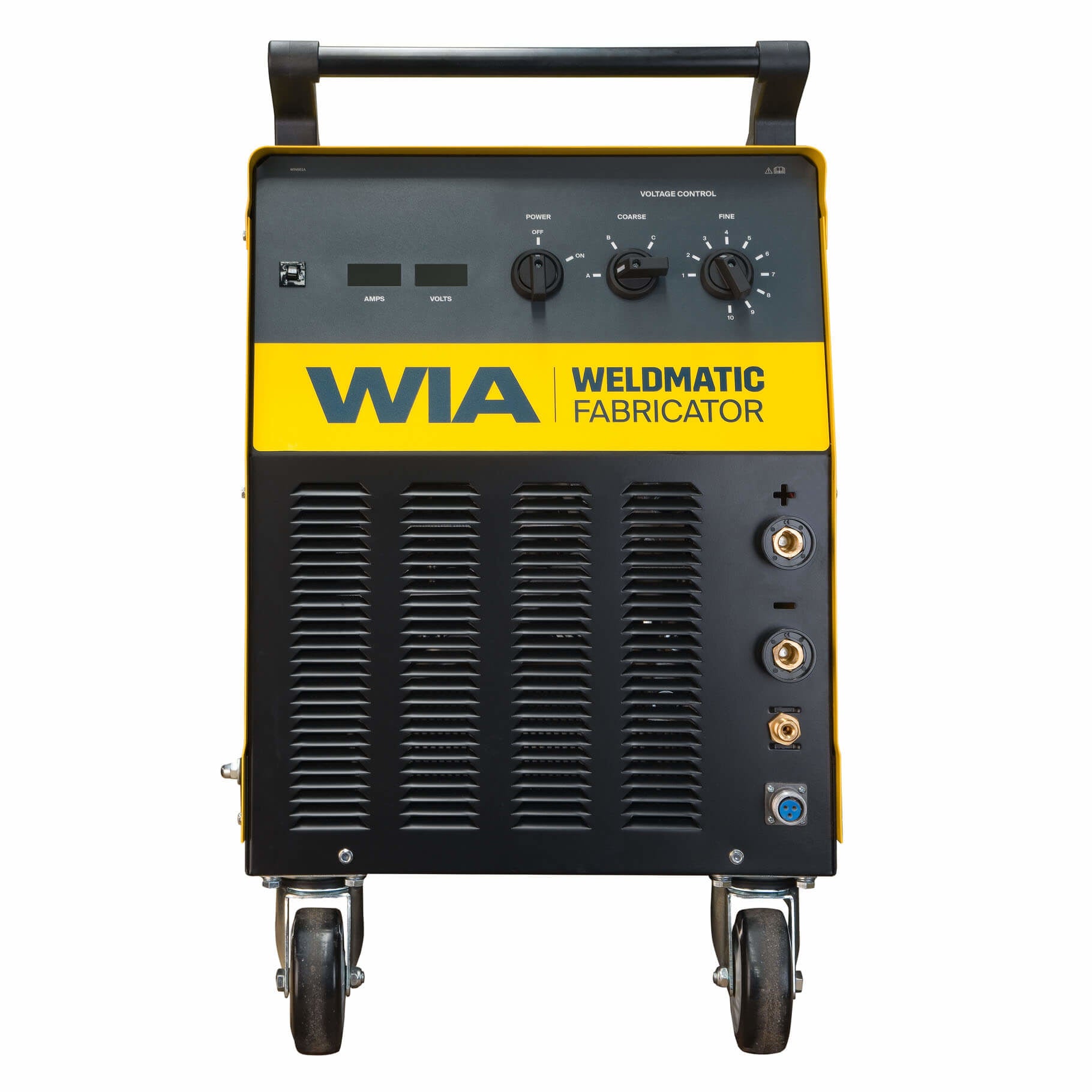

Weldmatic Fabricator
The Ultimate Industrial MIG Welding Solution

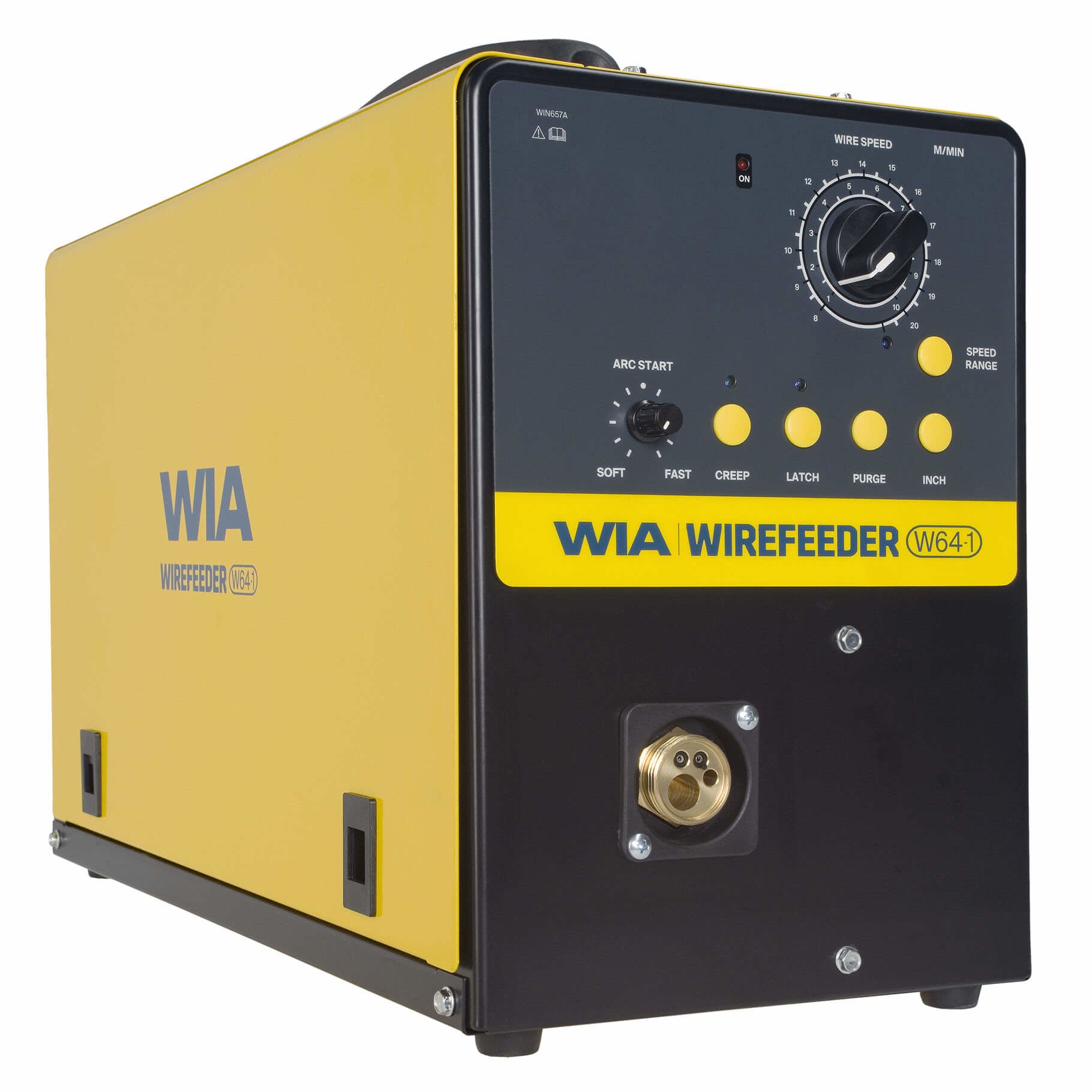

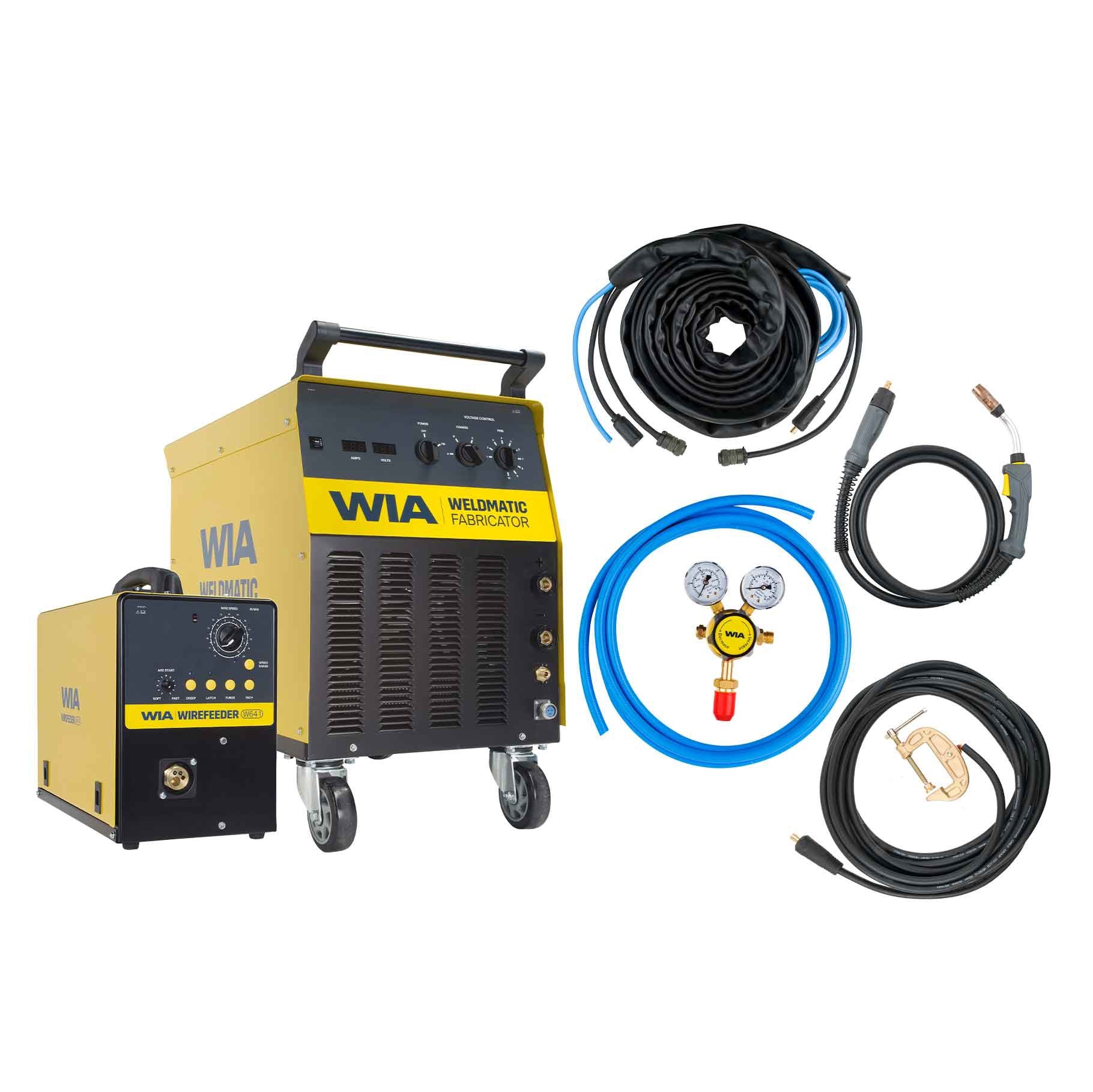

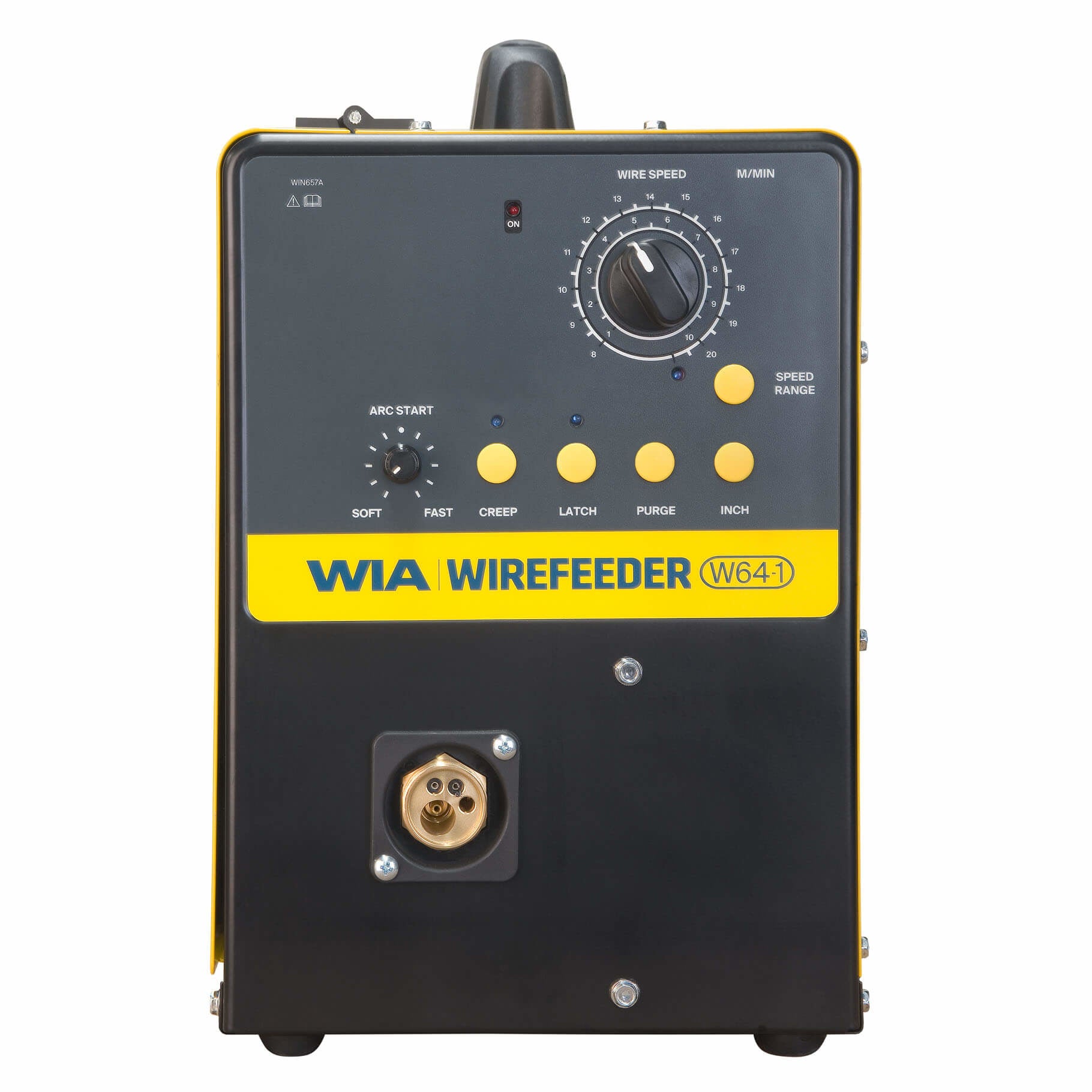

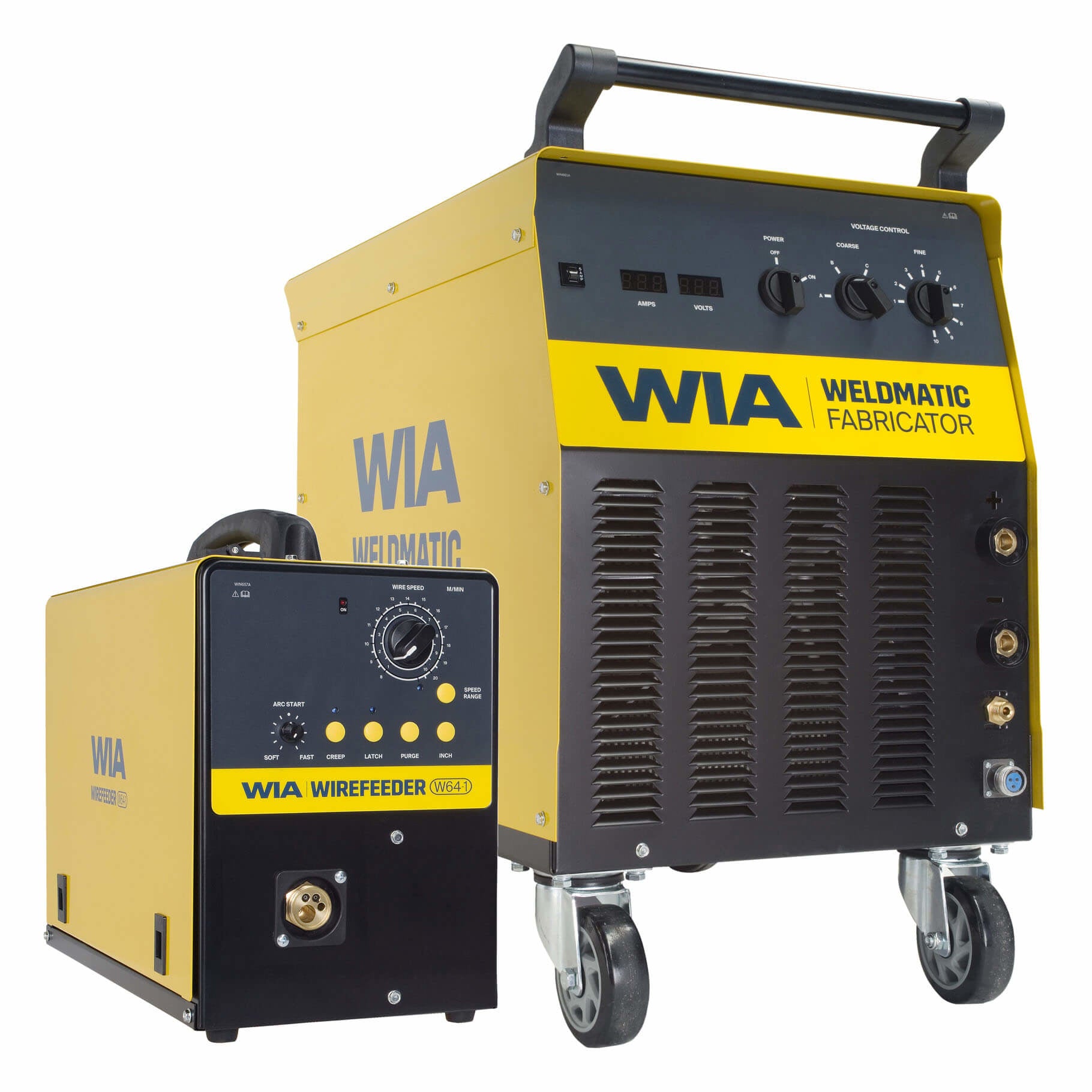

The Weldmatic Fabricator is the most powerful WIA MIG welding machine for medium and heavy industrial fabrication applications. Packaged with a separate wire feeder it provides extra flexibility for a workshop set up and enables custom set up to suit the job through arc start, wire speed, burn back, spot time, creep mode, pre and post gas settings and more!
Processes: MIG
- 400 A three phase MIG welder
- 400 A at 34 V 45% Duty Cycle
- Digital Meters - Easy to read and easy to adjust parameters
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Arc Start - Modifies arc starting condition, wire accelerates at different speed depending on application
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminium starts
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21 rated
- Generator compatible - 20 kVa
Machine Specification
Primary Voltage
415 VAC-50Hz
Rated Primary Current
18 Amps
Max Primary Current
27 Amps
Recommended Generator Power
20 kVa
Supply Plug
32 Amp
Weight
101kg
MIG Specification
Current Range
50A/16.5V-400A/34V
Rated Output @ 40°C (10min)
400A/34V @ 45%
350A/31.5V @ 60%
270A/27.5 @ 100%
Electrode Range Size
0.6-1.6mm (Solid), 0.8-2.0mm (Cored)
Material Thickness Range
Welds up to 12mm+ steel plate, single pass
