Description

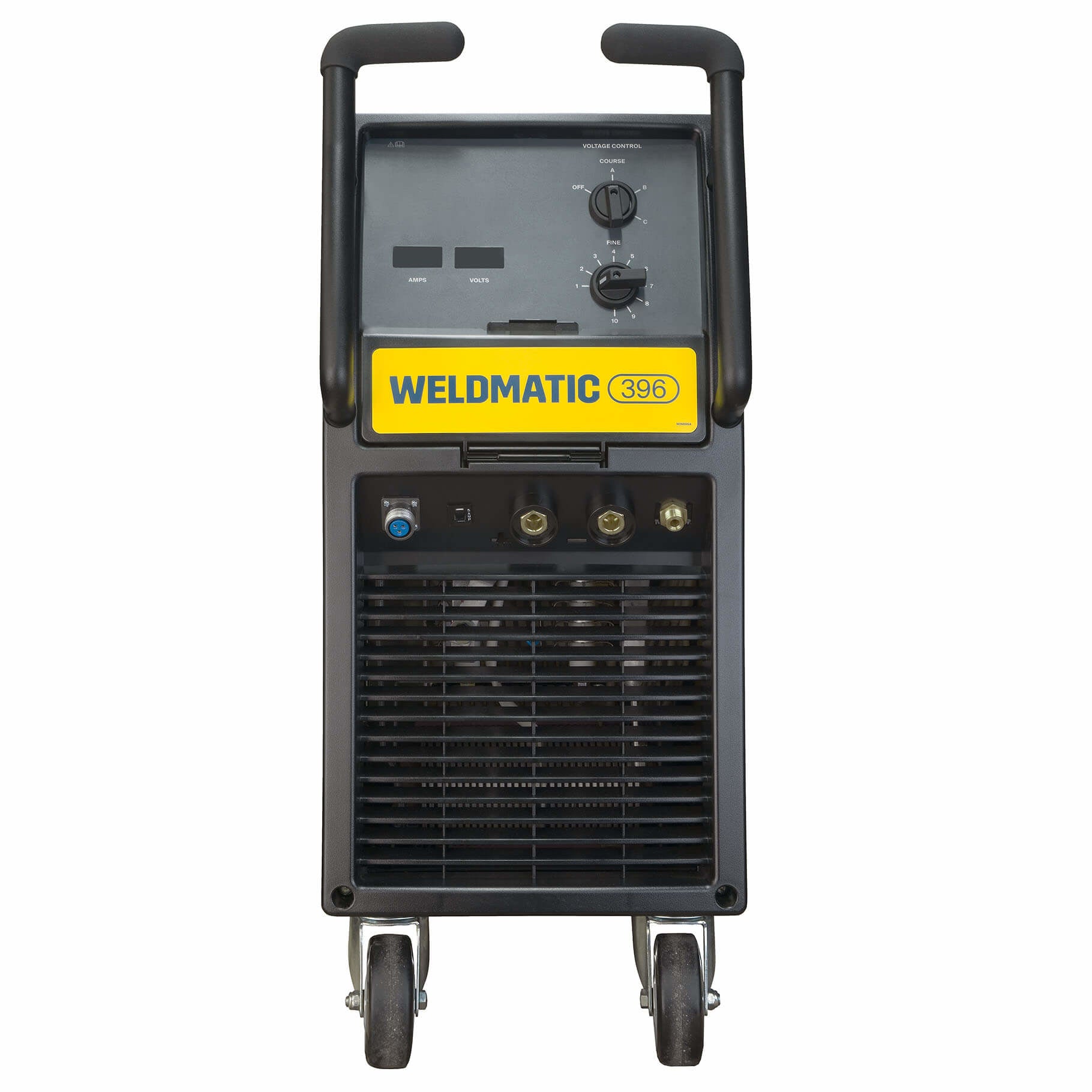

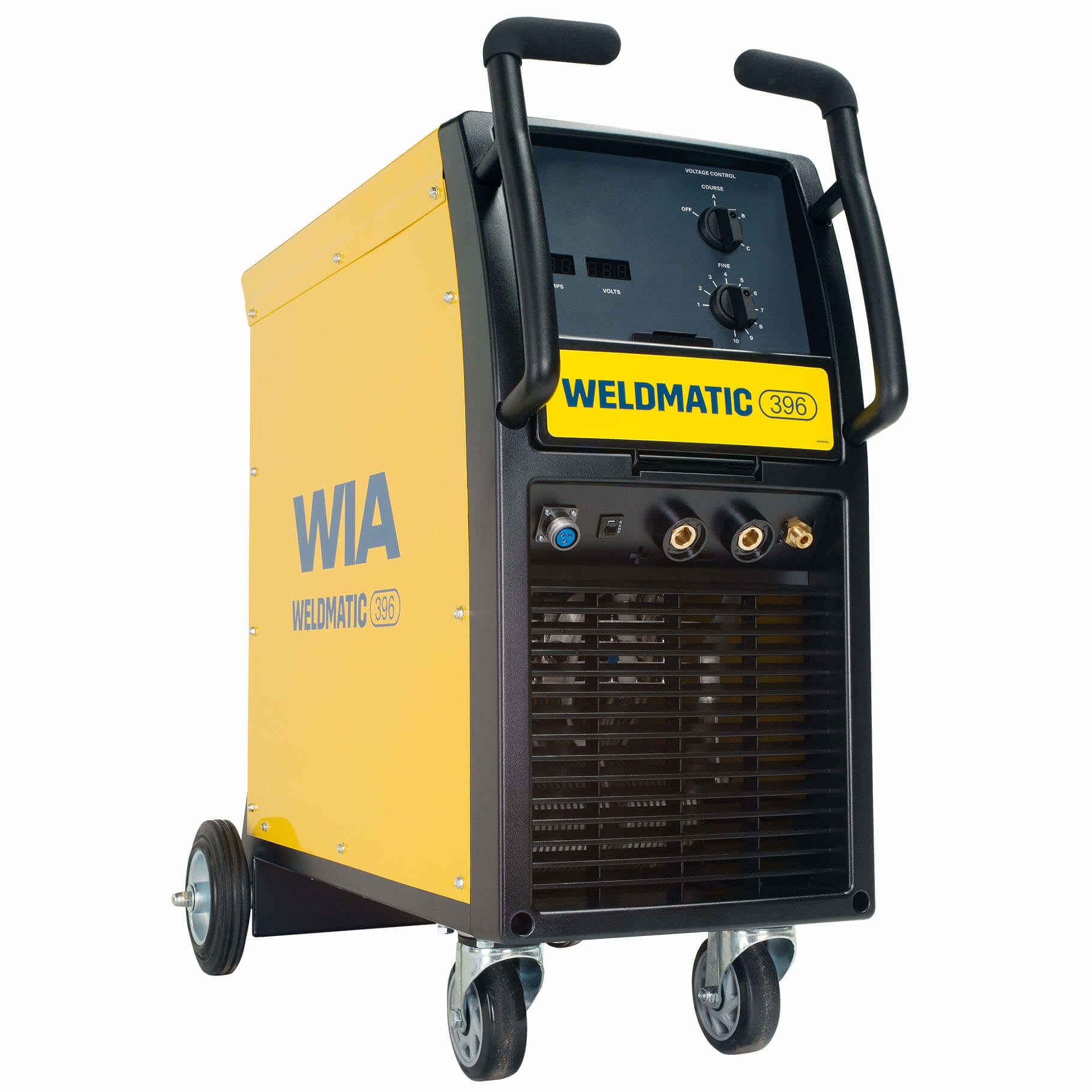

Weldmatic 396
Multi-Process Welder

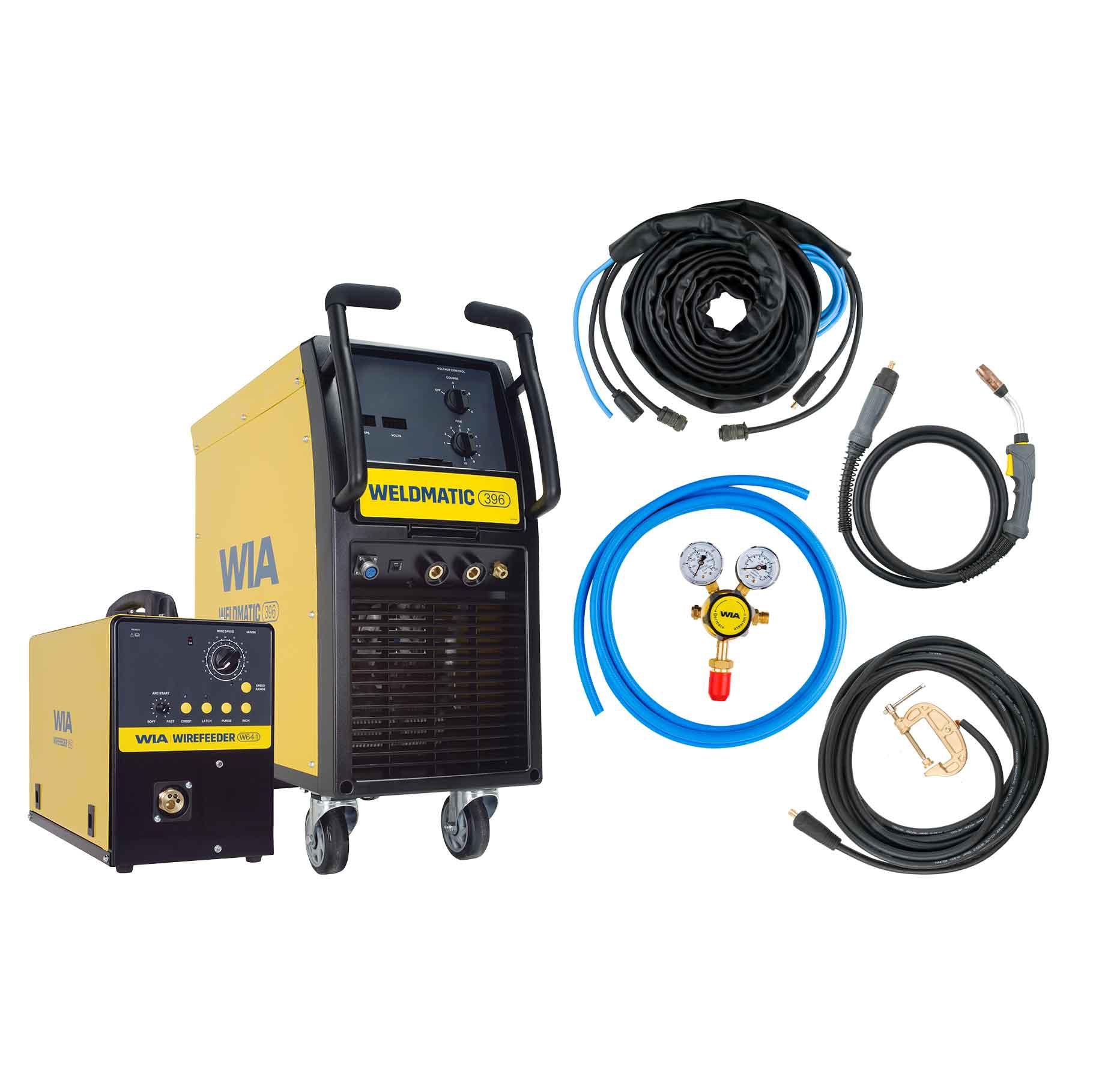

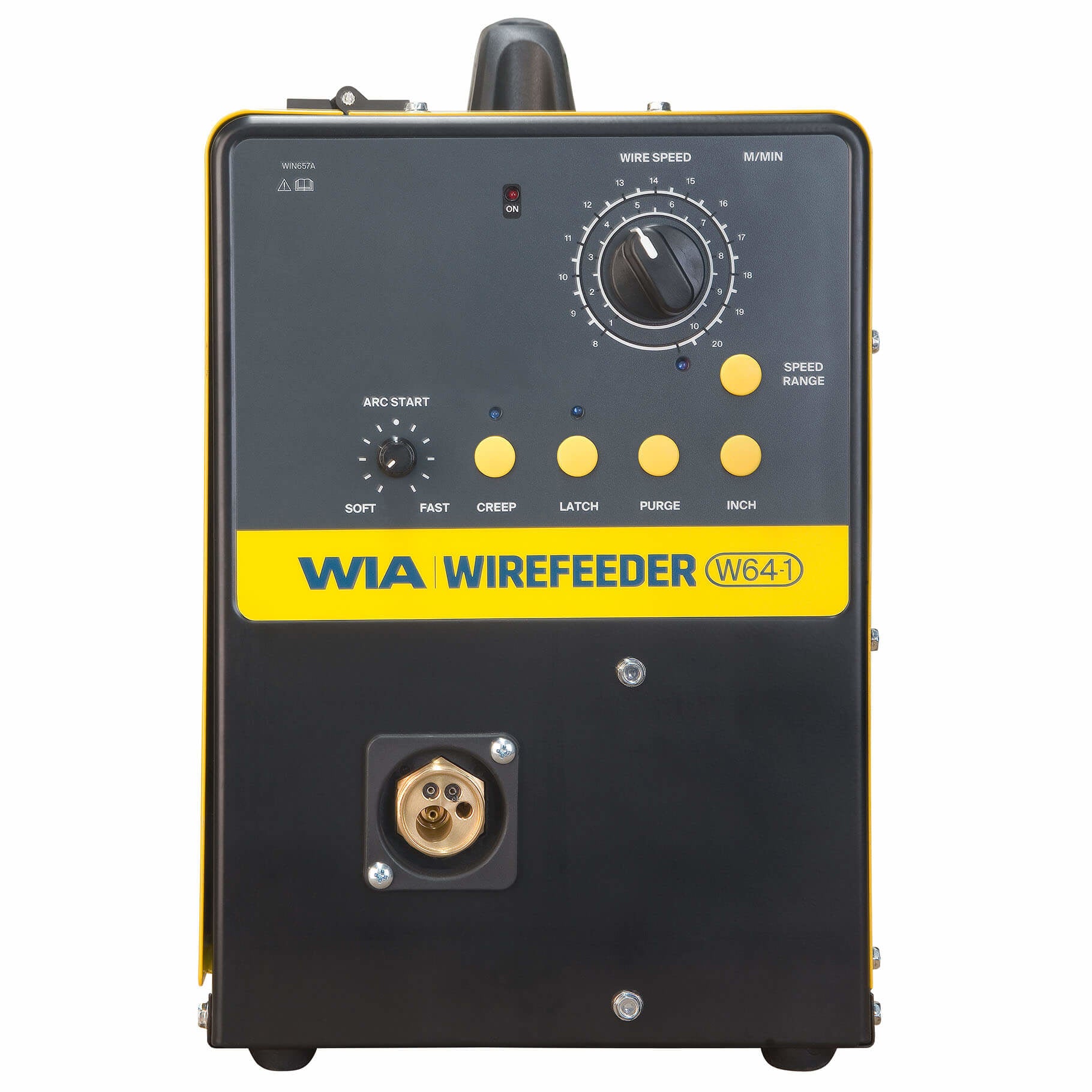

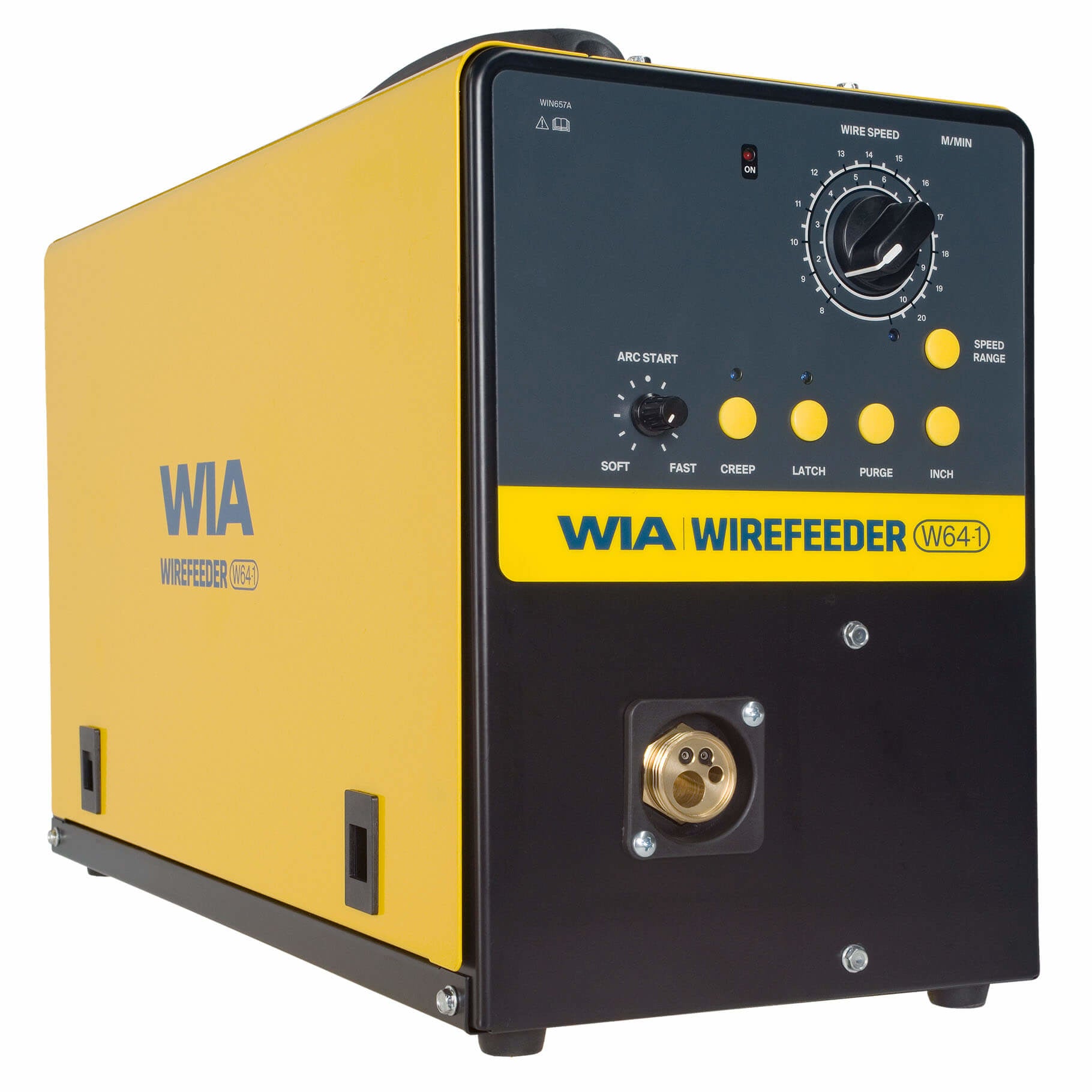

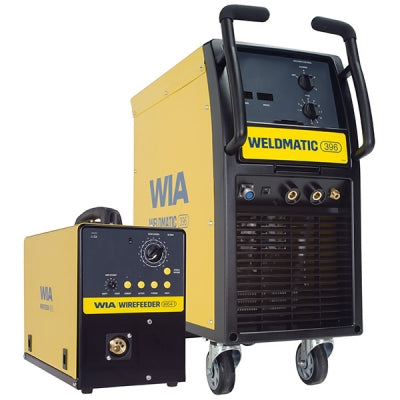

Ideal for medium to heavy and general industrial fabrication jobs, the Weldmatic 396 produces high quality weld results on steel, stainless steel and aluminium. Packaged with a separate wire feeder it provides extra flexibility for workshops and enables custom set up through arc start, wire speed, burn back, spot time, creep mode, pre and post gas settings.
Processes: MIG
- 396 A three phase MIG welder
- 395 A at 33.8 V 30% Duty Cycle
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Arc Start - Modifies arc starting condition, wire accelerates at different speed depending on application
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminium starts
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21 rated
- Generator compatible - 20 kVa
Machine Specification
Primary Voltage
415 VAC-50Hz
Rated Primary Current
15 Amps
Max Primary Current
27 Amps
Recommended Generator Power
20 kVa
Supply Plug
32 Amp
Weight
127kg
MIG Specification
Current Range
20A/15.5V-395A/33.8V
Rated Output @ 40°C (10min)
395A/33.8V @ 30%
280A/28V @ 60%
220A/25V @ 100%
Wire Size Range
0.6-1.6mm (Solid), 0.8-1.6mm (Cored)
Material Thickness Range
Welds up to 12mm+ steel plate, single pass
