Description

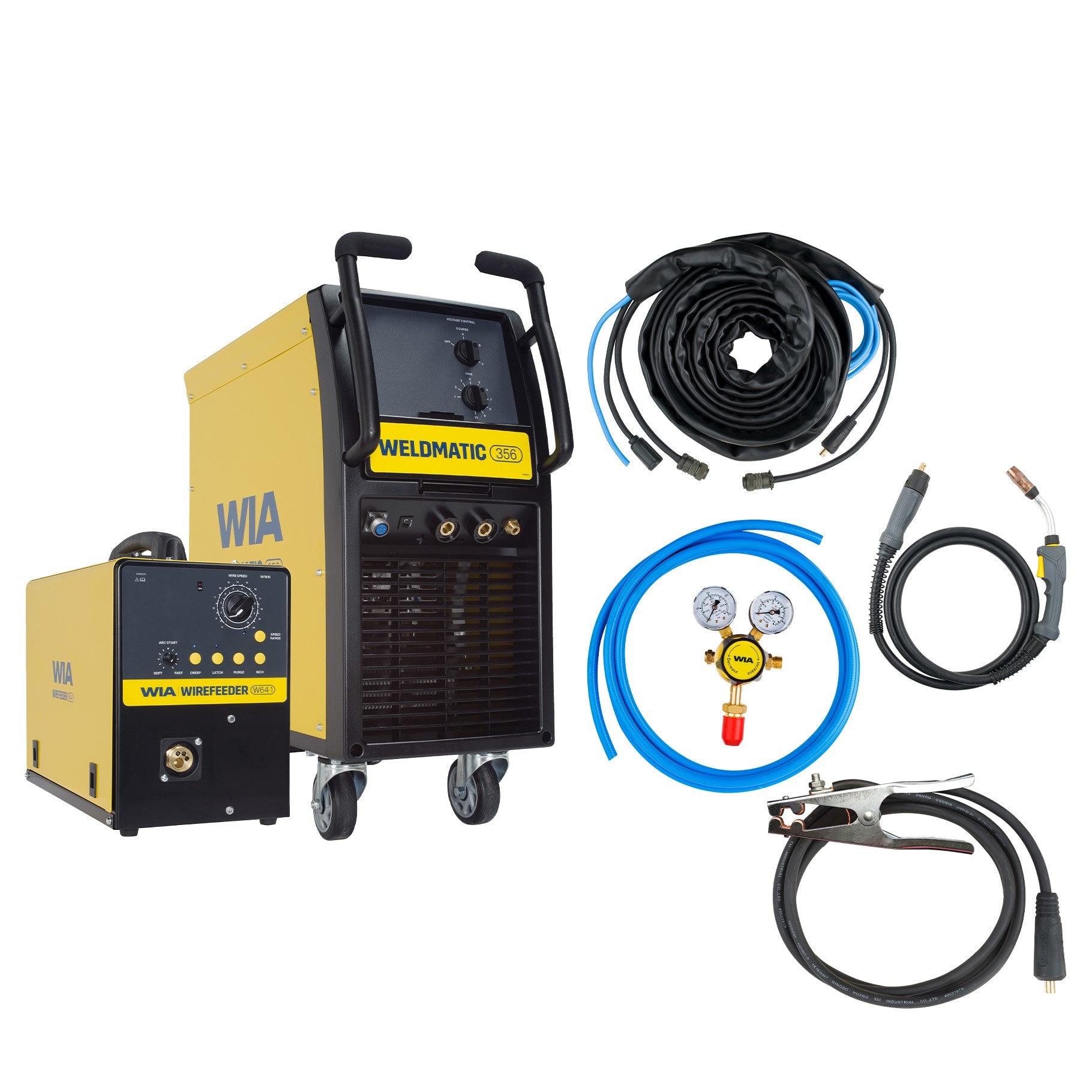

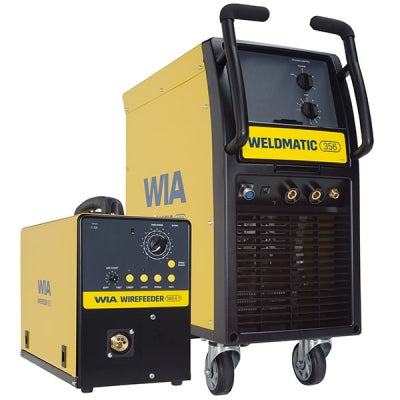

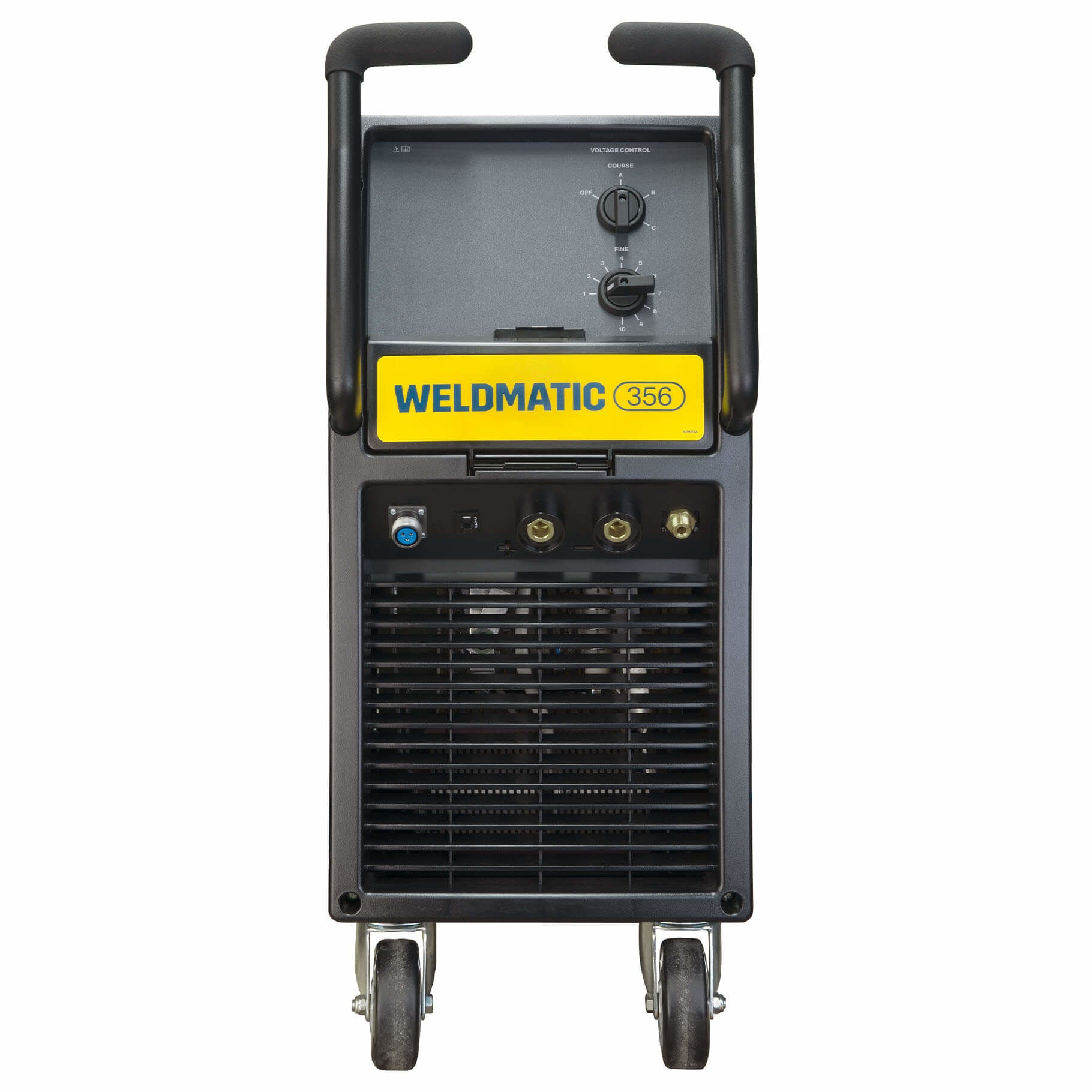

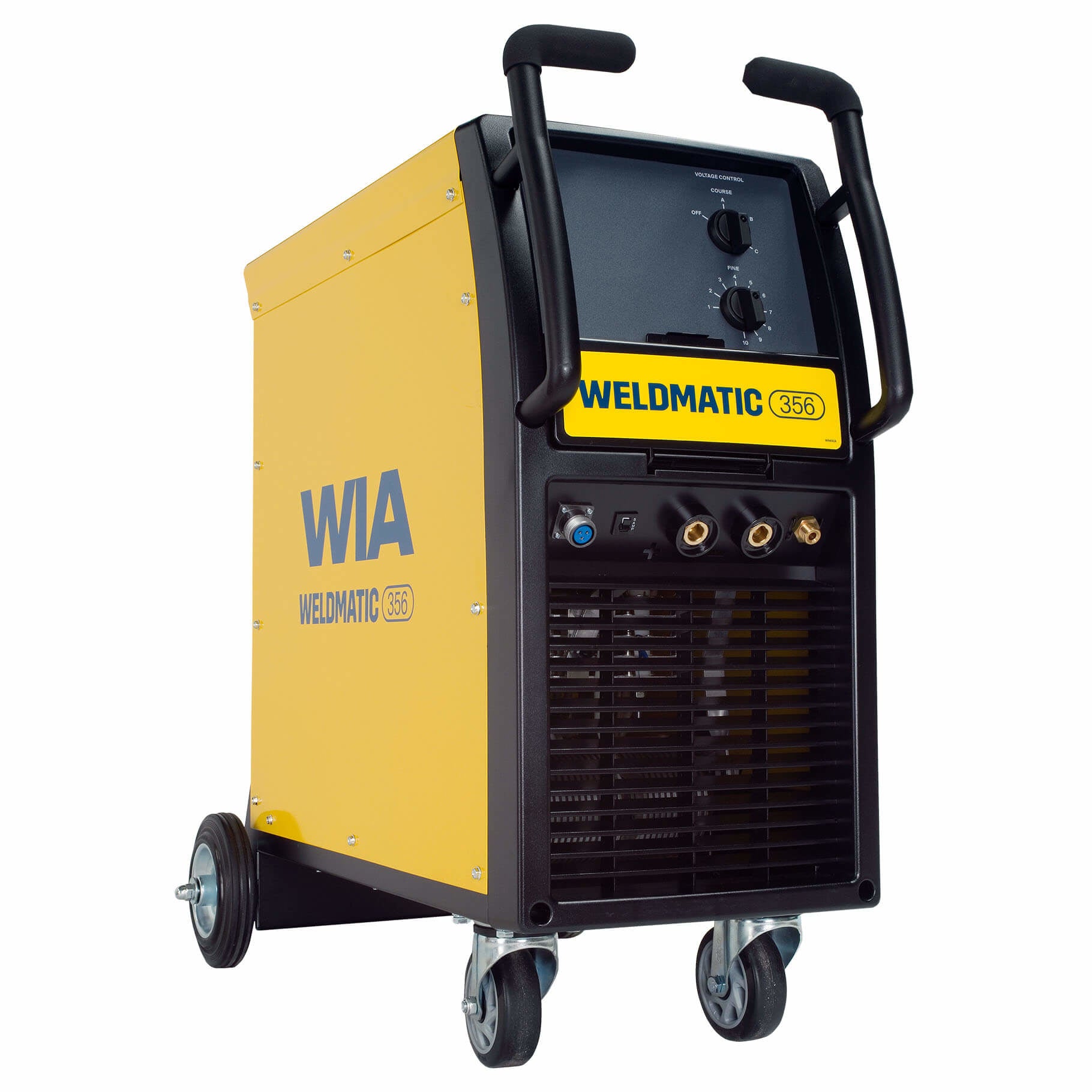

Weldmatic 356
The Perfect MIG Welder for Medium to Heavy Fabrication

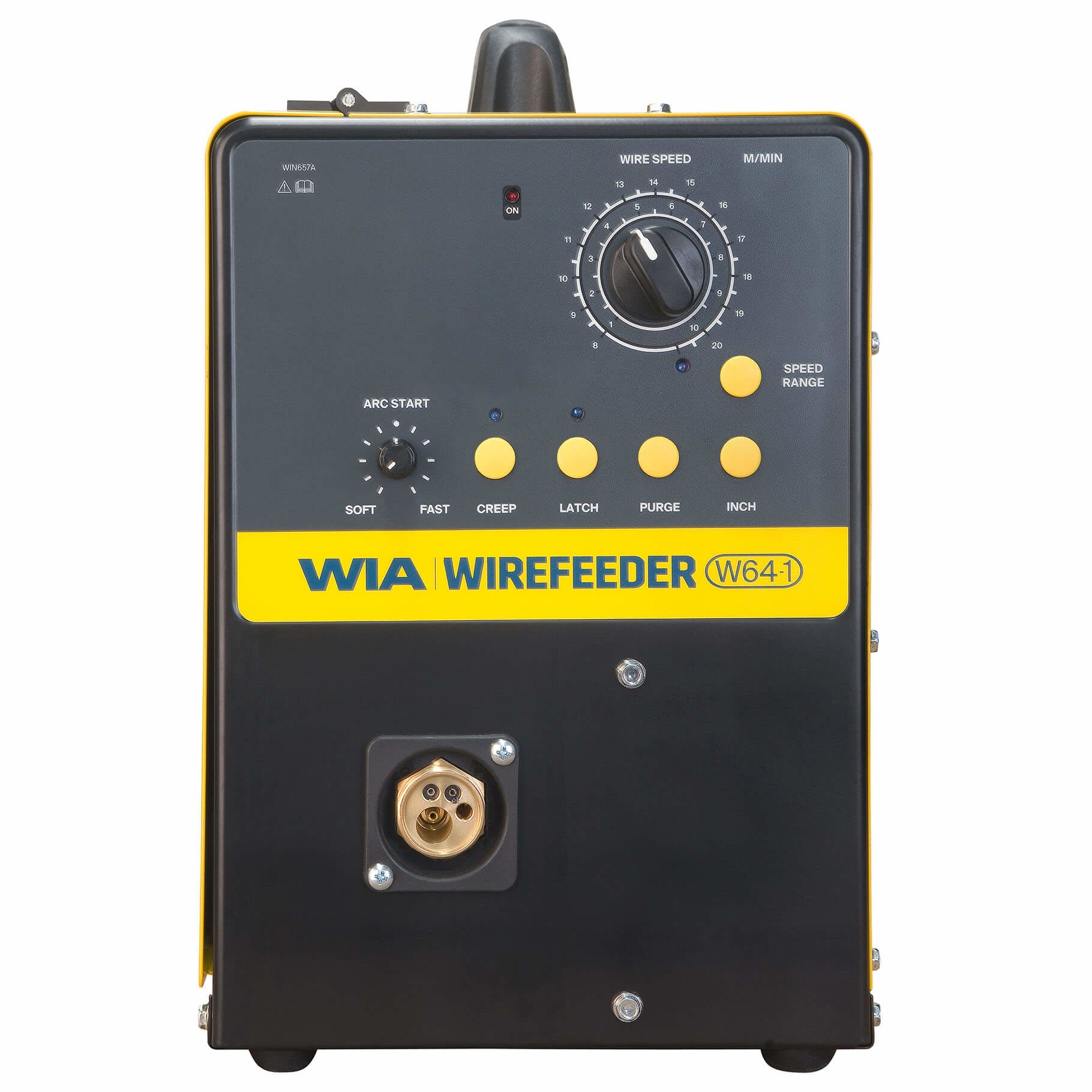

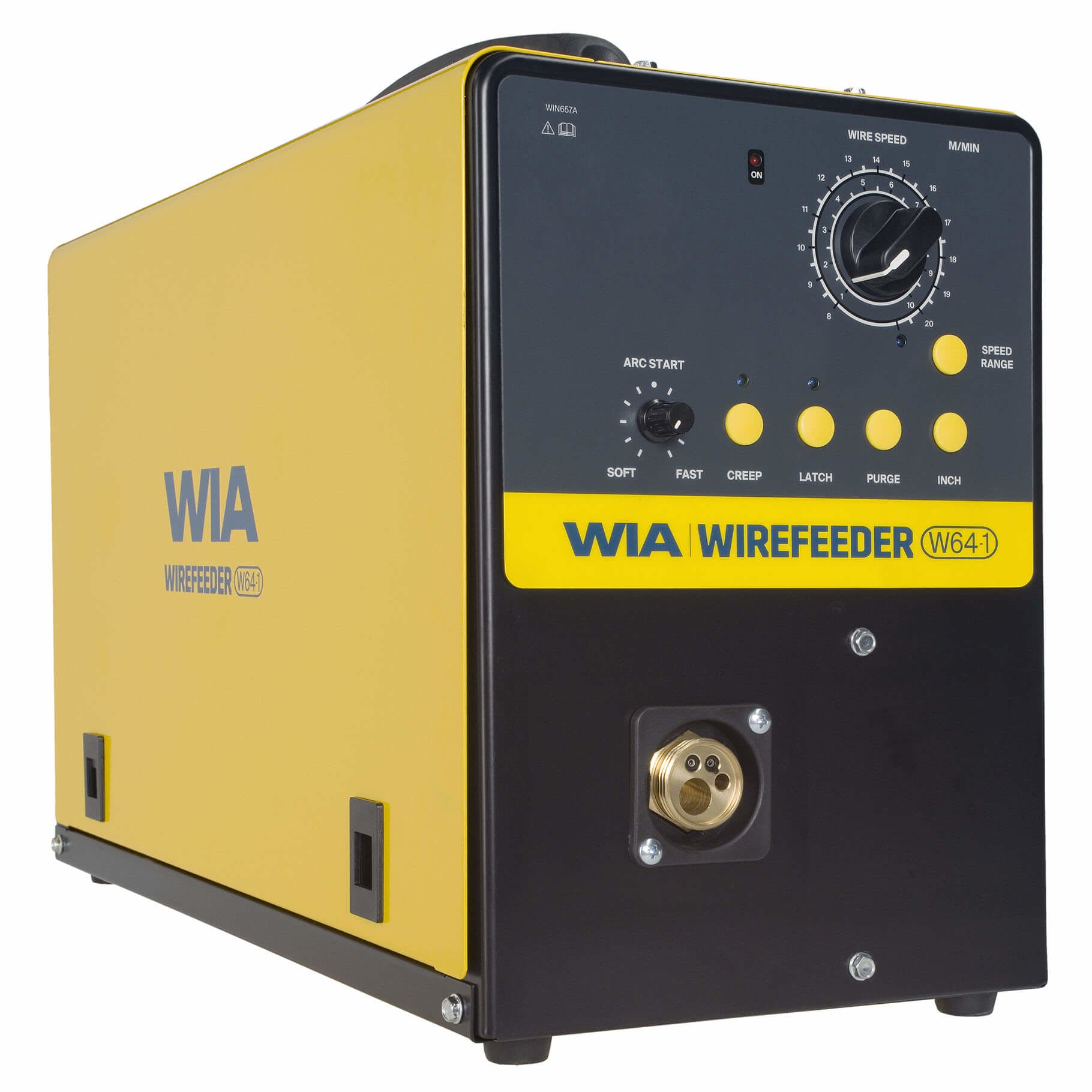

The Weldmatic 356 is the ideal choice for medium fabrication workshops and comes equipped with Fan-on-Demand™ which improves efficiency, reduces maintenance and provides a safer working environment. Packaged with a separate wire feeder the Weldmatic 356 provides extra flexibility for workshops and enables custom set up through arc start, wire speed, burn back, spot time, creep mode, pre and post gas settings.
- 356 A three phase MIG welder
- 355 A at 31.8 V 40% Duty Cycle
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Arc Start - Modifies arc starting condition, wire accelerates at different speed depending on application
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminium starts
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21 rated
- Generator compatible - 16.5 kVa
Machine Specification
Primary Voltage
415 VAC-50Hz
Rated Primary Current
15 Amps
Max Primary Current
23 Amps
Recommended Generator Power
16.5 kVa
Supply Plug
32 Amp
Recommended Generator Power
16.5 kVa
Weight
126kg
MIG Specification
Output Range
30A/15.5V-355A/31.8V
Rated Output @ 40°C (10min)
355A/31.8V @ 40%
290A/28.5V @ 60%
225A/25.3V @ 100%
Wire Size Range
0.6-1.6mm (Solid), 0.8-1.6mm (Cored)
Material Thickness Range
Welds up to 12mm+ steel plate, single pass
