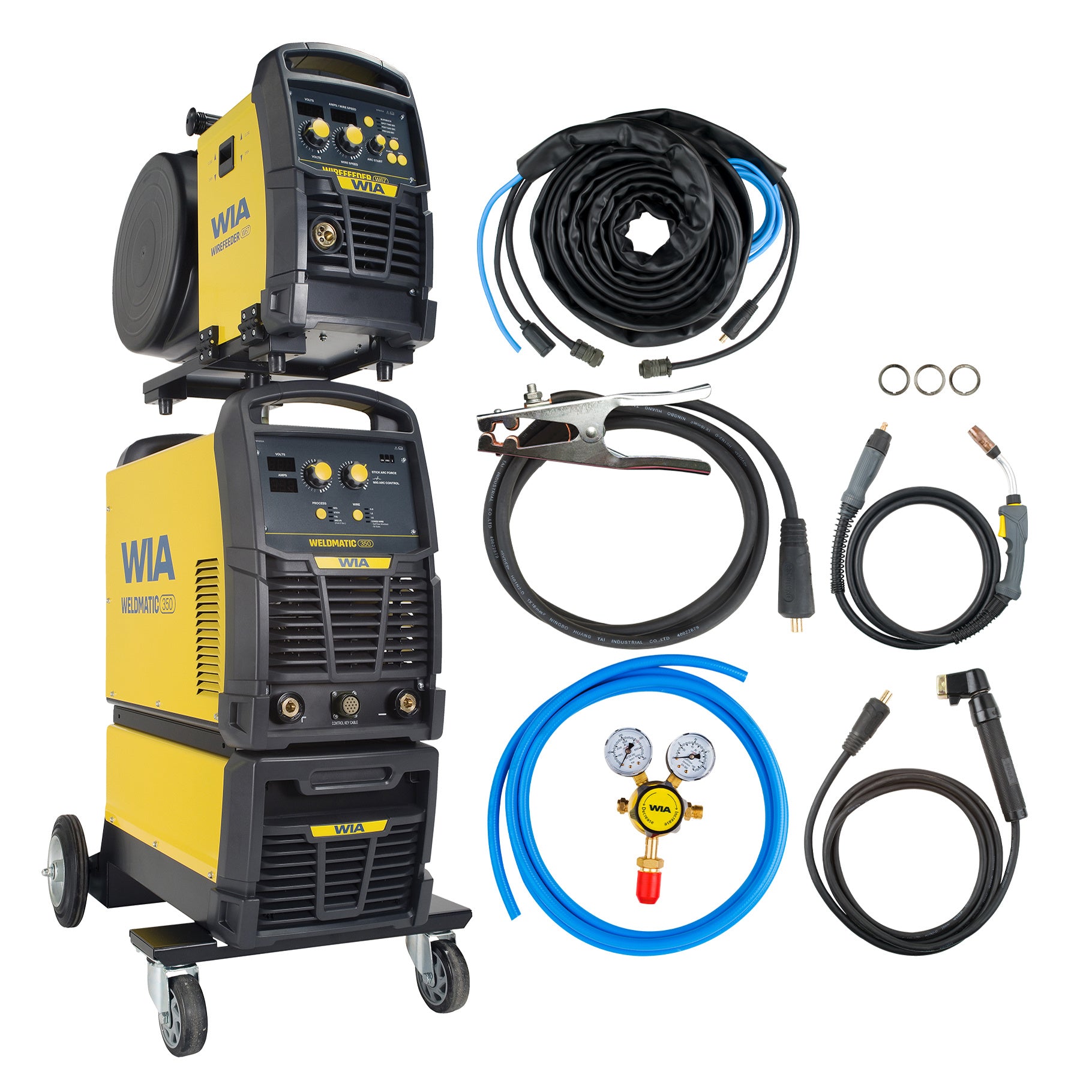

Weldmatic 350
A MIG Welder for Fabrication Applications
Packed with power, the Weldmatic 350 is robust and built to perform for professional fabrication applications. Capable of MIG, TIG and Stick welding, it offers optimal weld characteristics that provide high quality results.
Featuring Digital Volt and Amp meters, the 350 allows for easy and precise set up by retaining last weld information. Perfect for a workshop it comes packaged with a separate wire feeder for extra flexibility. Built for tough Australian conditions, and manufactured with 3 years warranty, the Weldmatic 350 offers reliability and performance that’s second to none.
Processes: Stick, MIG, TIG
- 350 A three phase MIG, Stick & TIG welder
- 350 A at 31.5 V 60% Duty Cycle
- Digital Meters - Easy to read and easy to adjust parameters
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminum starts
- Spot Timer - Provides short weld times for repetitive spot welds
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible – 25 kVa
Machine Specification
Primary Voltage
380/415 VAC - 50/60Hz
Rated Primary Current
19.4 Amps
Max Primary Current
25 Amps
Recommended Generator Power
25 kVa
Supply Plug
32 Amp
Weldable Materials
Steel, Stainless Steel, Aluminium
Stick Specification
Current Range
25A/21V-350A/34V
Rated Output @ 40°C (10min)
350A/34V @ 60%
271A/30.8V @ 100%
MIG Specification
Output Range
30A/15.5V-350A/31.5V
Rated Output @ 40°C (10min)
350A/31.5V @ 60%
271A/27.6V @ 100%
Wire Size Range
0.6/0.8/0.9/1.2mm
Material Thickness Range
Welds up to 12mm+ steel plate, single pass
TIG Specification
Current Range
15A/10.6V-350A/24V
Rated Output @ 40°C (10min)
350A/24V @ 60%
271A/20.8V @ 100%
