Description

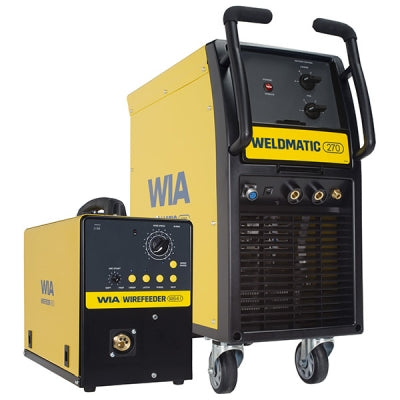

Weldmatic 270
A Single Phase MIG Welder Package
The Weldmatic 270 is the most powerful WIA single phase MIG welding machine. Ideal for light to medium industrial fabrication and rural workshops, the Weldmatic 270 is packed with professional features you’d expect in an industrial 3 phase MIG machine. The Weldmatic 270 is for serious welders who want results.
Featuring a Fan-on-Demand™ cooling system, the Weldmatic 270 improves efficiency, reduces maintenance and provides a safer working environment. Built with quality components and manufactured with 3 years warranty, the Weldmatic 270 can withstand tough Australian conditions.
Processes: MIG
- 270 A single phase MIG welder
- 270 A at 27.5 V 20% Duty Cycle
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Arc Start - modifies arc starting condition, wire accelerates at different speed depending on application
- Four geared wire drive - Provides a consistent, smooth, and strong drive for a variety of wires
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Spot Timer - Provides short weld times for repetitive spot welds
- Creep Mode - Provides slow wire speed until weld starts - ideal for aluminium starts
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 5kg and 15kg spools
- IP21 rated - For environmental/safety protection
- Generator compatible - 13.5 kVa
*For full rated output a 32 A plug is required with a 32 A circuit breaker.
Machine Specification
Primary Voltage
240 VAC-50/60Hz
Rated Primary Current
25.3 Amps
Max Primary Current
56 Amps
Recommended Generator Power
13.5 kVa
Supply Plug
15 Amp
Weight
115kg
MIG Specification
Output Range
30A/15.5V-270A/27.5V
Rated Output @ 40°C (10min)
270A/27.5V @ 20%
150A/21.5V @ 60%
120A/20V @ 100%
Wire Size Range
0.6/0.8/0.9/1.2mm
Material Thickness Range
Welds up to 8mm steel plate, single pass
