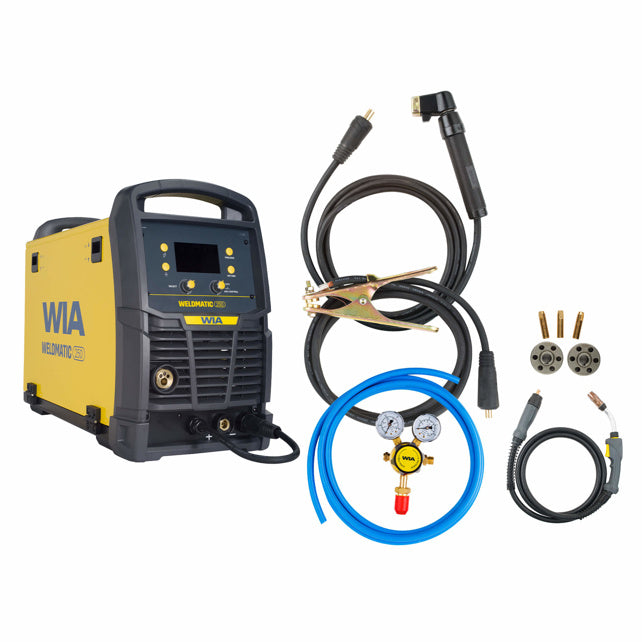

Weldmatic 250

MIG, Stick or TIG Weld with Ease

Portable but big on power, the Weldmatic 250 is capable of MIG, TIG and Stick welding and features a digital LCD interface for quick setup through pre-set parameters and memory selections. For the workshop or on-site, the Weldmatic 250 takes 5kg and 15kg spools making it perfect for larger welding jobs.

Built with quality components and manufactured with 3 years warranty, the Weldmatic 250 offers reliability and performance, making it the perfect powerful yet portable choice for regular welders.

Processes: Stick, MIG, TIG

*15 Amp plug supplied for commissioning only. For full rated output, a 20 A plug and supply is required with a 25 A circuit breaker.

  • 250 A single phase MIG, Stick & TIG welder
  • 250 A at 26.5 V 20% Duty Cycle
  • Portable - 37kg. Comes with 2 handles for a two person lift
  • Integrated wire feeder - Makes it compact and lightweight
  • LCD interface - Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
  • Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
  • Arc Force - Provides a more stable arc and prevents electrode sticking
  • Hot Start - For better, easier arc starting
  • Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
  • Suitable wires - Gas-shielded and gasless flux-cored wires
  • Spool capacity - Takes 5kg and 15kg spools
  • IP21S rating
  • Generator compatible - 14 kVa

Machine Specification

Primary Voltage

240 VAC-50/60Hz

Rated Primary Current

19.2 Amps

Max Primary Current

43 Amps

Recommended Generator Power

14 kVa

Supply Plug

15 Amp

Weldable Materials

Steel, Stainless Steel, Aluminium


Stick Specification

Current Range

20A/20.8V-200A/28V

Rated Output @ 40°C (10min)

200A/28V @ 20%
115A/24.6V @ 60%
90A/23.6V @ 100%

MIG Specification

Output Range

30A/15.5V-250A/26.5V

Rated Output @ 40°C (10min)

250A/26.5V @ 20%
144A/21.2V @ 60%
112A/19.6V @ 100%

Wire Size Range

0.6/0.8/0.9/1.2mm

Material Thickness Range

Welds up to 10mm steel plate, single pass

TIG Specification

Current Range

10A/10.4V-250A/20V

Rated Output @ 40°C (10min)

250A/20V @ 20%
114A/15.8V @ 60%
112A/14.5V @ 100%

3 Year Warranty
