Single Phase
15 Amp Plug
- Repair and Maintenance
- Light to Medium Fabrication
- Farming
- Building and Construction
- Automotive
Description
MIG, STICK OR TIG WELD WITH EASE WITH ONE SINGLE MACHINE.

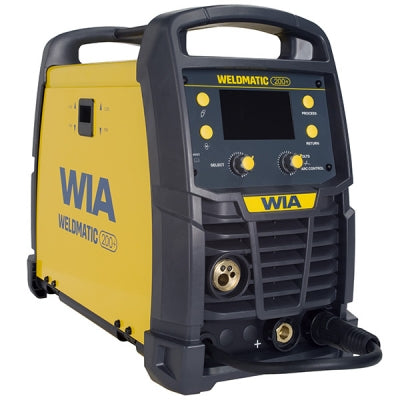

Lightweight and portable, the Weldmatic 200+ is capable of MIG, TIG and Stick welding and features an up-to-date and easy to use digital LCD interface for quick setup through pre-set parameters and memory selection. For the workshop or on-site, the Weldmatic 200+ takes 1kg and 5kg spools making it perfect for smaller welding jobs. Equipped with a new MIG gun the Weldmatic 200+ also provides better positioning and more flexibility when welding.
Built with quality components and manufactured with 3 years warranty, the Weldmatic 200+ delivers on reliability and performance making it the perfect portable choice for intermediate and professional welders.
- 200 A single phase MIG, Stick & TIG welder
- 200 A at 24 V 15% Duty Cycle
- Portable - Only 17kg
- Integrated wire feeder - Makes it compact and lightweight
- LCD interface - Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Burn Back - Controls how far the wire burns back to the tip on completion of the welding operation
- Suitable wires - Gas-shielded and gasless flux-cored wires
- Spool capacity - Takes 1kg and 5kg spools
- VRD (Voltage Reduction Device)
- IP23S rated
- Generator compatible - 12 kVa
VRD
Voltage Reduction Device
IP23S Rated
Built-In Thermal Protection
Prevents the machine from operating beyond its safe thermal zone.
Multi-Process Welding
MIG, Stick and TIG weld with this all in one machine.
Portable
Weighing only 17kg, the Weldmatic 200+ can go where you go.
Integrated Wirefeeder
Takes 1kg and 5kg spools. Suits both gas shielded and gasless wires.
LCD Interface
Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection.
Burnback
Controls how far the wire burns back to the tip on completion of the welding operation.
3 Year Warranty
| Primary Voltage | Rated Primary Current | Max. Primary Current | Recommended Generator KVA | Supply Plug | IP Rating | Weight | Standards Compliance |
|---|---|---|---|---|---|---|---|
| 240 VAC – 50/60 Hz | 13.4 Amps | 34.5 Amps | 12 kVA |
15 Amp |
IP23S |
17kg |
AS60974.1 & AS1674.2 (VRD) |
| Output Range | Rated Output @ 40°C (10min) | Wire Size Range | Material Thickness Range |
|---|---|---|---|
| 40A/16V-200A/24V |
200A/24V @15% |
0.6/0.8/0.9/1.2mm | Welds up to 8mm steel plate, single pass |
| Current Range | Rated Output @ 40°C (10min) |
|---|---|
| 10A/20.4V-180A/27.2V |
180A/27.2V @15% |
| Current Range | Rated Output @ 40°C (10min) |
|---|---|
| 10A/10.4V-180A/17.2V |
180A/17.2V @15% |
