Description

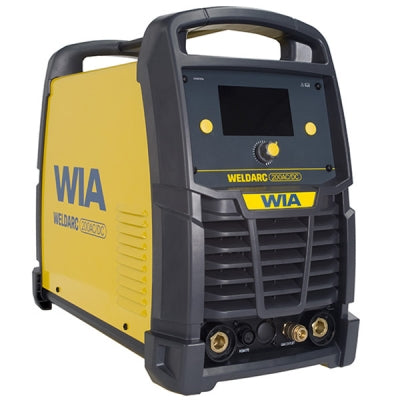

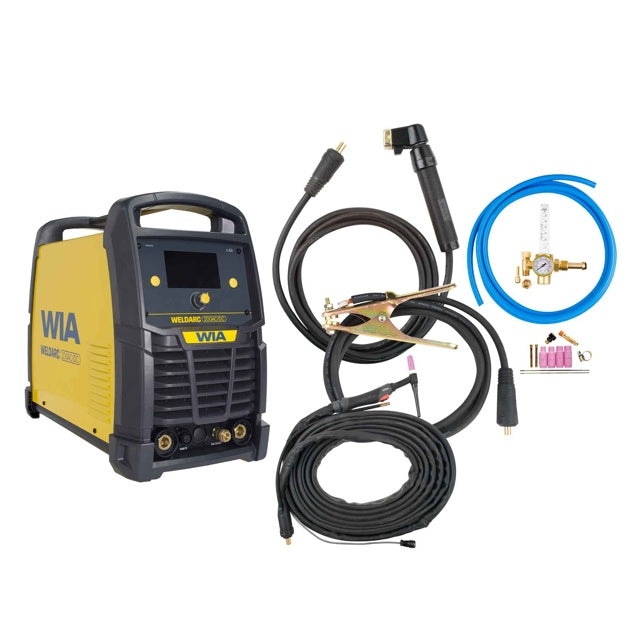

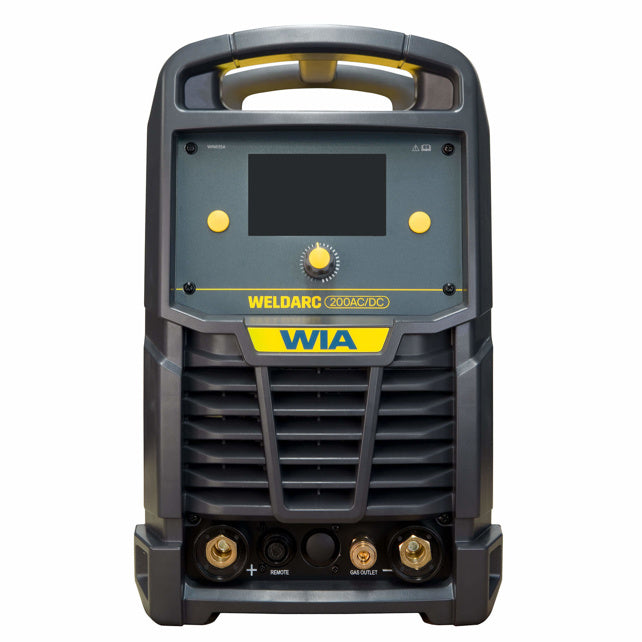

Weldarc 200 AC/DC
AC TIG Welding Capabilities
For intermediate to professional Stick/TIG welders looking for AC TIG capabilities for high precision aluminium welding. The Weldarc 200 AC/DC features a digital LCD interface for for quick setup through pre-set parameters and memory selection. The Weldarc 200 AC/DC also comes built with HF Start and Pulse TIG functionality and provides premium quality weld results. It also supports foot control adjustment for enhanced control capabilities.
Built with quality components and manufactured with 3 years warranty, the Weldarc 200 AC/DC is an easy choice for those looking for a well-priced, professional grade Stick/TIG welder that doesn’t compromise on results.
Processes: TIG, Stick
- 200 A single phase Stick & TIG welder
- 160 A at 26.4 V 30% Duty Cycle (Stick)
- Portable - Only 17kg
- LCD interface - Simple to navigate it offers quick and easy setup through pre-set parameters and memory selection
- AC TIG - For welding aluminium
- HF Start - For easy non-contact arc starting; Increases tungsten life; Reduces weld inclusions
- Pulse TIG - For greater heat control; Increases weld penetration, speed and quality
- Power Factor Correction - Smooths out the actual input current; Maximises efficiency when welding on long leads or from generators
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Arc Force - Provides a more stable arc and prevents electrode sticking
- Hot Start - For better, easier arc starting
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible - 10 kVa
Machine Specification
Primary Voltage
240 VAC-50/60Hz
Rated Primary Current
11 Amps
Max Primary Current
20 Amps
Recommended Generator Power
5kVa
Supply Plug
15 Amp
Weight
17kg
Stick Specification
Output Range
10A/20.4V-160A/26.4V
Rated Output @ 40°C (10min)
160A/26.4V @ 30%
114A/24.6V @ 60%
88A/23.5V @ 100%
TIG Specification
Output Range
AC:15A/10.6V-200A/18V
DC:10A/10.4V-200A/18V
Rated Output @ 40°C (10min)
200A/18V @ 30%
142A/15.7V @ 60%
110A/14.4V @ 100%
Material Thickness Range
Welds up to 8mm aluminiun plate, single pass
3 Year Warranty
