Description

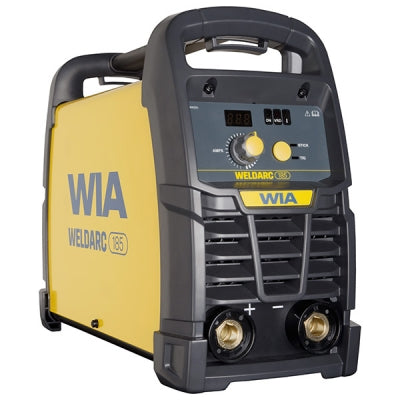

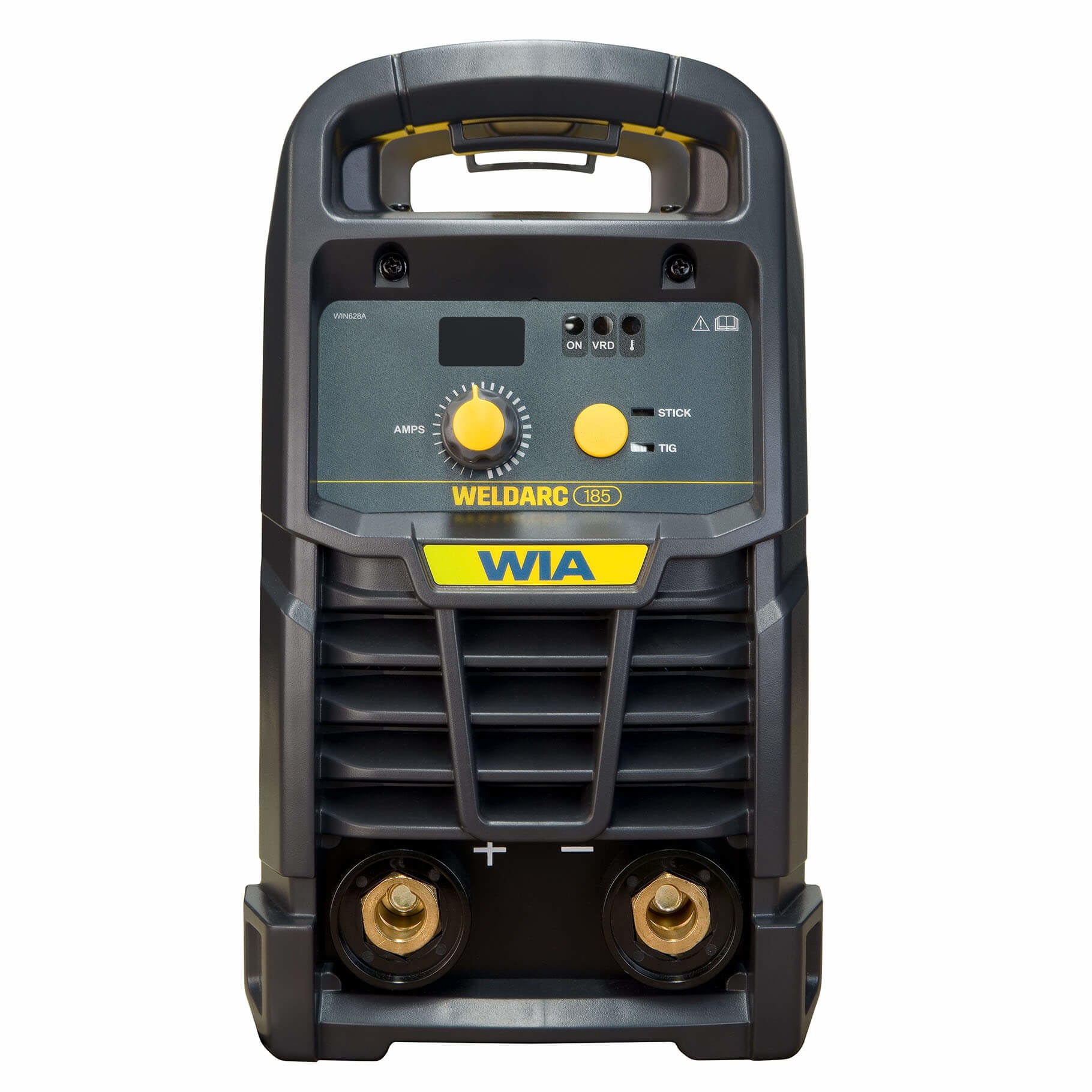

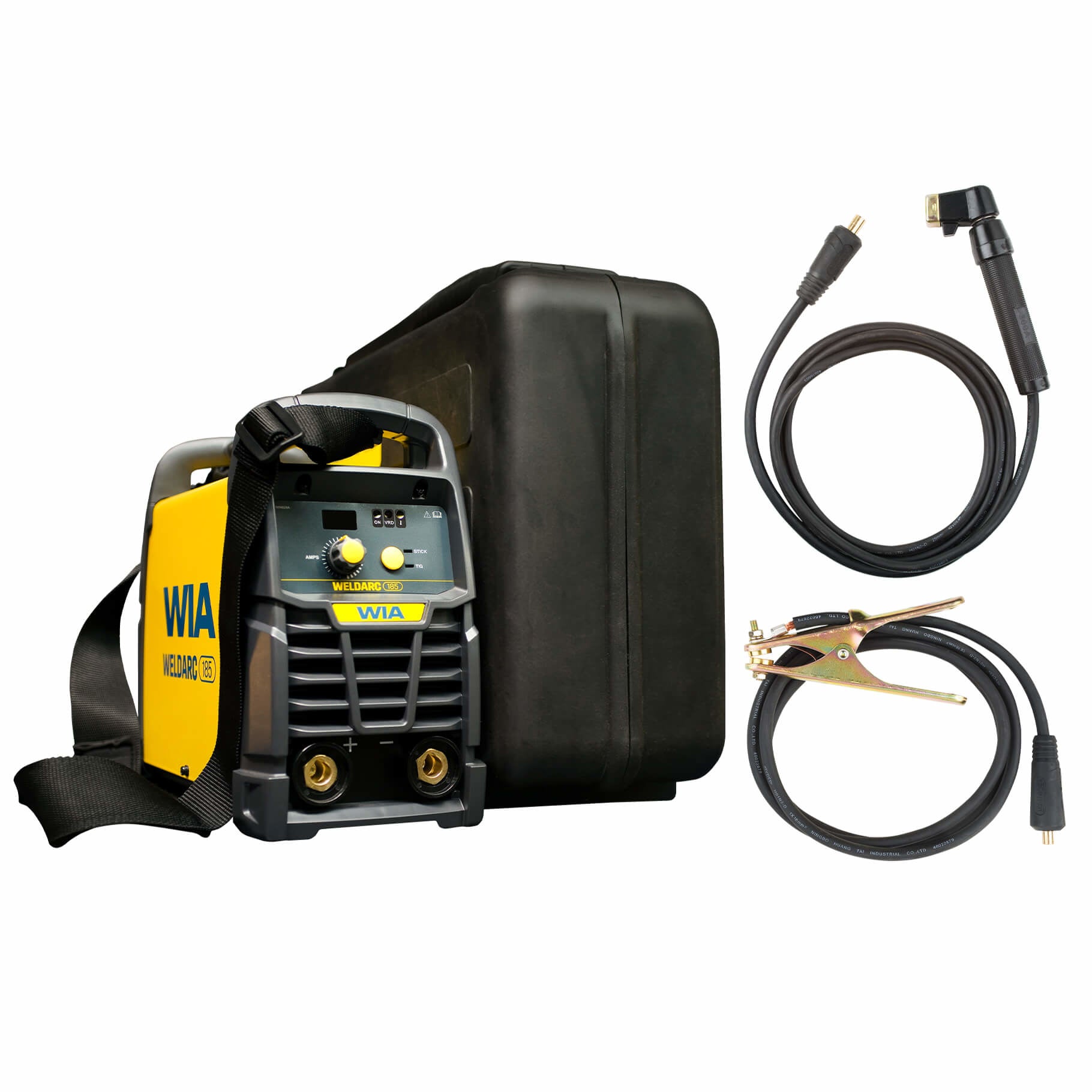

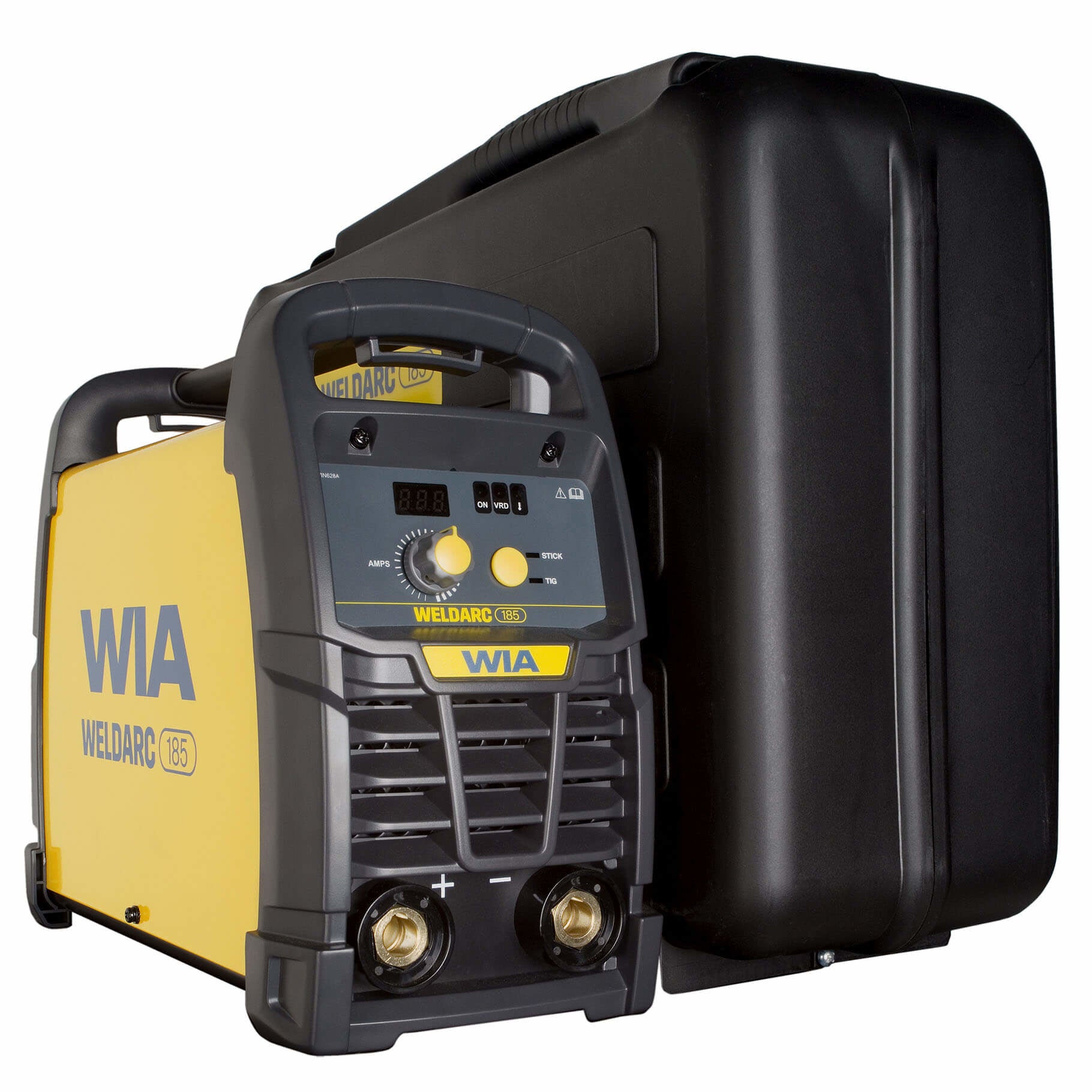

Weldarc 185
Stick / TIG Welder For the Workshop or On-Site
The Weldarc 185 is the perfect Stick/TIG welder for any intermediate welder. Only 8kg it's lightweight yet robust and can easily be transported from the workshop to on-site. Equipped with the latest technology, the Weldarc 185 offers power factor correction for maximum efficiency and is IP23S rated, providing extra protection for harsh environments. Built with quality components and manufactured to deliver the Weldarc 185 comes with 3 years warranty.
- 185 A single phase Stick/TIG welder
- 185 A at 27.4 V 25% Duty Cycle
- Portable - Only 8kg
- DC Lift Arc TIG Start - For smoother starting without sticking to the workpiece
- Digital Meters - Easy to read and easy to adjust parameters
- Power Factor Correction - Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Arc Force - Provides a more stable arc and prevents electrode sticking
- Hot Start - For better, easier arc starting
- VRD (Voltage Reduction Device)
- IP23S rated - Provides extra protection in harsh environments
- Generator compatible - 8 kVa
Machine Specification
Primary Voltage
240 VAC-50/60Hz
Rated Primary Current
12.5 Amps
Max Primary Current
25 Amps
Recommended Generator Power
6 kVa
Supply Plug
15 Amp
Weight
8kg
Stick Specification
Output Range
25A/21V-185A/27.4V
Rated Output @ 40°C (10min)
185A/27.4V @ 25%
119A/24.8V @ 60%
92A/23.7V @ 100%
Electrode Size Range
2.0 - 4.0mm
Material Thickness Range
Welds up to 10mm steel plate, single pass
TIG Specification
Output Range
25A/11v-185A/17.4V
Rated Output @ 40°C (10min)
185A/17.4V @ 25%
119A/14.8V @ 60%
92A/13.7V @ 100%
3 Year Warranty
