Description

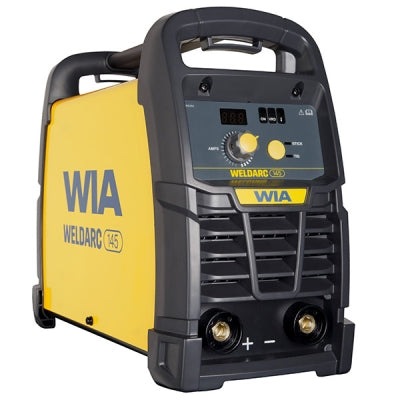

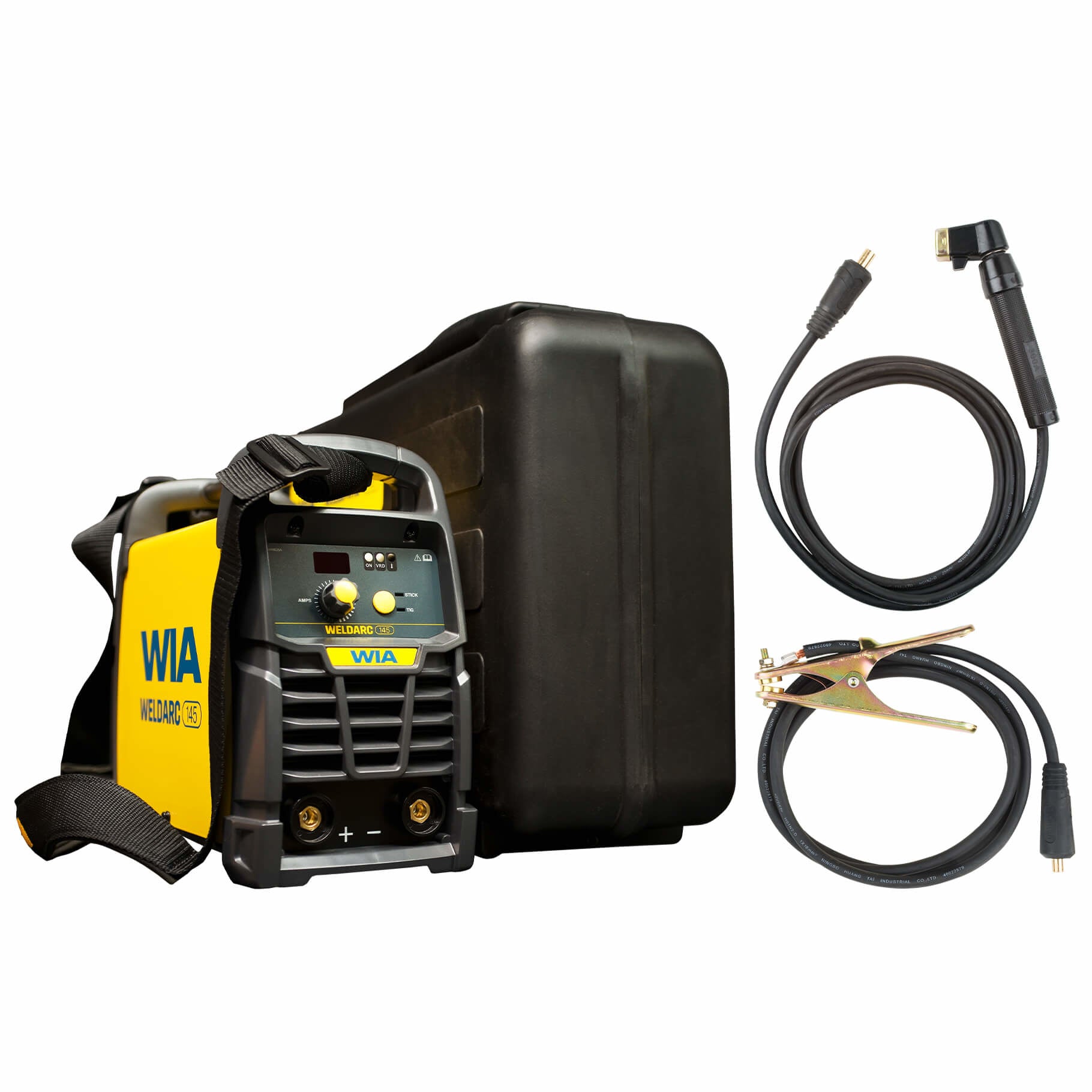

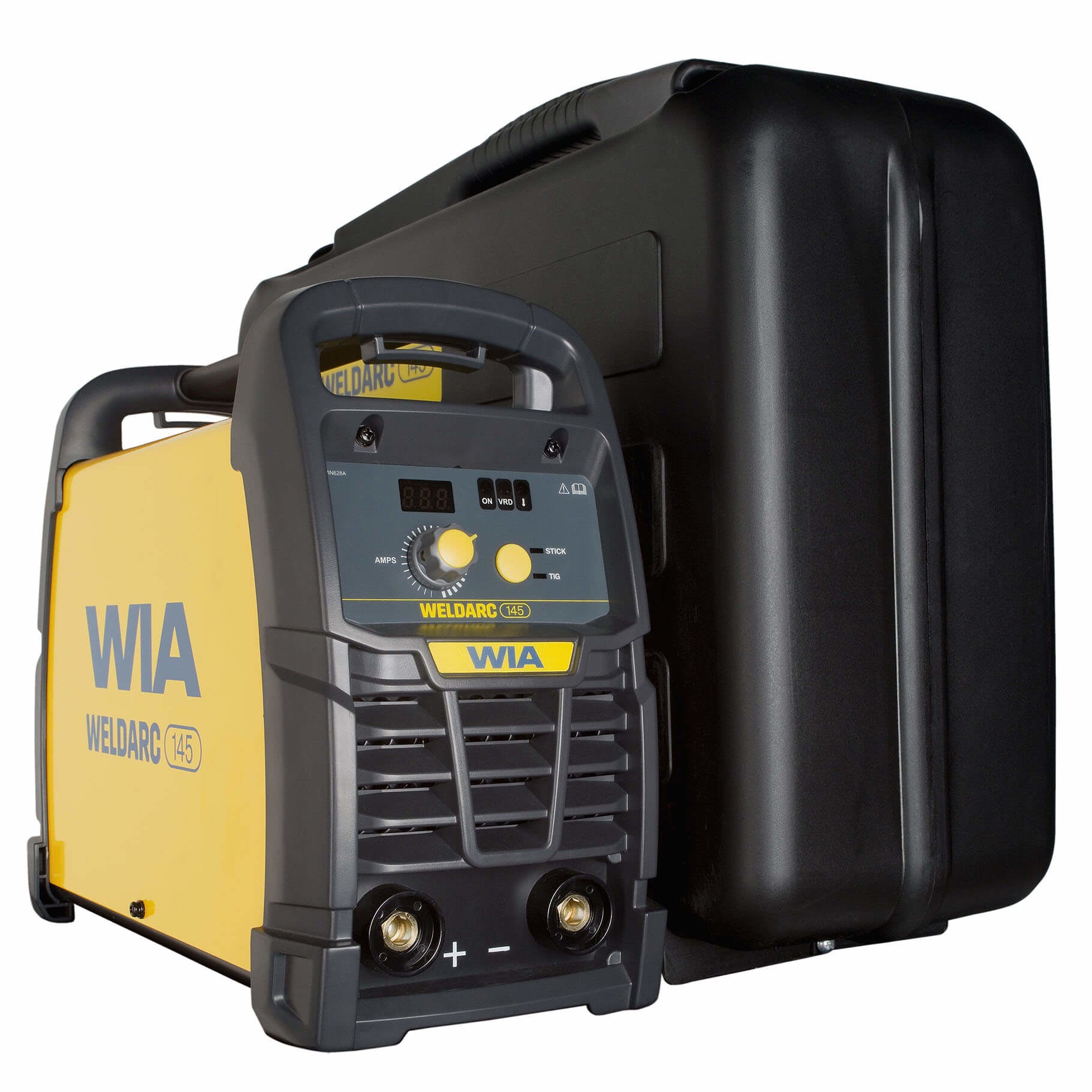

Weldarc 145
Portable Stick / TIG Welder
If you’re just starting out or have some welding experience, the Weldarc 145 welder is best for DC Stick and suitable for DC TIG. Best for general maintenance and repair work, this Weldarc 145 is robust, yet lightweight and portable making it easy to pick up and pack up. The Weldarc 145 features power factor correction for maximum efficiency and an IP23S rating, providing extra protection for harsh environments. Built with quality components and manufactured to deliver, the Weldarc 145 comes with 3 years warranty.
Processes: TIG, Stick
- 145 A single phase Stick/TIG Welder
- 145 A at 25.8 V 20% Duty Cycle
- Portable - Only 7kg
- Best for DC Stick.
- Suitable for DC TIG.
- DC Lift Arc TIG Start - For smoother starting without sticking to the workpiece.
- Digital Meters - Easy to read and easy to adjust parameters
- Power Factor Correction - Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Fan-on-Demand™ Cooling Fan - Reduces noise, energy use and contaminates
- Arc Force - Provides a more stable arc and prevents electrode sticking
- Hot Start - For better, easier arc starting
- VRD (Voltage Reduction Device)
- IP23S rated - Provides extra protection in harsh environments
- Generator compatible - 7 kVa
Machine Specification
Primary Voltage
240 VAC-50/60Hz
Rated Primary Current
8.5 Amps
Max Primary Current
19 Amps
Recommended Generator Power
4.6 kVa
Supply Plug
10 Amp
Weight
7kg
Stick Specification
Output Range
25A/21V-145A/25.8V
Rated Output @ 40°C (10min)
145A/25.8V @ 20%
74A/22.9V @ 60%
56A/22.2V @100%
Electrode Size Range
2.0 - 3.2mm
Material Thickness Range
Welds up to 8mm steel plate, single pass
TIG Specification
Output Range
25A/11V-145A/15.8V
Rated Output @ 40°C (10min)
145A/15.8V @ 20%
74A/12.9V @ 60%
56A/12.2V @ 100%
3 Year Warranty
