Description

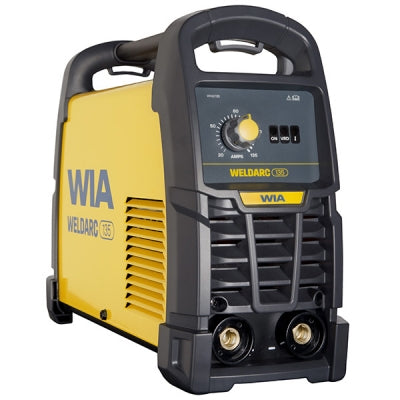

Weldarc 135
Transportable and Easy to Use Stick Welder
The perfect Stick welder if you’re just starting out, the Weldarc 135 is the smallest in the WIA range. But don’t let the size fool you. Simple in its design, yet it offers professional features including Arc Force, which allows the 135 to weld with ease and produce quality results. Comes with 3 years warranty.
Processes: Stick
- 135 A single phase Stick welder
- 135 A at 25.4 V 20% Duty Cycle
- Portable - Only 4kg
- Built-In Thermal Protection - Prevents the machine from operating beyond its safe thermal zone
- Arc Force - Provides a more stable arc and prevents electrode sticking
- Hot Start - For better, easier arc starting
- VRD (Voltage Reduction Device)
- IP21S rated
- Generator compatible – 7 kVa
Machine Specification
Primary Voltage
240 VAC-50/60Hz
Rated Primary Current
9.9 Amps
Max Primary Current
22.2 Amps
Recommended Generator Power
7 kVa
Supply Plug
10 Amp
Weldable Materials
Steel, Stainless Steel, Cast Iron
Stick Specification
Current Range
20A/20.8V
135A/25.4V
Rated Output @ 40°C (10min)
135A/25.4V @ 20%
78A/23.1V @ 60%
60A/22.4V @ 100%
Electrode Range Size
2.0 - 3.2mm
Material Thickness Range
Welds up to 6mm steel plate, single pass
3 Year Warranty
