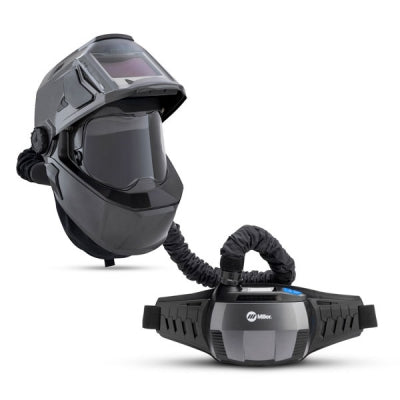

Vortex HDV PAPR Respiratory Protection

PAPR Respiratory Protection

Miller's Vortex HDV PAPR system provides the next level of welding respiratory protection for the most demanding applications. Lightweight, it increases wearability and features 6 air distribution points and 3 cooling speeds to keep you cooler on the job. Plus, with Miller’s exclusive HDV Lens Technology and ClearLight™ Lens Technology, you’ll get a sharper, clearer, more detailed view with minimal distortion so that you can see more every time you weld.

6 Air Points & 3 Air Speeds

For maximum cooling Miller’s Vortex PAPR system offers targeted air placement and different air speeds for various work conditions.

Lightweight Low-profile Blower Design

Extends wearability without interfering with surroundings.

ClearLight™ 2.0 Lens Technology

Miller’s Vortex PAPR System provides advanced high-definition optics for the most realistic view that’s clearer and brighter before, during and after every weld.

LCD Display

Allows users to see fan speed, filter time, battery level and current time.

Huge 174 x 126mm Integrated Grind Shield

Provides a clear view for grinding and other tasks increasing helmet-on-time, and decreasing the potential for eye injuries.

HDV Lens Technology

Miller's Vortex PAPR System provides a high-definition sharp detailed view of the weld pool with minimal distortion.

X-Mode™ Technology

Exclusive to Miller, X-Mode™ Technology electromagnetically senses the weld to eliminate sunlight interference and continuously detects the arc even if sensors are blocked. Ideal for outdoor, low amp tig and out of position welding.

InfoTrack™ Technology

Provides memory, arc time and arc count functions that allows the weld operator to store favourite settings. Plus, it keeps track of weld time and arc starts.

2.5 Light State

Allows operators to keep their hood down between welds, improving safety and productivity.

Specifications

PAPR Specification

Size (Blower Assembly)

210 x 178 x 76mm

Weight (Blower Assembly, Filters, Belt Shoulder Straps and Battery)

1362g

Air Filter Assembly

Spark guard screen, foam prefilter, and particulate (HEPA) filter - down to 0.3 micrometers in size

Air Flow

Low Speed: 6.18+ CFM (175+ LPM)
Medium Speed: 6.89+ CFM (195 LPM)
High Speed: 7.59 CFM (215 LPM)

Operating Temperature

-5 to 55°c

Storage Temperature

-10 to 80°c

Battery Type

Rechargeable lithium 14.8V, 3A

Battery Charging Time

About 3 hours

Battery Life

500 charges - run time dependent on air flow rate and filter load

Belt Size

711 to 1397mm

Standards

AS/NZS 1716.2012

Protection Level

Class 2 particulate filter meets AS/NZ1716:2012 standards

Warranty

1 Year Warranty (Blower Unit)

Ultra HDV Helmet Specification

Viewing Area

97 x 60mm

Cartridge Size

114 x 120 x 9.5mm

Modes

X-Mode™️, Weld, Cut, Grind

X-Mode™️

Shade 8 - 12.5

Grind Mode

Shade 2.5

Cut Mode

Shade 5 - 8

Weld Mode

Shade 8 - 12.5

Switching Speed (Light to Dark)

1/25,000 sec

Delay Speed (Dark to Light)

0.1 - 1.0 sec

Arc Sensors

Optical Grade

EN379 1/1/1/2

Weight

709g

Power

CR2450 lithium battery and solar assist

On/Off Control

Automatic on, off after 45 minutes

Operating Temperature

-10 to 55°c

Australian Standards

AS/NZS 1338.1 (Auto-Darkening)
AS/NZS 1337.1B (High Impact)

Warranty

3 Years (Auto-Darkening lens only)

Resources

Vortex HDV PAPR System Product Manual

Vortex HDV PAPR System Spec Sheet

Vortex HDV PAPR System Brochure
