Description
VIPER MULTI 135 MIG/TIG/STICK WELDER
- Synergic MIG controls for quick and easy weld setups
- 3-in-1 multi-process machine so you can MIG, TIG & STICK
- 10 amp plug, so you can use it with any domestic outlet
PACKAGE INCLUDES

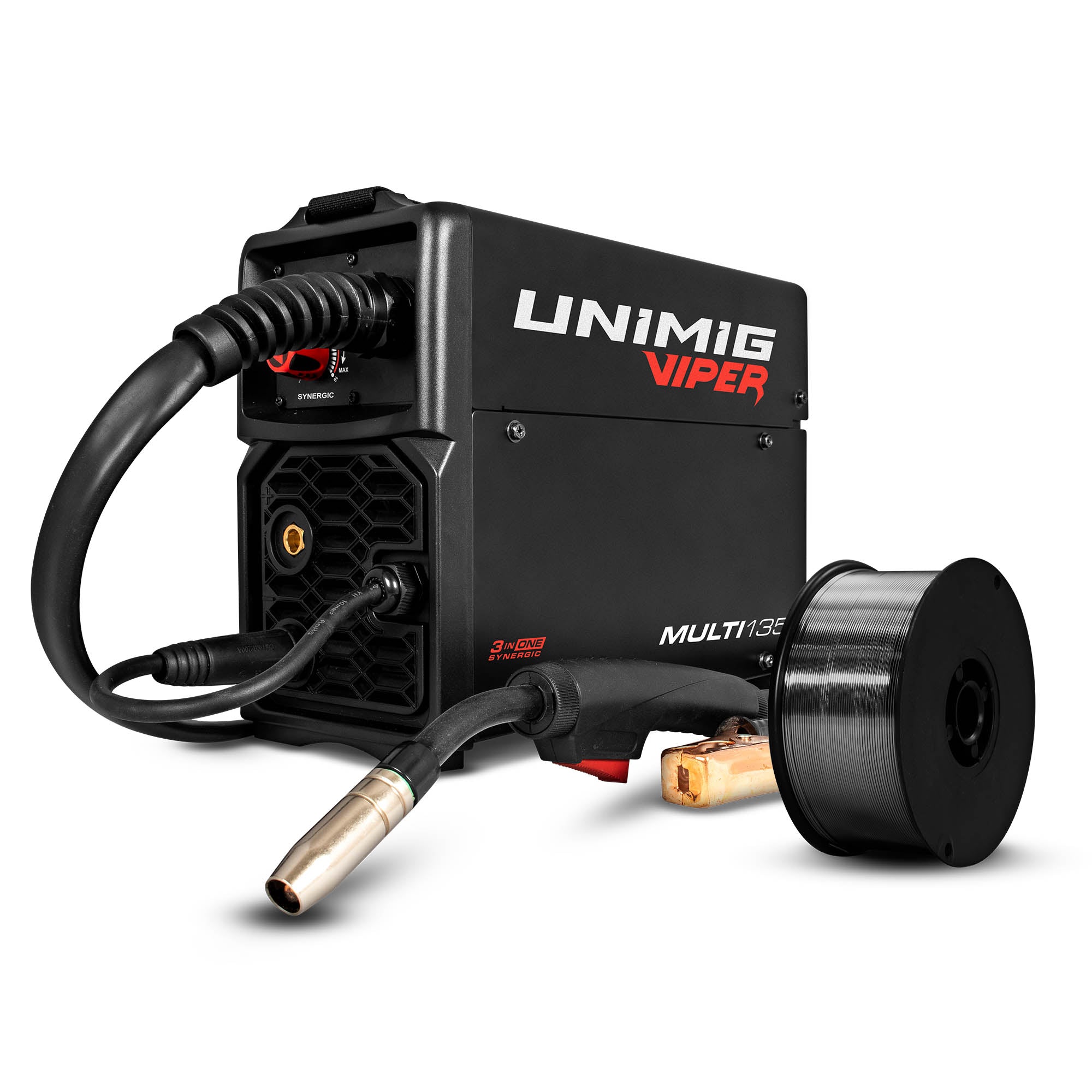

- VIPER MULTI 135 MIG/TIG/STICK Welder
- 2m Direct Connect MIG Torch
- 2m Earth Clamp & Lead
- Electrode Holder
- 2m Gas Hose Complete with fittings
- 1kg E71T-GS 0.8mm Gasless Wire
- Operating Manual
10 AMP PLUG
CONNECT TO ANY STANDARD OUTLET.
GAS & GASLESS MIG
MILD STEEL.
SYNERGIC MIG CONTROL
TAKE THE GUESSWORK OUT OF SETUP
3 IN 1 MULTIPROCESS
WELD IN MIG, TIG & MMA
SYNERGIC MIG CONTROL

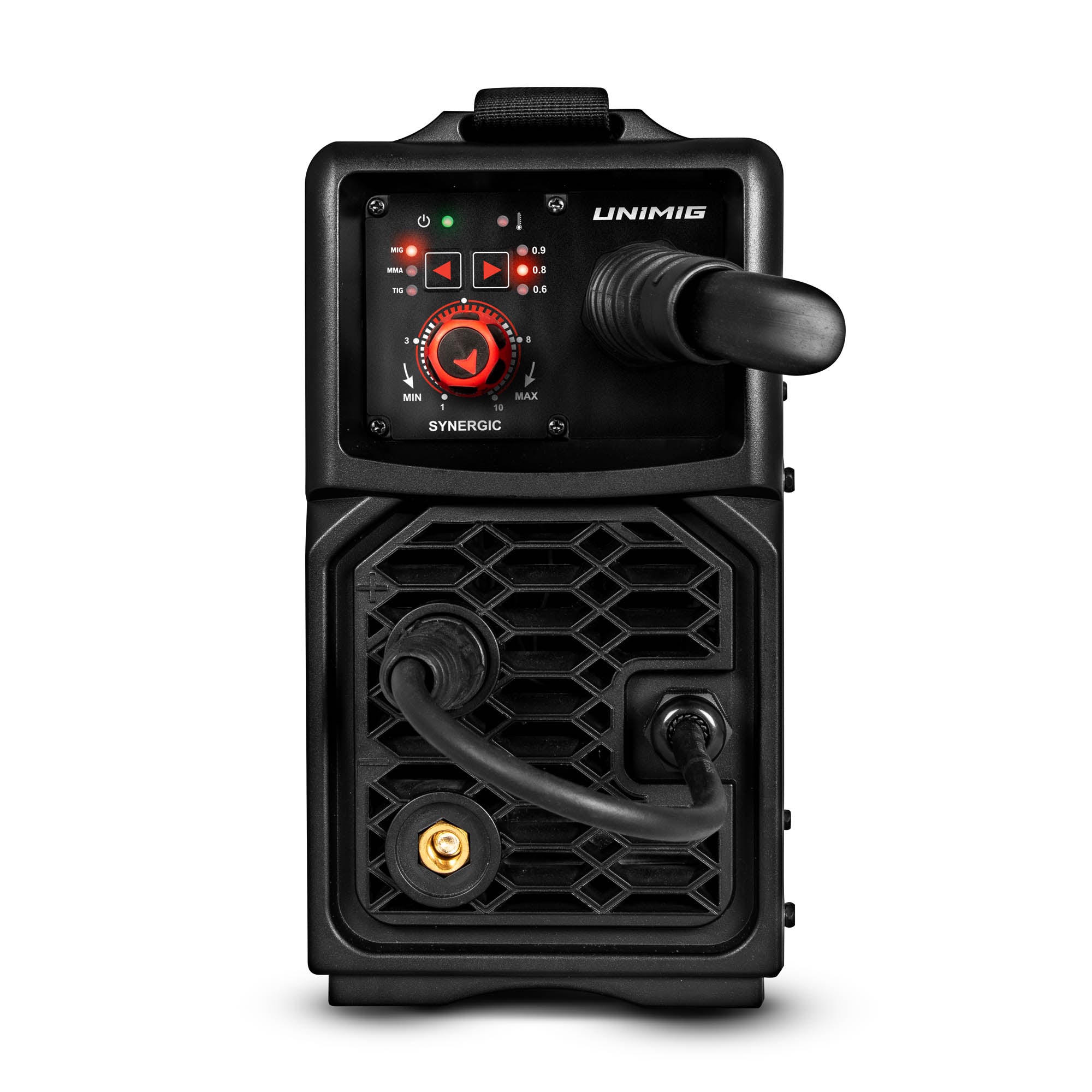

The clever Synergic MIG control takes the guesswork out of your settings. Simply select your wire size and adjust the Synergic power knob to the thickness of your material. The program works with 0.6, 0.8 and 0.9mm mild steel, stainless steel & flux-cored wires.
10 AMP PLUG
Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
GAS & GASLESS MIG
This machine supports both gas-shielded MIG and gasless MIG wire, meaning you can easily run mild steel, stainless steel & flux-cored MIG wire.
LIGHTWEIGHT & PORTABLE
Weighing just over 5kg, the VIPER MULTI 135 is ready to go anywhere you need it. Also included is a shoulder strap for extra comfort and portability.
Multi-Process Welding
This three-in-one machine, lets you perform MIG, TIG and STICK welding all on one machine. There is no need to swap between machines, saving you time and setup.
MACHINE SPECIFICATIONS
240V Single Phase
10 AMP
4.15
8.4
40/16V-135A/21V
68
IP21S
H
0.68
8.0
10/25
AS/NZ60974-1
Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
2
MIG SPECIFICATIONS
40-135A
15% @ 135A, 60% @ 65A, 100% @ 50A
0.6-0.9mm
1kg
1-6mm
TIG SPECIFICATIONS
DC Lift Arc
20-120A
15% @ 120A, 60% @ 60A, 100% @ 45A
1-6mm
STICK SPECIFICATIONS
20-120A
15% @ 120A, 60% @ 60A, 100% @ 45A
2.5-3.2mm
1-6mm
SIZE & WEIGHT
353x132x250mm
5.2kg
MACHINE FEATURES
Standard
YES
Over Temperature Warning
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 2 year warranty on the VIPER MULTI 135*.
UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well.UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.
UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.
*Please note warranty only applies to the power source only
