Description

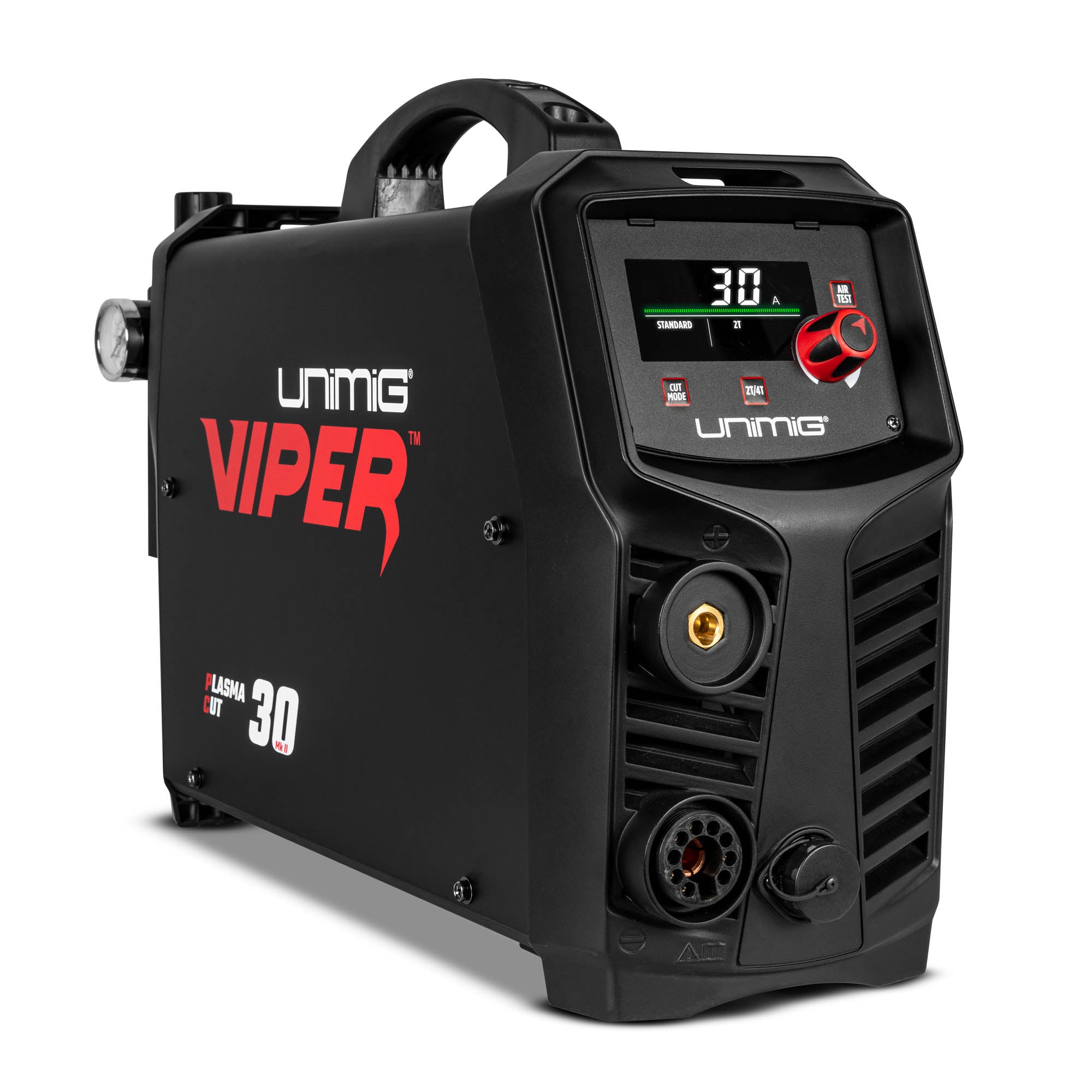

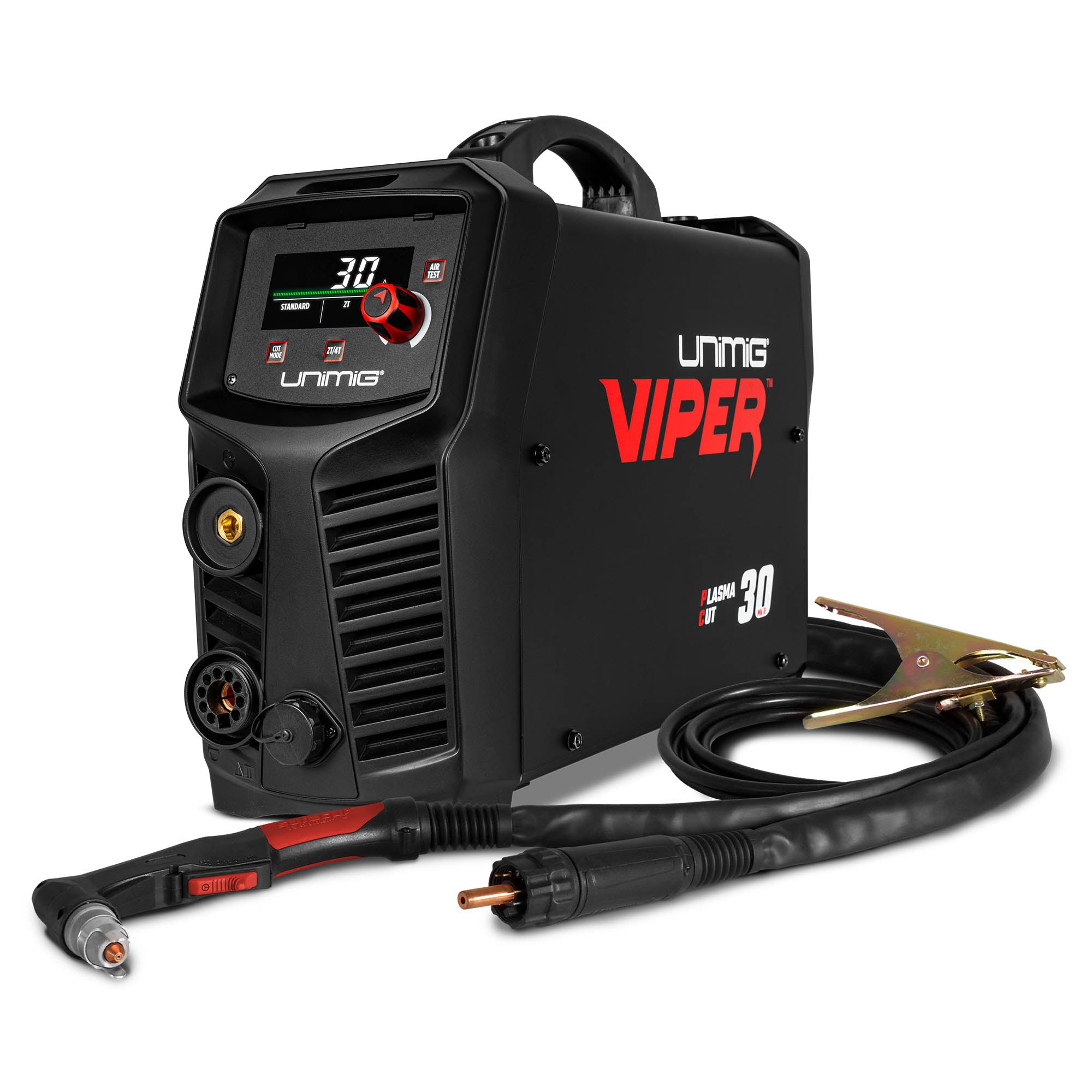

VIPER CUT 30 Mk II Plasma Cutter
U14005K
Cut anything, anywhere. Whether it’s solid or perforated metal, you’ll get a clean cut up to 12mm thick. Now with the addition of a CNC connection, the VIPER CUT 30 Mk II can handle anything you throw at it.
Product No: U14005K
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
10 AMP
RATED INPUT POWER (kVA)
7.5
RATED OUTPUT
92V
PROTECTION CLASS
IP21S
INSULATION CLASS
F
MINIMUM GENERATOR (kVA)
8.0
DINSE CONNECTOR
10/25
STANDARD
AS/NZ60974-1
WARRANTY (Years)
2
SIZE & WEIGHT
DIMENSIONS (mm)
534x166x343mm
WEIGHT (kg)
8.5kg
MACHINE FEATURES
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
PLASMA CUT SPECIFICATIONS
PLASMA CUT CURRENT RANGE
20-30A
PLASMA CUT DUTY CYCLE @ 40°C
15% @ 30A / 60% @ 23A / 100% @ 20A
MILD STEEL CUT THICKNESS
12mm
MILD STEEL SEVERANCE THICKNESS
14mm
ALUMINIUM CUT THICKNESS
6mm
ALUMINIUM SEVERANCE THICKNESS
8mm
STAINLESS STEEL CUT THICKNESS
6mm
STAINLESS STEEL SEVERANCE THICKNESS
8mm
AIR FLOW DRAW OFF (L/min)
170
AIR FLOW PRESSURE (Bar)
5-6 (70-87 psi)
PLASMA ARC START
Pilot Arc
