Description
The WORKSHOP 390 SWF MIG Welder combines immense power with ultra-smooth arc characteristics. It has been designed for users who need a welder to do medium to heavy fabrication, as well as rural applications. It features 30 position switching, giving you the freedom to precisely dial in your welding settings, and a four geared roller drive unit for consistent smooth wire feeding. The high-quality copper-wound transformer with large cooling fans and motors maximises cooling and machine reliability.

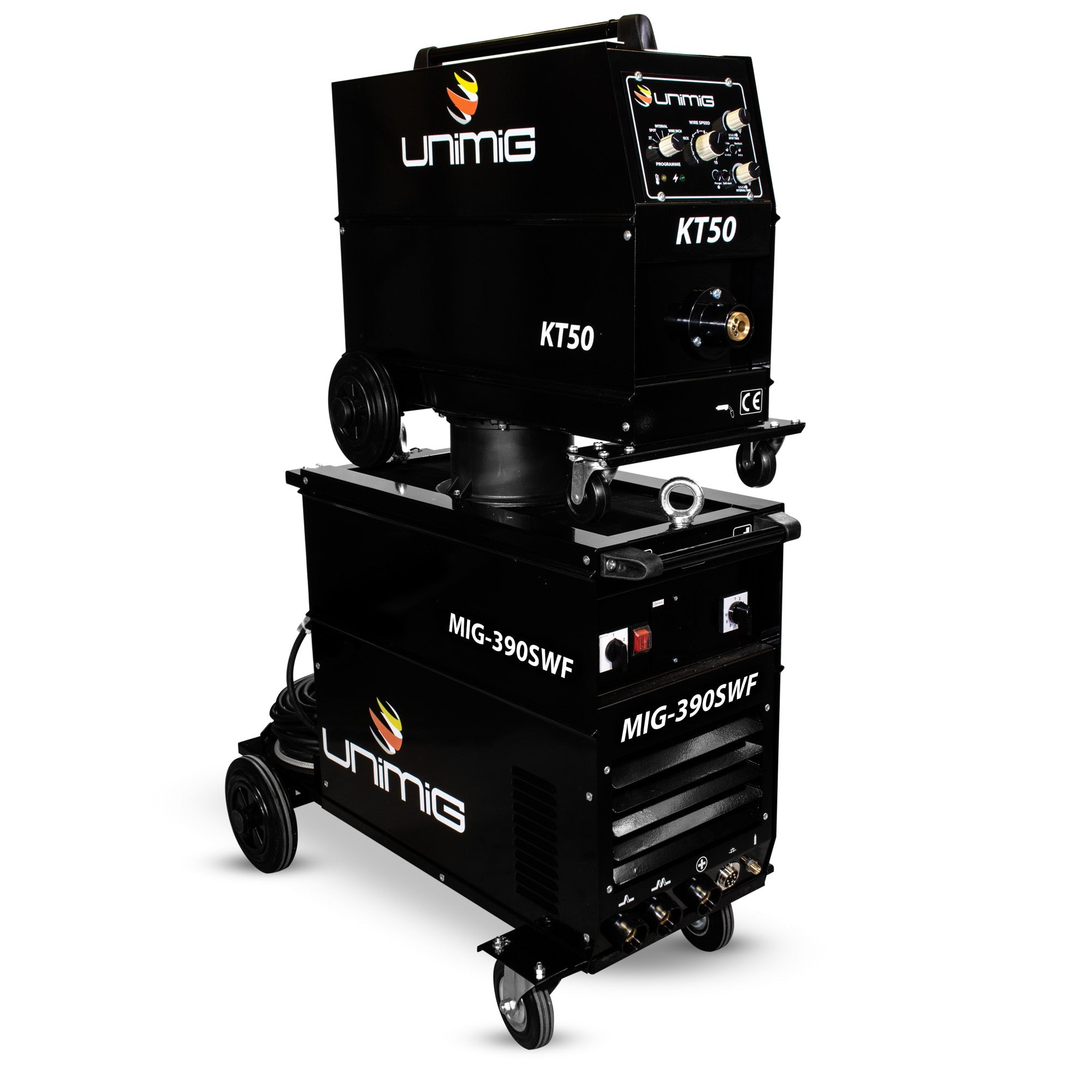

Go to greater heights with the addition of the KT50 Separate Wire Feeder unit which covers you an extra 10 metres, giving you increased manoeuvrability. It also prevents dust and moisture fouling you wire with its smart enclosed system design meaning no contaminates in your welds.
MACHINE SPECIFICATIONS
415V Three Phase
Three Phase (32 AMP Recommended)
16.0
30-375A
IP21
I
19.0
35/50
AS/NZ60974-1
Mild Steel, Aluminium, Stainless Steel
3
MIG SPECIFICATIONS
30-375A
40% @ 355A
0.6-2.4mm
5kg/15kg
2-20mm
40/32 (x2)
SIZE & WEIGHT
980 x 660 x 460mm
136kg
10m
MACHINE FEATURES
Four Geared
Over Temperature Warning
