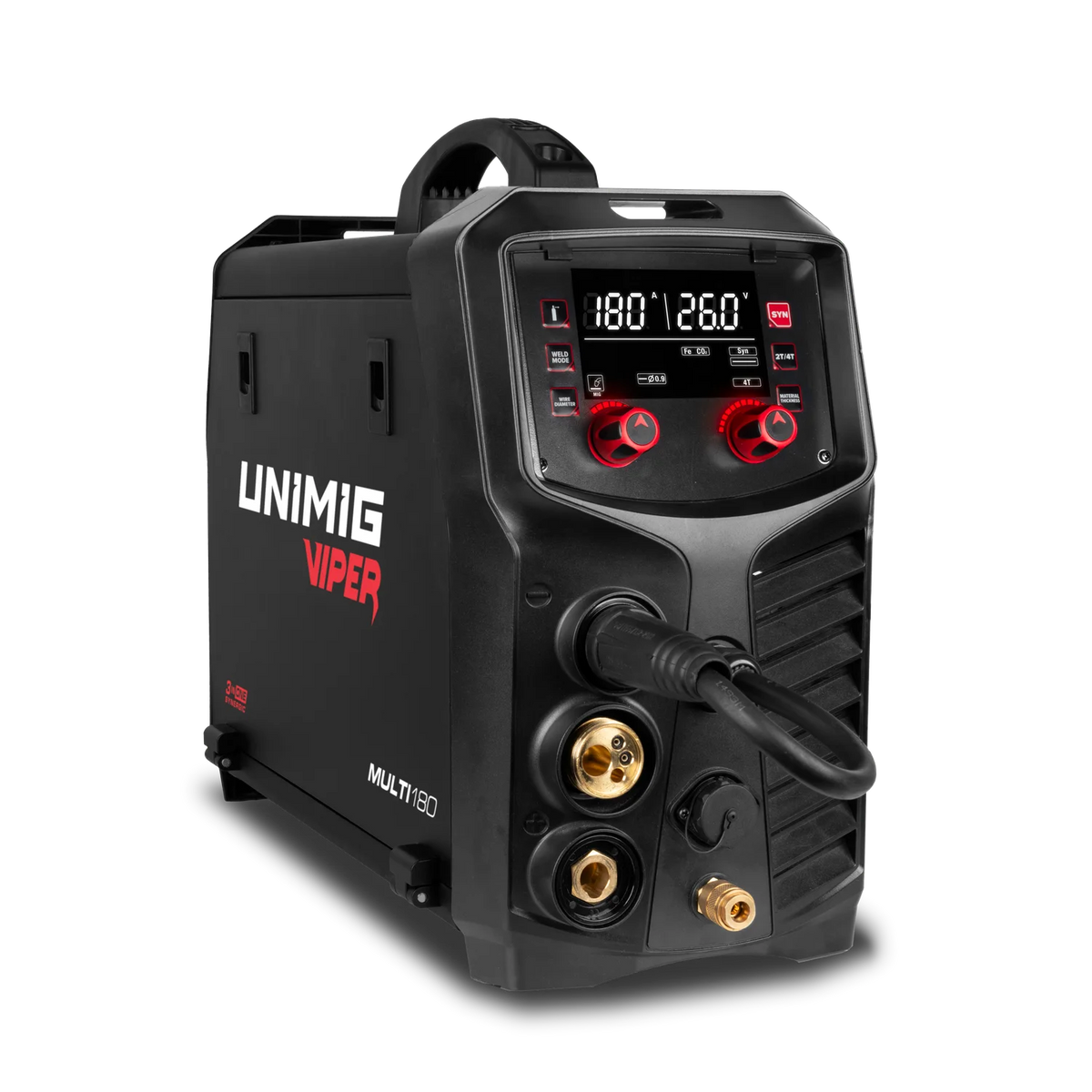

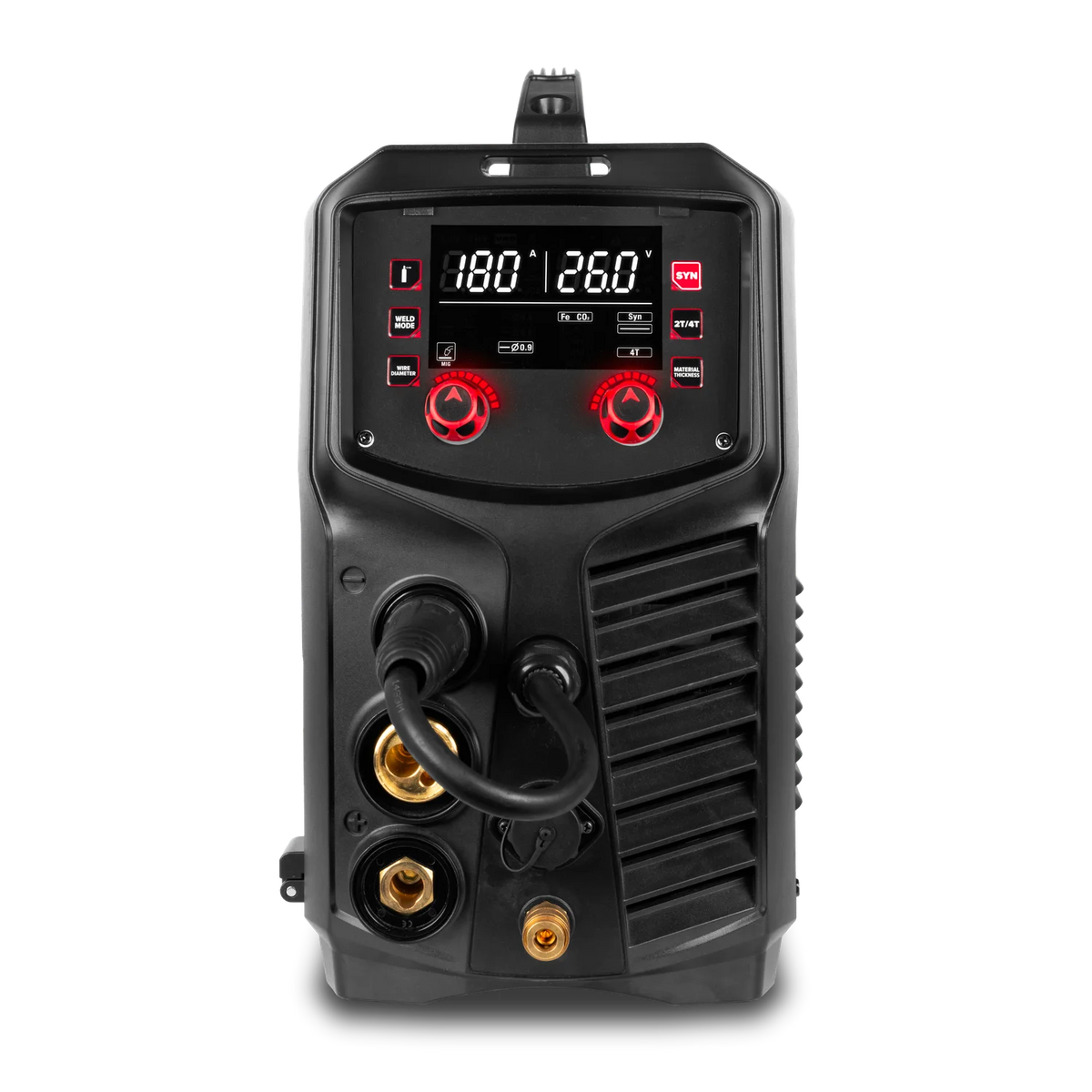

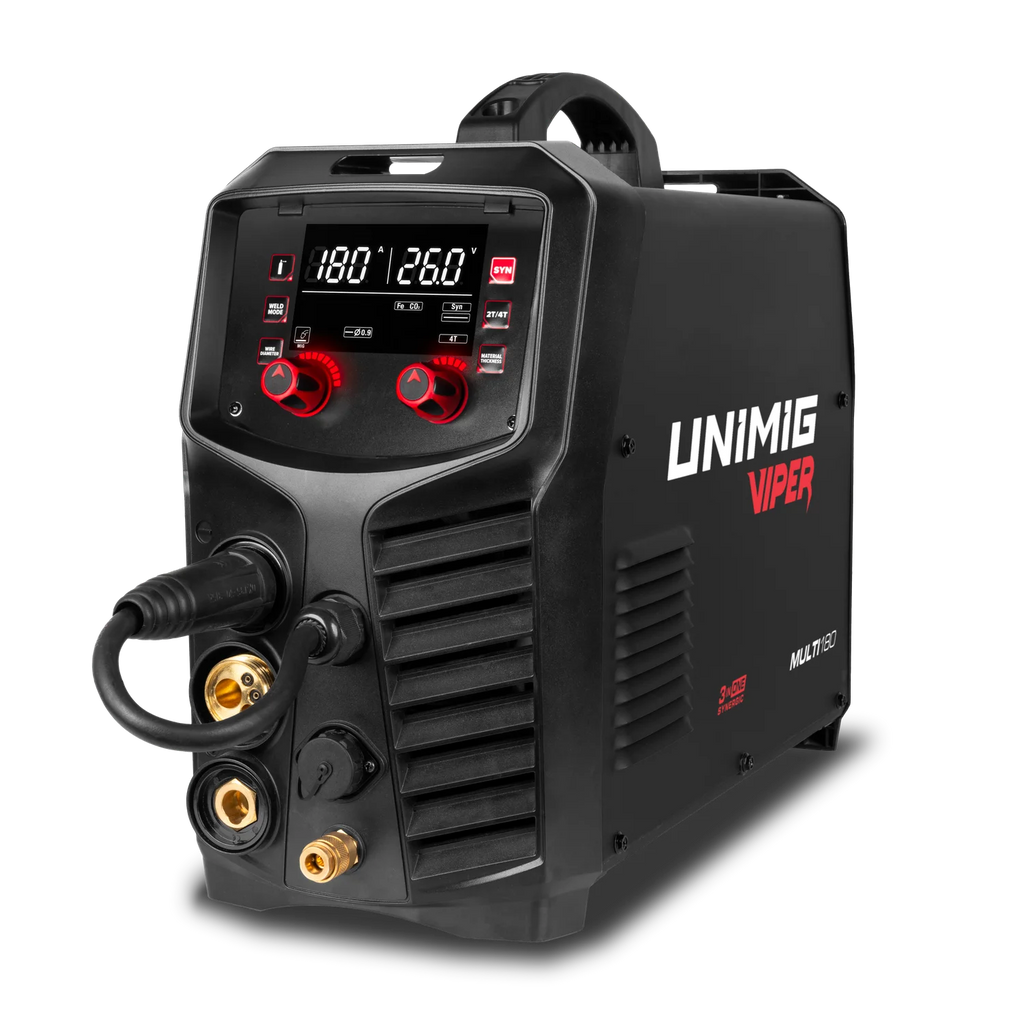

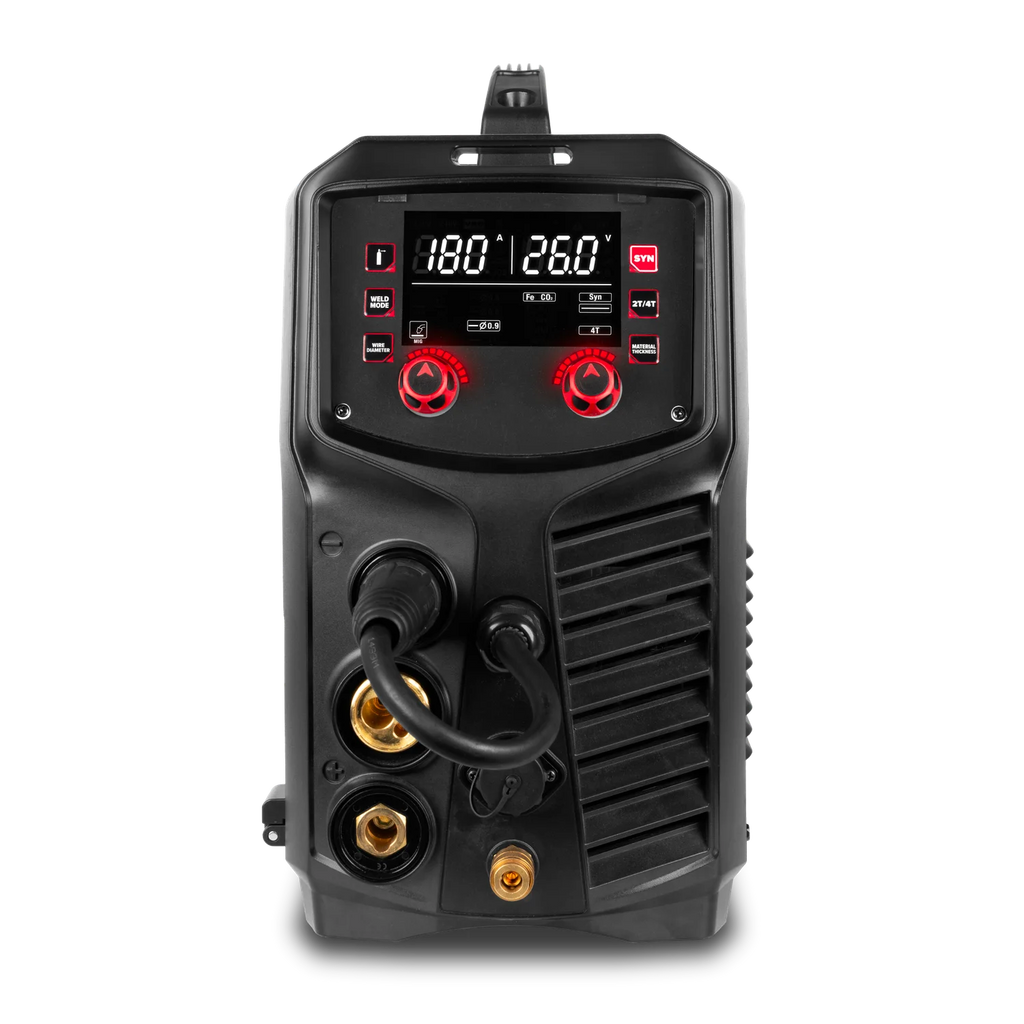

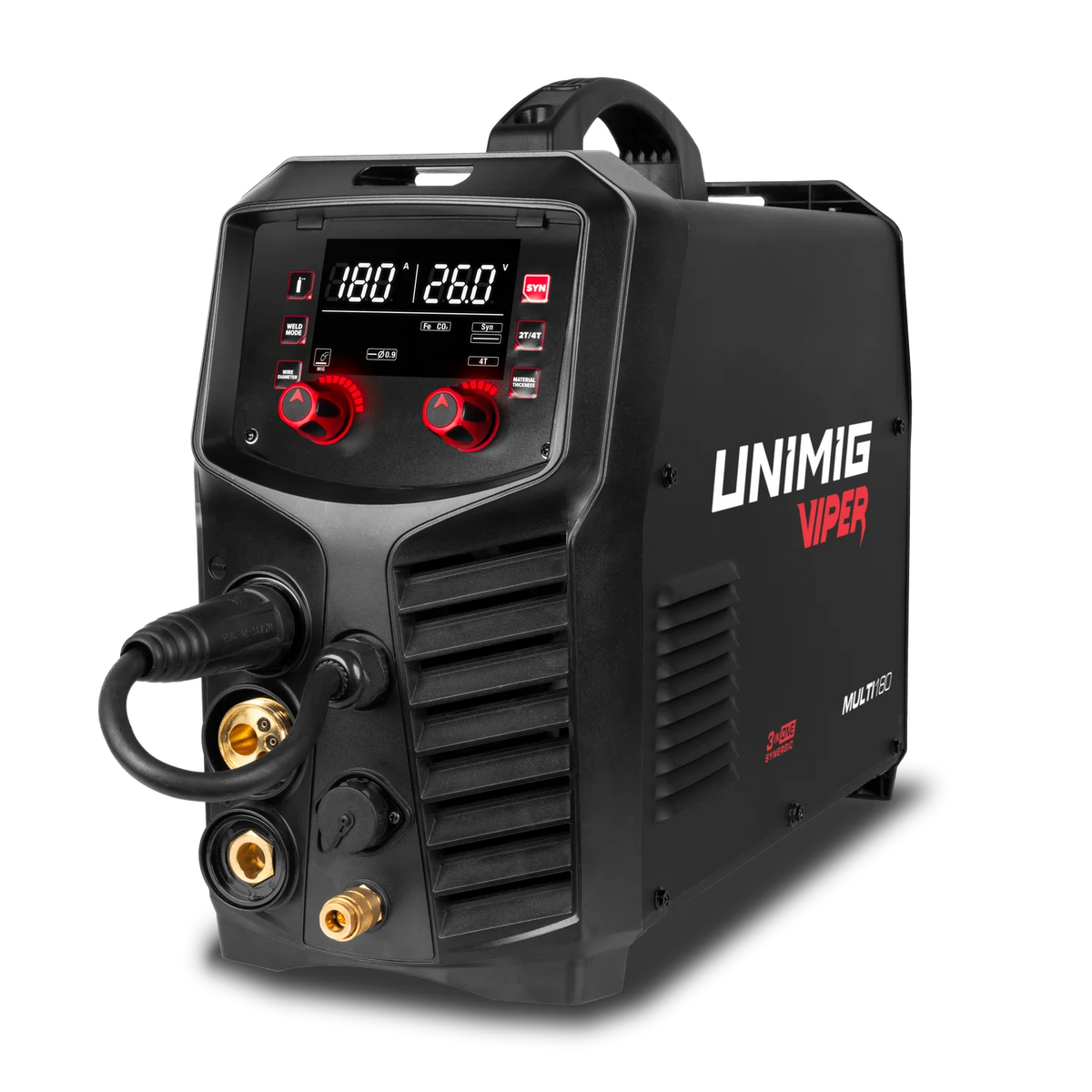

VIPER MULTI 180 Welder Bundle

SKU: U11717

A superior multi-process welder, the VIPER MULTI 180 is perfect for those looking for insane performance without breaking the bank.

Synergic MIG controls for quick and easy weld setups3-in-1 multi-process machine so you can MIG, TIG & STICK10 amp plug, so you can use it with any domestic outlet

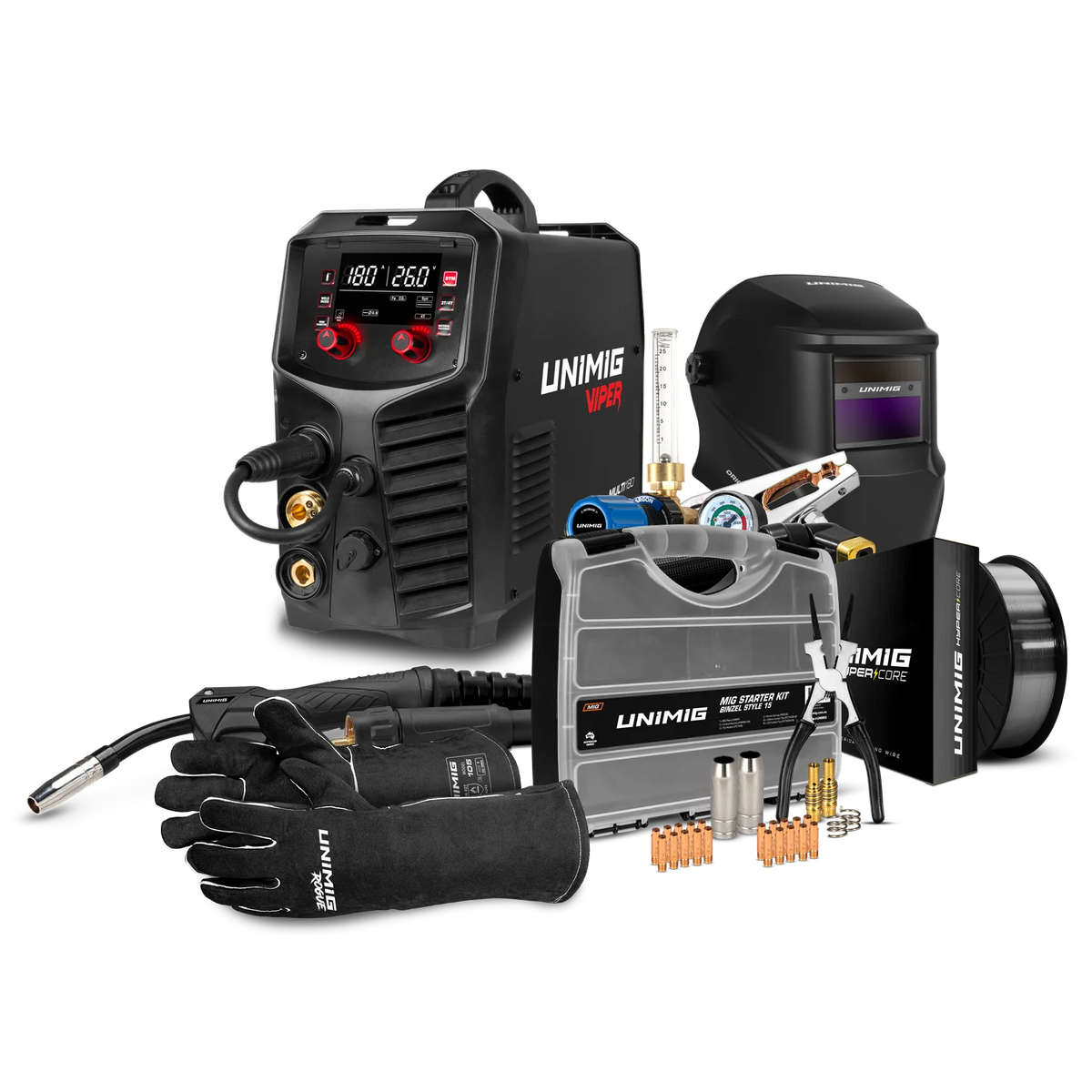

In the box:

VIPER MULTI 180 Welder (U11638)
WELDING HELMET ORIGIN SERIES BLACK (U21033)
CONSUMABLE STARTER KIT SUIT M15 (UMSK15)
HYPERCORE T-11 FLUX-CORED SELF-SHIELDED WIRE 0.9MM 5KG (U11681)
ROGUE HEAVY DUTY WELDING GLOVES (UMWG8)

Smart-Set MIG

Getting set up for a weld has never been faster with our preset synergic programs. Simply select your wire size and material type and the machine does the rest, picking the optimal settings for your weld.

Multi-Process

Get the job done quickly and efficiently with our versatile three-in-one welding machine. With the ability to perform MIG, TIG, and MMA welding all in one unit, it's also capable of running both gas-shielded and gasless MIG wire, so you can tackle a wide variety of welding projects with ease. Whether you're working with mild steel, stainless steel, aluminium, or flux-cored wire, our machine has got you covered, saving you valuable time and effort without sacrificing quality.

Pulse DC TIG

Minimise the heat input without compromising on any of the penetration. Alternating between a peak and base current reduces the amount of heat input and focuses the arc, perfect for sheet metals and out-of-position welding.

Spool Gun Ready

Switch to aluminium welding fast. Plug in a spool gun and start working without reconfiguring your setup or wasting time changing liners. Ideal for quick changeovers and small aluminium jobs.

Advanced MMA Features

Advanced MMA features are designed for improving weld quality and ease of use.

Pulse MMA

Revolutionary pulse stick reduces spatter, improves heat control and makes for easier slag removal, as well as improves the speed and efficiency of vertical up welds without sacrificing any root fusion.

Hot Start

The adjustable hot start is designed to help with striking an arc. The hot start temporarily boosts the output current at the start, making striking an arc, even with difficult electrodes, much easier. You get smoother arc starts, improving the quality of your weld.

Arc Force

The Arc Force feature helps to keep the arc stabilised throughout the weld, by increasing or decreasing the peak current to compensate for your arc length, preventing the arc from cutting out or the electrode from sticking.

Anti-Stick

The Anti Stick feature, which is always on, prevents your electrode from sticking to your workpiece. When the machine detects sticking, the current will drop significantly, so the electrode can be removed.

Advanced IGBT Inverter Technology

Our IGBT inverter platform delivers higher efficiency, stronger arc stability and more consistent power delivery. It runs cooler, responds faster to changes in arc demand and provides the reliability needed for modern welding applications.

10A Plug

Ready to run on any domestic outlet. Simple to power, easy to move and built for anyone who needs a portable welding setup.

Additional Features

Job Memory

The job memory function allows you to enter and store weld parameter settings. Weld parameters can be further adjusted and stored as required. A total of 9 jobs can be memorised and stored for recall.

Inductance Control

Take complete control of your arc with the inductance settings. By changing the frequency of your short circuit MIG welds with the Inductance controls, you can choose your preferred arc characteristics on every weld.

Burnback Adjustment

Stop your wire from ever fusing with your weld or your contact tips again. Tune your burnback control to suit how much wire you want to remain sticking out from your torch when you finish a weld.

Generator Compatible

Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 9kVA for this machine.

Lightweight & Portable

Weighing just 11.1kg, you can take this machine with you anywhere.

MIG SPECIFICATIONS

MIG Current Range: 30-180A

MIG Duty Cycle @ 40°C:

10% @ 180A
60% @ 75A
100% @ 57A

MIG Wire Sizes: 0.6-1.0mm

MIG Wire Spool Sizes:

1kg (D100)
5kg (D200)

MIG Welding Thickness Range:

Mild Steel: Up to 8mm
Stainless/Aluminium: Up to 6mm

Drive Roller Size: 30/22

TIG SPECIFICATIONS

TIG Ignition Type: DC Lift Arc

TIG Current Range: 20-180A

TIG Duty Cycle @ 40°C:

10% @ 180A
60% @ 75A
100% @ 57A

TIG Welding Thickness Range:

Mild Steel: Up to 8mm
Stainless Steel: Up to 6mm

MMA SPECIFICATIONS

MMA Current Range: 20-160A

MMA Duty Cycle @ 40°C:

10% @ 160A
60% @ 65A
100% @ 51A

MMA Electrode Range: 2.5-4.0mm

MMA Welding Thickness Range:

Mild Steel: Up to 8mm
Stainless Steel: Up to 6mm

MACHINE SPECIFICATIONS

Primary Input Voltage: 240V Single-Phase

Supply Plug: 10A

Ieff (A): 8.9

Imax (A): 28.8

Open Circuit Voltage (OCV): 70.0

Open Circuit Voltage with VRD Active (V): 15.0

Protection Class: IP21S

Insulation Class: H

Minimum Generator (kVA): 9.0

Dinse Connector: 35/50

Standard: AS 60974.1

Warranty: 3 Years

Weight (kg): 9.80

Dimensions (LxWxH): 513 x 206 x 391mm

Suitable Materials:

MIG: Mild Steel, Stainless Steel, Aluminium, Silicon Bronze
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MMA: Mild Steel, Stainless Steel, Cast Iron
