Description

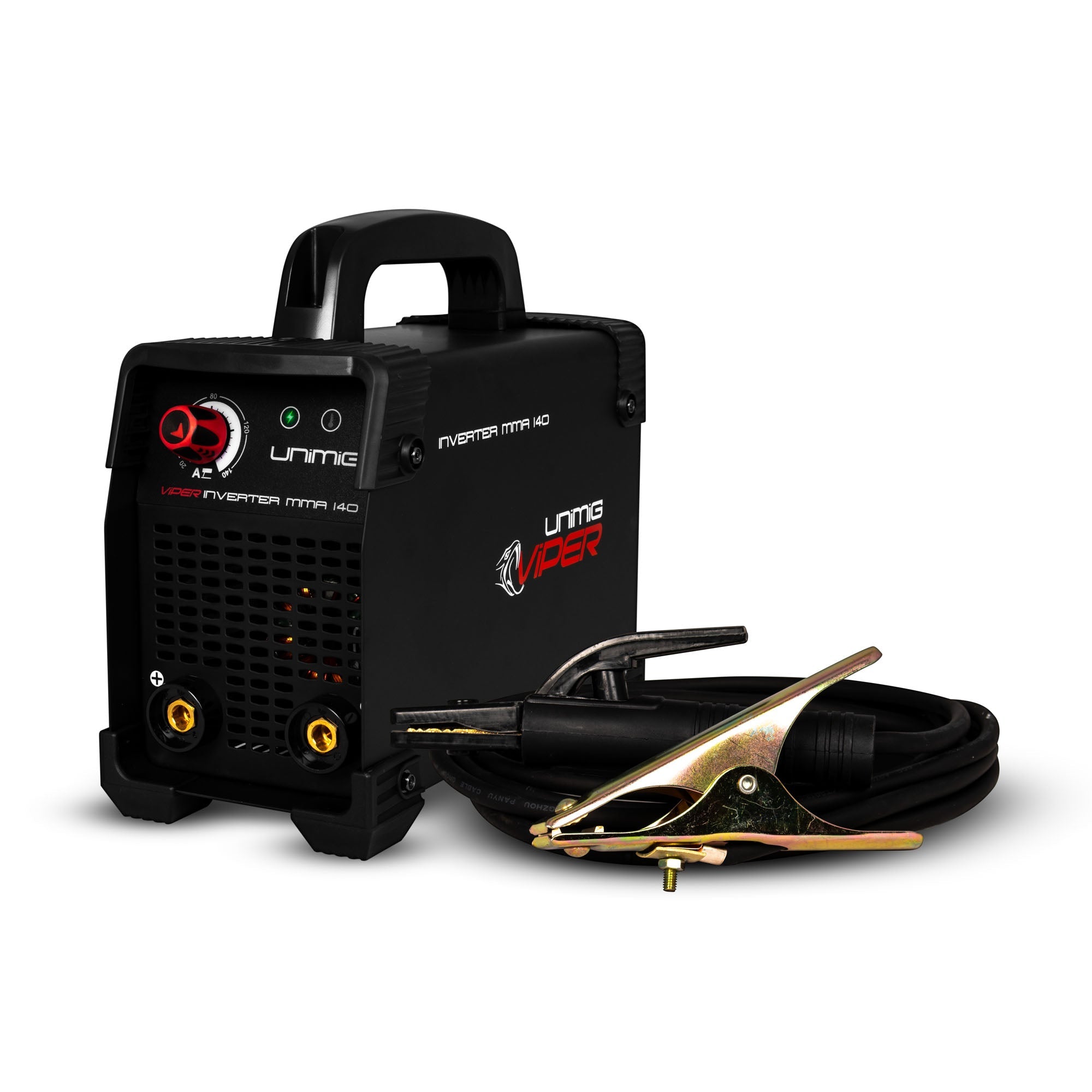

Don’t let the pros have all the fun. The VIPER™ ARC 140 is the perfect STICK welder to get you up and running. Packed with all the features you need for STICK welding, this is the welder that proves you don’t need to break the bank for a decent machine. Better yet, it comes with the pioneering build quality UNIMIG is recognised for throughout the industry. The VIPER™ ARC 140 also features DC Scratch Start TIG, in case you needed another excuse to purchase.
Product No: KUMJRVA140
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
240V Single Phase
SUPPLY PLUG
10 AMP
RATED INPUT POWER (kVA)
6.5
Ieff (A)
100
RATED OUTPUT
10-140A
NO LOAD VOLTAGE (V)
62.9
PROTECTION CLASS
IP21S
INSULATION CLASS
F
POWER FACTOR
0.65
MINIMUM GENERATOR (kVA)
8.0
DINSE CONNECTOR
10/25
STANDARD
AS/NZ60974-1
SUITABLE MATERIAL
Mild Steel, Stainless Steel, Copper, Cast Iron
WARRANTY (Years)
1
TIG SPECIFICATIONS
TIG FUNCTION TYPE
DC Scratch Start
TIG WELDING THICKNESS RANGE
1-5mm
STICK SPECIFICATIONS
STICK WELDING CURRENT RANGE
20-140A
STICK DUTY CYCLE @ 40°C
15% @ 140A
STICK ELECTRODE RANGE
2.5-3.2mm
STICK WELDING THICKNESS RANGE
2-8mm
SIZE & WEIGHT
DIMENSIONS (mm)
295x135x270mm
WEIGHT (kg)
