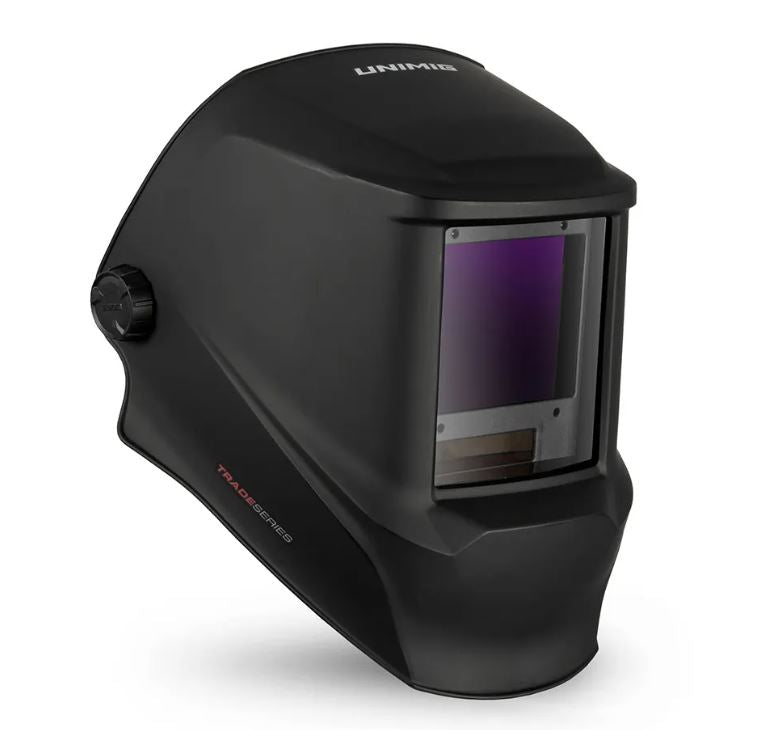

TRADE SERIES WELDING HELMET – BLACK
Keep your eyes and face protected during every weld with our Trade Series welding helmets. The 1/1/1/1 optical classification combined with the large 100×83.4mm viewing lens means you get superior visibility in every situation. You’ll also be abe to save your favourite shade settings with the memory states, so your setup is instant. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.
100x83.4mm
VIEW SIZE.
5-13
SHADE CONTROL.
4 Arc Sensors
CONSTANTLY MONITOR THE ARC.
External GRIND Button
EASY ACCESS WHEN GRINDING.
ELITEVISION™ Lens Technology
ELITEVISION™ Lens Technology greatly improves the optics of your helmet, letting you see a full spectrum of colours. It also helps to reduce eye fatigue making it safer for extended periods of welding.
1/1/1/1 Classification
Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening Filter (ADF) that’s scored top marks across the board for a crystal-clear view of your weld at every angle.
Memory States
Store up to three of your most frequently used shade settings with the memory state buttons and have your helmet ready to go in an instant.
100x83.4mm View Size
Superior visibility in every situation. The 100×83.4mm viewing area lets you see every weld with complete clarity.
External Grind Button
Seamlessly switch to grind mode with the click of a button. When the helmet is in grind mode a small LED will illuminate, so you don’t need to take the helmet off to check.
4 Arc Sensors
Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes shielded from the start, even when you’re out of position.
Backup Battery
A CR2450 backup battery improves the performance and reliability of the auto-darkening filter.
4 Point Harness
Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you, and have the weight spread more evenly, minimizing neck strain.
HELMET SPECIFICATIONS
114x133x9.5mm
100x83.4mm
4
1/1/1/1
4
5-9 / 9-13
DIN15
0.04ms
0.1-0.9s
Adjustable (1-5 for low-high)
Solar Cells & CR2450 Replaceable Battery
3 Years
-10˚C to 65˚C
-20˚C to 85˚C
Yes
Yes (External)
AS/NZS 1337.1 B (High Impact) AS/NZS 1338.1 (Auto-Darkening)
REPLACABLE PARTS
U21023 (Trade Series Welding Helmet Lens Kit - 5 x Outer, 2 x Inner)
U21024
U21025
Here you’ll find the latest manuals, guides & product/parts information.
UNIMIG is pleased to offer a 3 year warranty on Trade Series Welding Helmets. UNIMIG offers warranty across Australia with four UNIMIG service area’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well. UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind.
