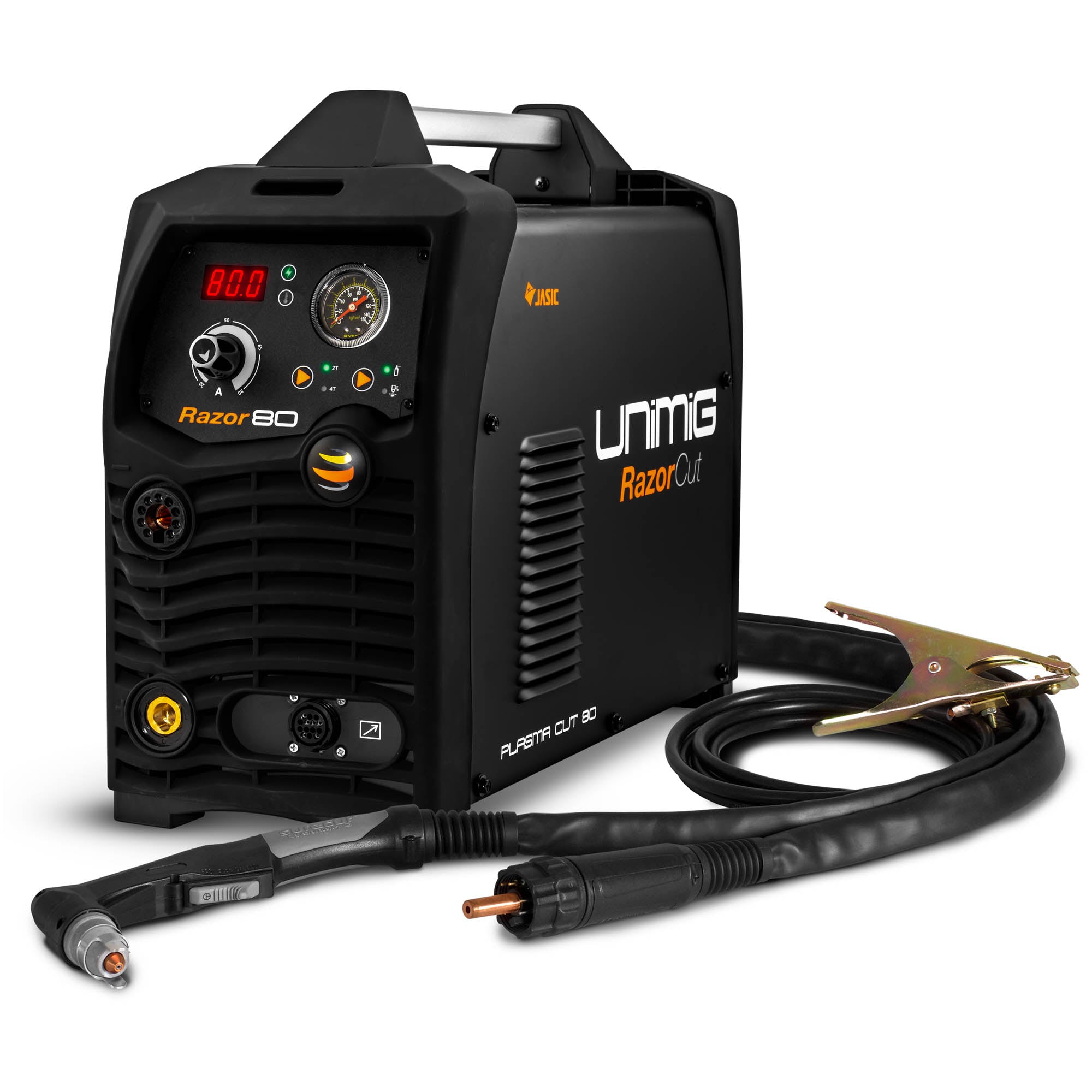

RAZOR CUT 80 Plasma Cutter
KUPJRRW80
The RAZOR™ CUT 80 is designed for maximum performance, offering the highest level of cutting performance from UNIMIG’s range. Capable of clean cutting 30mm and severing 35mm, this machine is for the professional needing maximum power from a portable machine.
Product No: KUPJRRW80
MACHINE SPECIFICATIONS
PRIMARY INPUT VOLTAGE
415V Three Phase
SUPPLY PLUG
No plug supplied (20 AMP Recommended)
RATED INPUT POWER (kVA)
15.0
NO LOAD VOLTAGE (V)
340
PROTECTION CLASS
IP21S
INSULATION CLASS
F
MINIMUM GENERATOR (kVA)
15.0
DINSE CONNECTOR
35/50
STANDARD
AS/NZ60974-1
WARRANTY (Years)
3
SIZE & WEIGHT
DIMENSIONS (mm)
560x220x415mm
WEIGHT (kg)
16kg
MACHINE FEATURES
THERMAL OVERLOAD PROTECTION
Over Temperature Warning
PLASMA CUT SPECIFICATIONS
PLASMA CUT CURRENT RANGE
20-80A
PLASMA CUT DUTY CYCLE @ 40°C
40% @ 80A
MILD STEEL CUT THICKNESS
30mm
MILD STEEL SEVERANCE THICKNESS
35mm
ALUMINIUM CUT THICKNESS
16mm
ALUMINIUM SEVERANCE THICKNESS
20mm
STAINLESS STEEL CUT THICKNESS
16mm
STAINLESS STEEL SEVERANCE THICKNESS
20mm
AIR FLOW DRAW OFF (L/min)
189
AIR FLOW PRESSURE (Bar)
5.17 (75 psi)
PLASMA ARC START
Pilot Arc
