Description

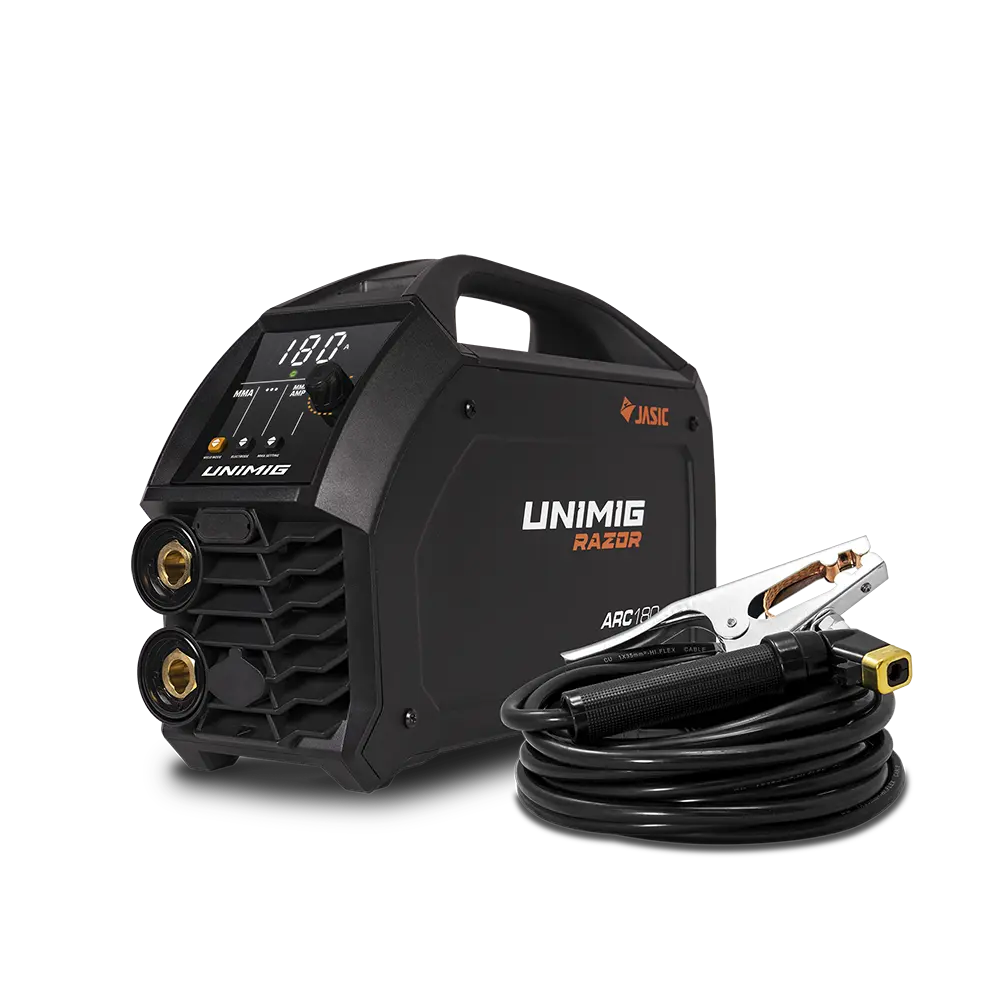

RAZOR ARC 180 Welder
The most portable professional-grade MMA welder available, perfect for on-site or off.
- Packed full of advanced features including hot start, arc force and anti-stick
- Capable of DC Lift Arc TIG for more versatility
- A 5-year warranty to reflect our confidence in this machine
In the box:
- RAZOR ARC 180 Welder
- 4m Twist Lock Electrode Holder
- 4m 300A Earth Clamp & Lead
- Operating Manual
Machine Specifications
Primary Input Voltage
240V Single-Phase
Supply Plug
15A
Ieff (A)
14.7
Imax (A)
32.9
Open Circuit Voltage (OCV)
78.0
Open Circuit Voltage with VRD Active (V)
11.0
Protection Class
IP23S
Insulation Class
H
Minimum Generator (kVA)
10.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Weight (kg)
5.80
Dimensions (LxWxH)
370 x 125 x 255mm
Suitable Materials
MMA: Mild Steel, Stainless Steel, Cast Iron
TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze
MMA Specifications
MMA Current Range
20-180A
MMA Duty Cycle @ 40°C
20% @ 180A
60% @ 104A
100% @ 81A
MMA Electrode Range
2.5-4.0mm
MMA Welding Thickness Range
2-10mm
