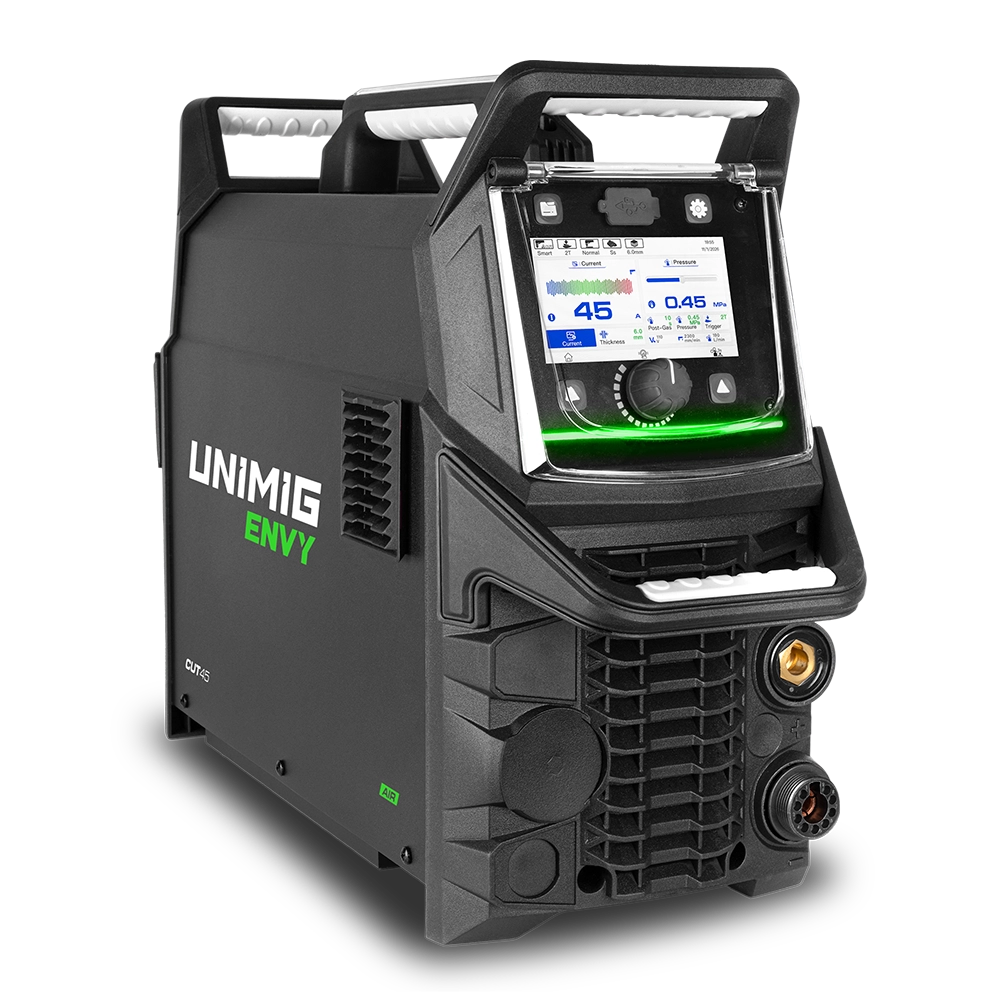

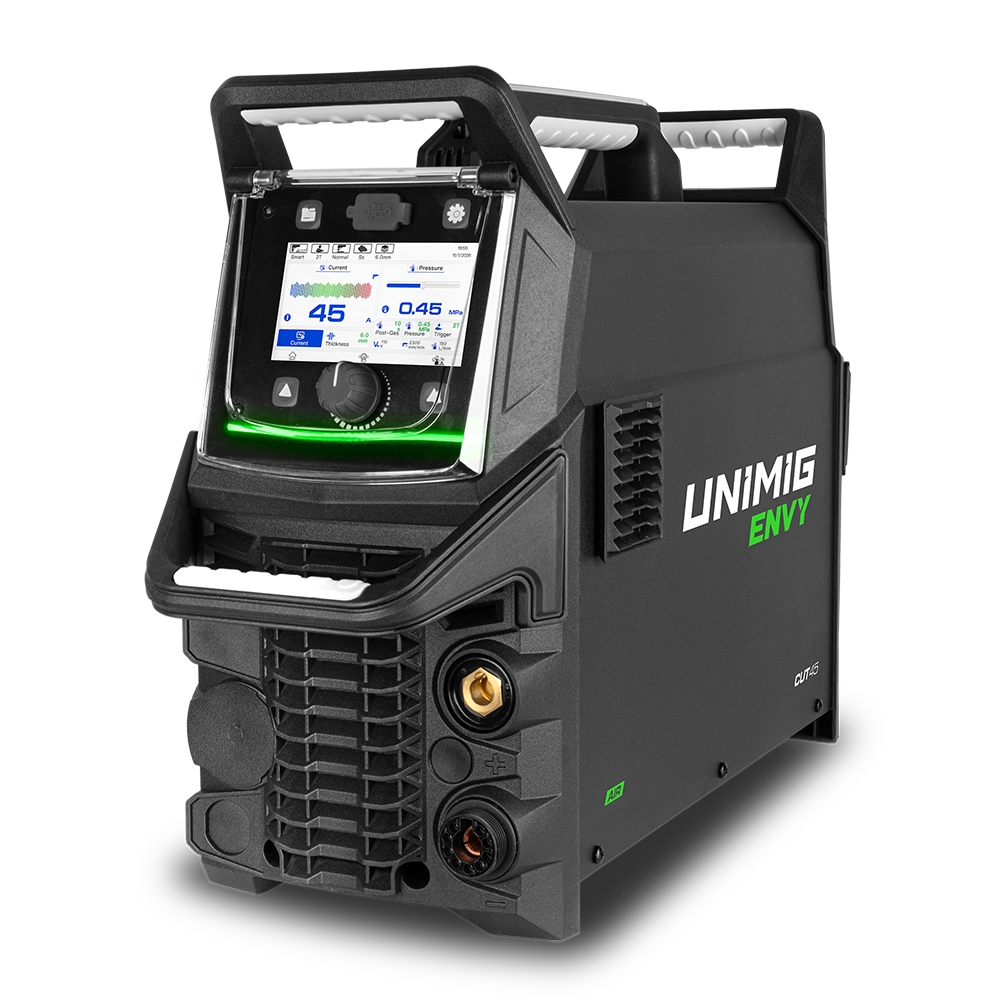

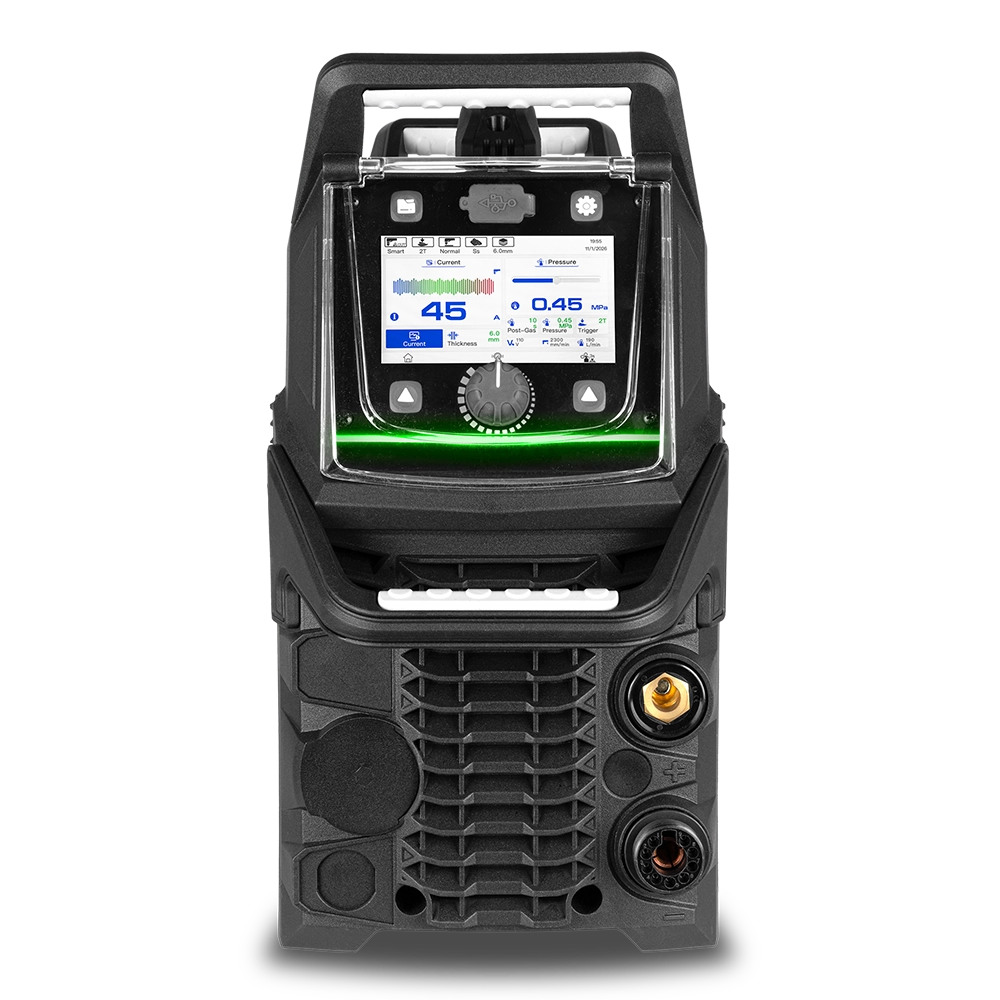

ENVY CUT 45 AIR Plasma Cutter
SKU: U11604
- The built-in air compressor lets you take this machine anywhere
- 20mm clean cuts and 25mm cutting capacity
- The CNC connection means you can use this machine for every kind of plasma application
In the box:

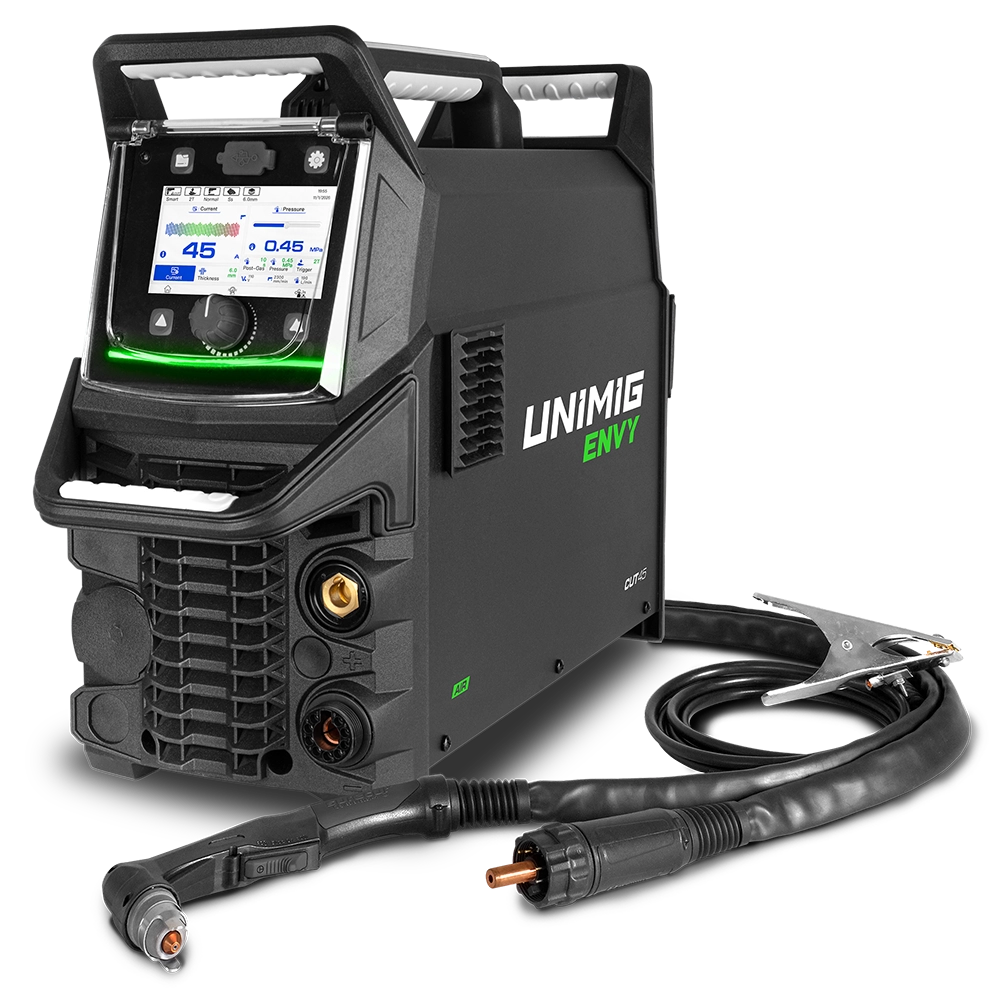

- ENVY CUT 45 AIR Plasma Cutter
- 6m SC80 Plasma Torch
- 4m 300A Earth Clamp & Lead
- Operating Manual
Smart-Set Programs
The easiest way to set up for a plasma cut, simply select your cutting type, material type and thickness, and you’re good to go!
Cutting Capacity
Mild Steel - Get a 20mm clean cut and a severance cut of 25mm on mild steel.
Stainless Steel - Get up to a 18mm clean cut on stainless steel.
Aluminium - Get up to a 14mm clean cut on aluminium.
Cutting Modes
Solid - Cut through solid metal plate on any material.
Perforated - With the perforated cutting mode, you can cut materials like grating or mesh without interruption.
Gouging - Switch to gouging consumables to efficiently remove defects, welds, or pre-existing metal from your workpiece.
CNC Connectivity
Switch from handheld to automated cutting whenever you need. The CNC interface lets you connect a CNC torch and run the machine on a cutting table with precise, repeatable control.
Automatic Air Pressure Control
The machine regulates its own air pressure internally, so you do not need to adjust your compressor. The digital regulator delivers highly accurate, consistent airflow for cleaner starts and more reliable cuts.

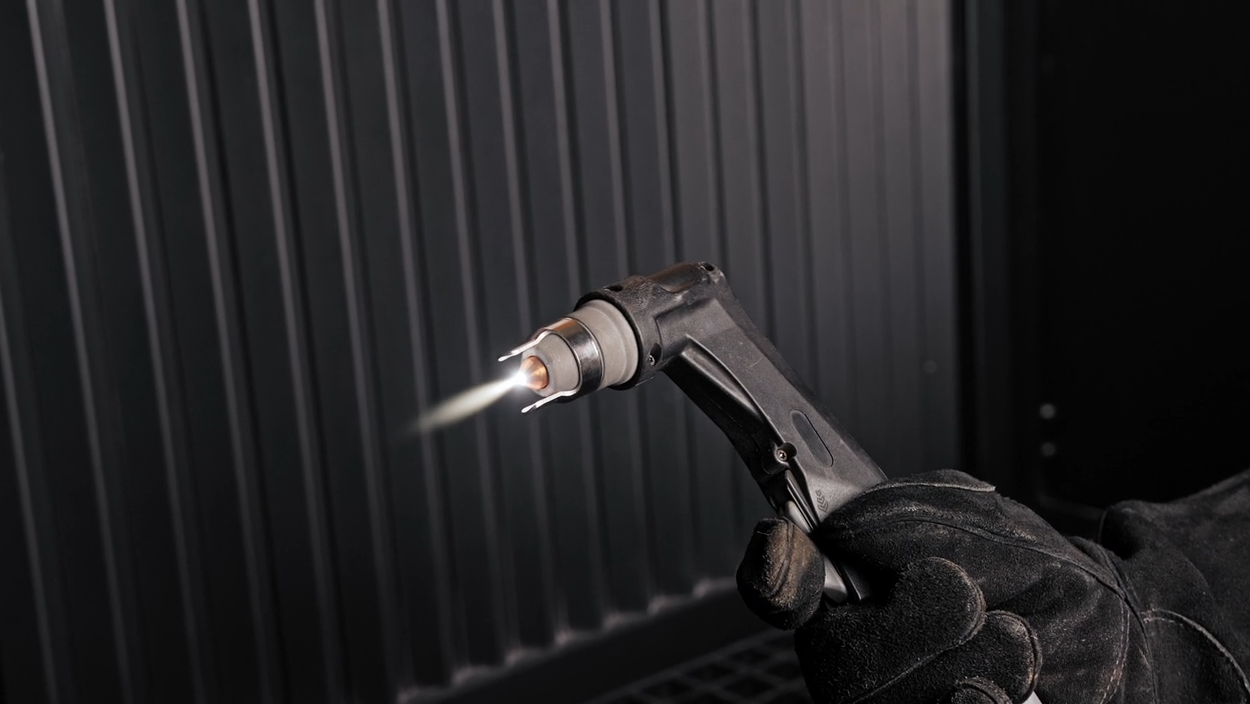

Pilot Arc Start
Strike the arc without touching the workpiece. Pilot arc start lets you cut through paint, rust or scale with ease and gives you better control on uneven surfaces. Because the tip does not need to drag, your consumables last longer and your starts stay consistent.
Smart Fan Technology
The fan runs only when needed, reducing noise, cutting power use and limiting the dust drawn into the machine. This keeps internal components cleaner and helps extend the overall life of the unit.
Job Memory
The job memory function allows you to enter and store cut parameter settings. Cut parameters can be further adjusted and stored as required. A total of 100 jobs can be memorised and stored for recall.
Air Test
Check that your plasma cutter is running at peak performance. The air test ensures that your compressor is connected and that the air pressure is dialled in to produce the best cuts.
Generator Compatible
Take it anywhere. Connect the machine to a generator and use it wherever, whenever you need it. We recommend 10kVA for this machine.
Machine Specification
Primary Input Voltage
240V Single-Phase
Supply Plug
15A
Ieff (A)
14.5
Imax (A)
26.5
Air Flow Draw (L/min)
190-245
Air Flow Pressure
65.27-87.02 psi
4.5-6.0 bar
0.45-0.6 MPa
Open Circuit Voltage (OCV)
380.0
Protection Class
IP21S
Insulation Class
H
Minimum Generator (kVA)
10.0
Dinse Connector
35/50
Standard
AS 60974.1
Warranty
5 Years
Dimensions (LxWxH)
665 x 220 x 425mm
Weight (kg)
23.10
Plasma Specification
Plasma Cut Current Range
20-45A
Plasma Cut Duty Cycle @ 40°C
30% @ 45A
60% @ 32A
100% @ 25A
Mild Steel Cut Thickness
12mm (Internal) / 20mm (External)
Mild Steel Severance Thickness
14mm (Internal) / 25mm (External)
Stainless Steel Cut Thickness
6mm (Internal) / 18mm (External)
Aluminium Cut Thickness
6mm (Internal) / 14mm (External)
Copper Cut Thickness
8mm
