Description
STAFFORD AC/DC 200D
P/N SAC/DC200D
THE ALL NEW STAFFORD AC/DC 200 PULSE IGBT INVERTER IS A PORTABLE INDUSTRIAL GRADE AC/DC TIG AND MMA WELDING MACHINE.
SUPERIOR TIG WELDING WITH AMPERAGE RANGE OF 5—200AMPS PROVIDES THE ABILITY TO WELD THIN SHEET METAL AND THE EXTRA AMPERAGE CAPACITY TO WELD THICKER METALS.
THE STAFFORD AC/DC 200 WELDS STAINLESS STEEL, ALLOY STEEL, AND OTHER NON-FERROUS METALS WITH DC FUNCTION AND WELDS ALUMINUM OR ALLOY ALUMINUM WITH AC FUNCTION.

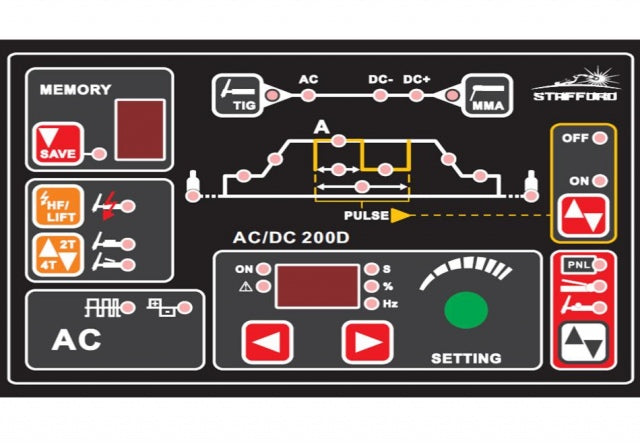

FULLY DIGITAL CONTROLLED SETTING MAKE THIS MACHINE EASY TO SET FOR ALL YOUR APPLICATIONS.
OUR MACHINE COMES EVERYTHING STANDARD UNLIKE OUR COMPETITORS
- AC/DC 200D MACHINE
- 26V FINGER TIP CONTROL TIG TORCH WITH FLEX HEAD
- TIG TORCH CONSUMABLE PACK
- 4M ARC LEAD
- 4M EARTH LEAD

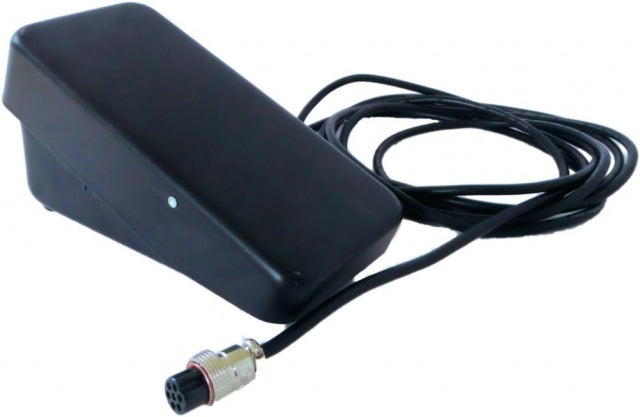

- FOOT CONTROLLER
- ARGON REGULATOR
- GAS HOSE WITH QUICK RELEASE GAS FITTING
PRODUCT FEATURES
- AC/DC FUNCTION
- AC BALANCED CONTROL
- FULLY ADJUSTABLE PULSING CONTROL
- FULLY ADJUSTABLE DOWN SLOPE & POST FLOW
- 2T/4T TRIGGER FUNCTION
- HF ARC STARTING
- MMA FUNCTION
- FOOT CONTROL
- QUALITY FINGER TIP CONTROL 17V TIG TORCH
- GERMAN MADE IGBT INVERTER COMPONENT
- FOR INDUSTRIAL USE
SPECIFICATION
Input Voltage (V) AC240V
Frequency (Hz) 50
Rated Input Current (A) 33.6
Output Current Range (A)
AC TIG : 20-200
DC TIG : 5-200
MMA : 5-160
Rated Duty Cycle (%)
DC 60% @ 200amp
100% @ 160amp
AC 60% @ 160amp
100% @ 130amp
No-Load voltage (V) 60 - 80
Efficiency (%) 83
Output Voltage Adjustment (V) 15-23
Power Factor 0.9
Rated Output Voltage(V)
Arc Starting HF
Pulse Frequency(Hz) 0.5-25
Pre-gas Flow Time(S) 0-10
Gas Post Flow Time(S) 1-25
Down Slope Time(S) 0-10
Clean Area Width(%) 30-70
Insulation Grade F
Housing Protection Grade IP21S
Weight (KGS) 25
Fully Compliant to AS 60974-1
3 YEAR WARRANTY
CLICK HERE FOR MANUAL
