DESCRIPTION AND SPECIFICATIONS

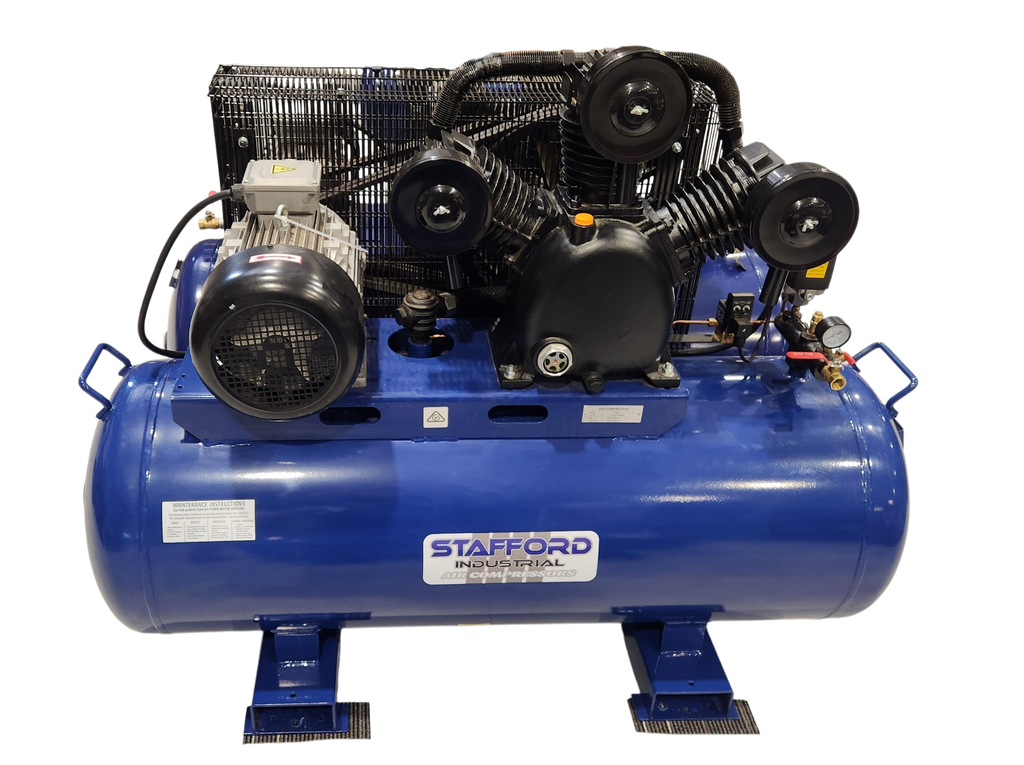

STAFFORD INDUSTRIAL 38 CFM AIR COMPRESSOR

P/N TB-100300E

• 38 CFM
• FAD 905 L/Min
• TRIPLE CAST IRON PUMP
• SOLID RUBBER WHEELS
• 10 HP ELECTRIC MOTOR
• HUGE 300L TANK
• 2 YEAR WARRANTY

• Item/Model No. : TB-100300E
• Pump: TA-100
• No. of Cylinders: 3
• Cylinder Bore & stroke: 90x70MM
• RPM: 850R/MIN
• Pump Displacement CFM: 1072L/MIN
• FAD (free air Delivery): 905L/MIN
• Motor/Engine: 3 PHASE Electric motor
• HP: 10HP
• KW: 7.5KW
• Mains Voltage: 415V/50Hz
• Receiver Capacity Nominal (L): 300L
• Normal Pressure: 10Bar(145PSI)
• Dimensions: 160x60x131CM
• Weight kg: 300KGS
