OUR NEW STAFFORD MULTIMIG 250

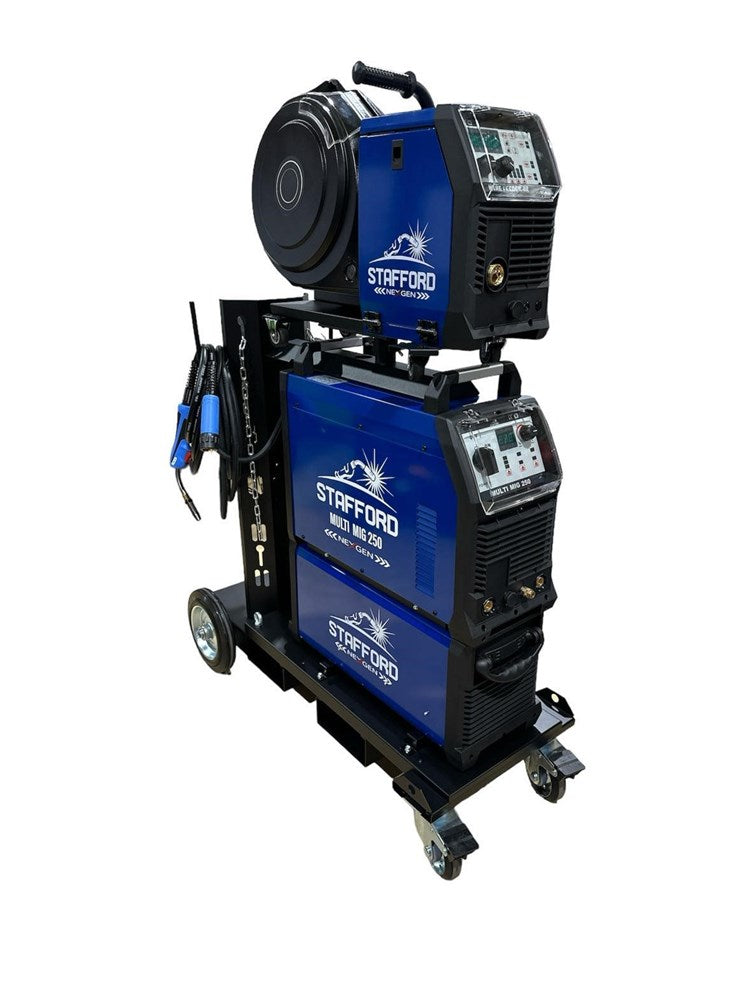

The STAFFORD MULITMIG 250 SWF has a SINGLE phase power supply which is a powerful workshop machine with MIG, TIG and STICK welding functions. The machine is equipped with a separate wire feeder with 10m interconnecting leads and comes standard on a heavy-duty trolley. The STAFFORD 250 Multimig can be set up for MIG, Stick, DC TIG, and Spool guns.
The machine can be used as a semi synergic unit or can be put into manual mode for full control.
PACKAGE INCLUDES:
10 MTR Interconnecting Leads

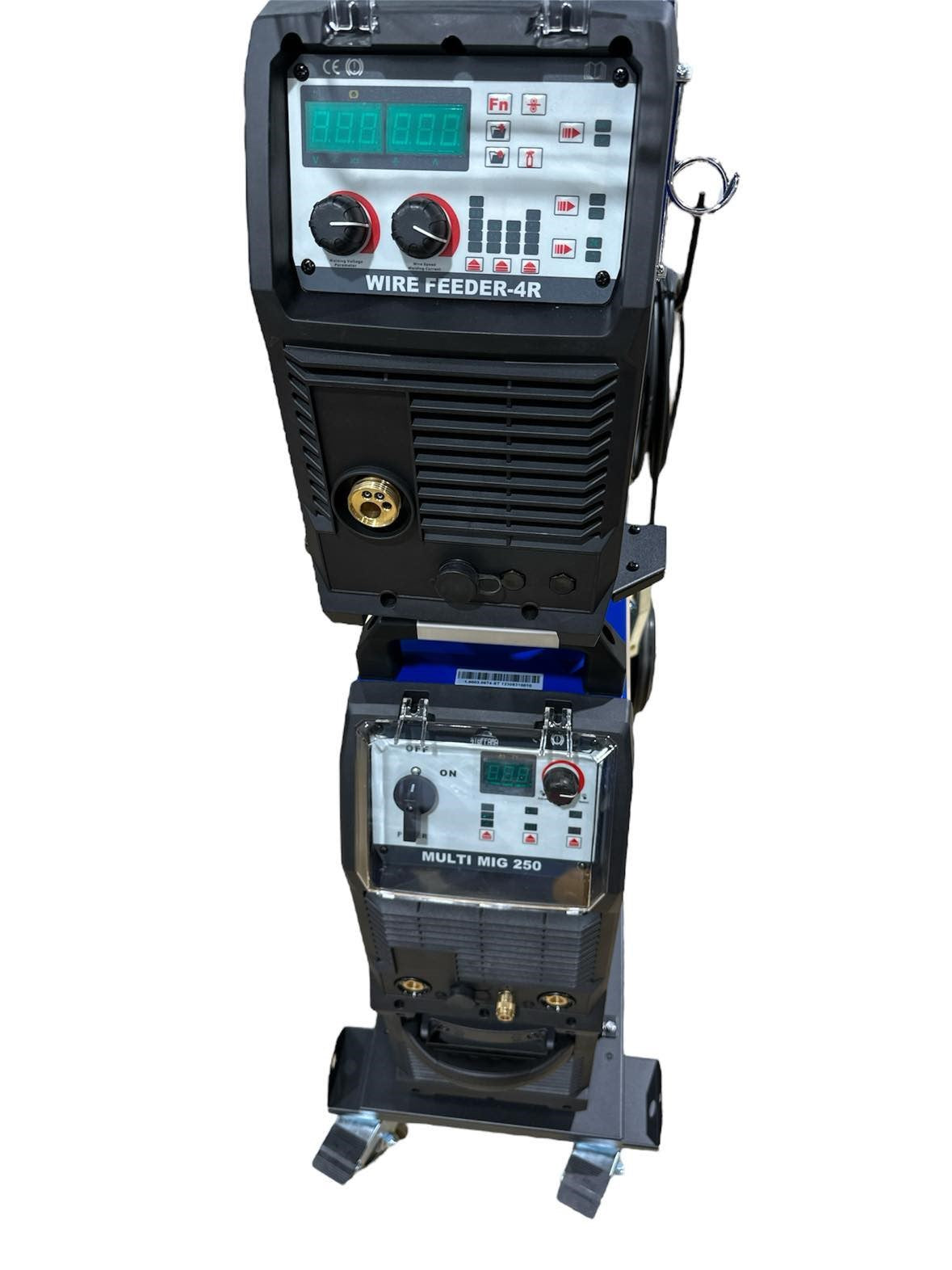

Separate Wire Feeder
4 MTR MB24 Euro-Fit MIG Torch
8 MTR Earth Lead with Top Gun 600A Clamp
8 MTR Electrode Holder Lead Twist Lock

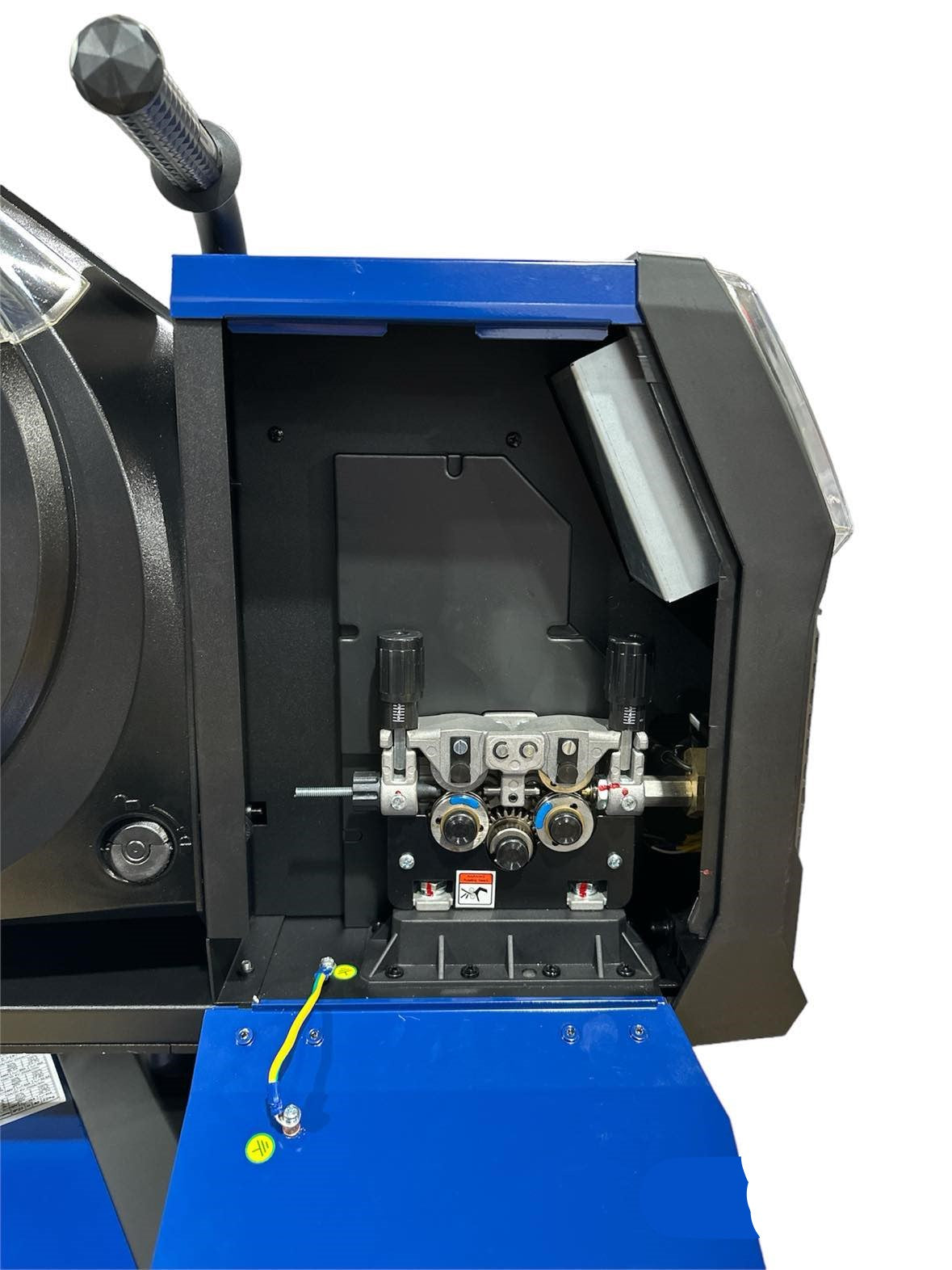

0.8mm – 0.9mm “V” Solid Rollers
1.2mm – 1.6mm “V” Solid Rollers
0.9mm – 1.2mm “F” Flux Cored Rollers
1.2mm – 1.6mm “F” Flux Cored Rollers

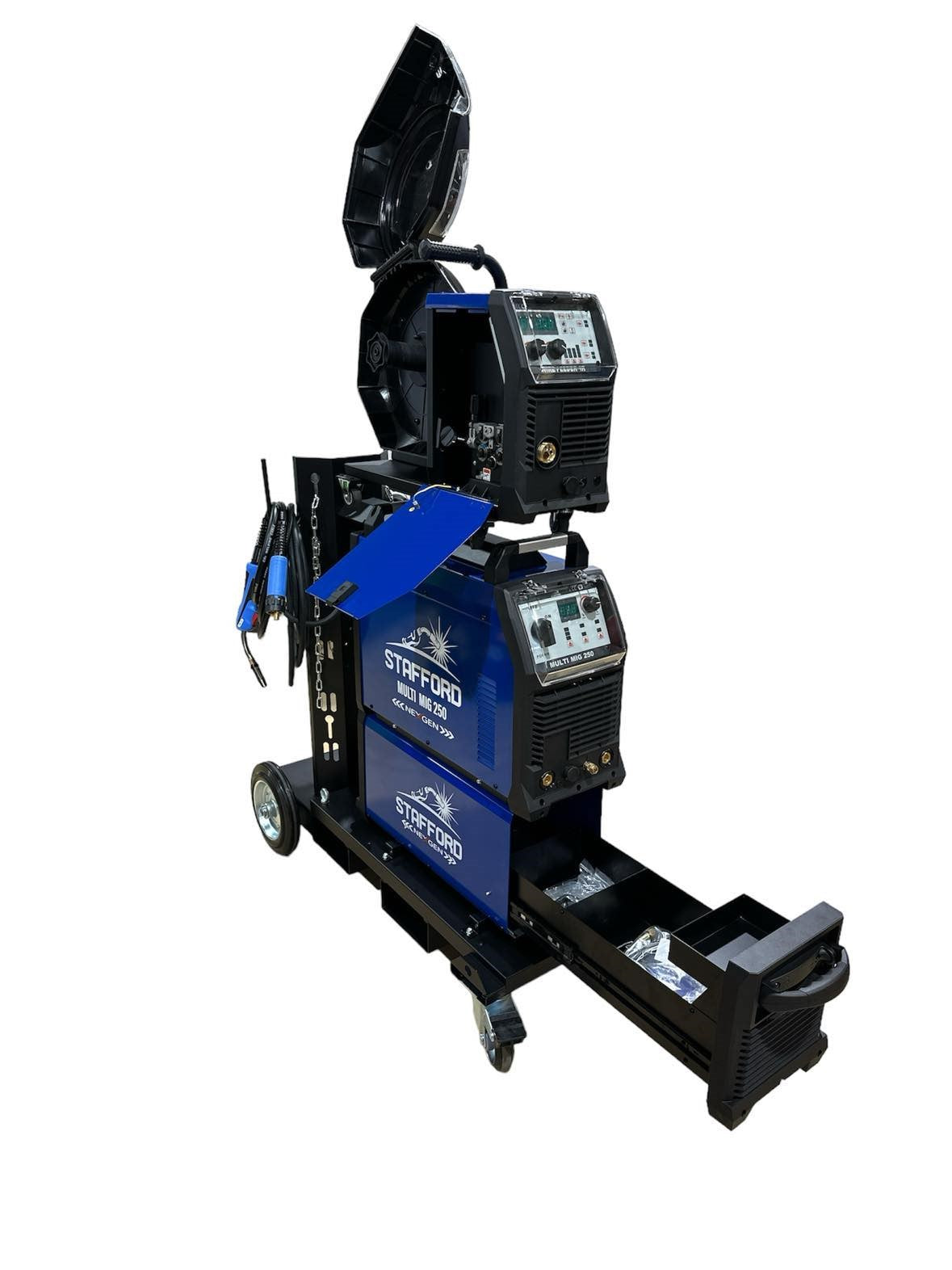

Welding Trolley with Storage Drawer
Quick Connect Fittings for TIG Torch and Gas Hose
Twin Gauge Regulator
2MTR Gas Hose with Quick Connect Fitting
FOR INDUSTRIAL USE
MACHINE SPECIFICATIONS:
Input Voltage (V) 240 A/C
Frequency (Hz) 50/60 Hz
Output Current Range (A) 30 - 250A
MIG Rated Duty Cycle (%) 60% @ 250A 100% @ 194A
Machine Weight (Assembled) 121 Kg
Machine Dimensions(mm) (Assembled) 1040 x 1450 x 510
Package weight (Power Source) 30 Kg (SWF) 46 Kg (Storage Drawer) 15Kg (Welding Trolley) 30 Kg
Package Dimensions (mm) (Power Source) 760x320x580 (SWF) 820x460x560 (Storage Drawer) 770x260x370 (Welding Trolley) 1110x510x270
Warranty 3 Years
