RAZOR CUT 40 AIR PLASMA CUTTER
RAZOR CUT 40 AIR PLASMA CUTTER
RAZOR CUT 40 AIR PLASMA CUTTER
RAZOR CUT 40 AIR PLASMA CUTTER
Roll over image to zoom in Click on image to zoom
RAZOR CUT 40 AIR PLASMA CUTTERRAZOR CUT 40 AIR PLASMA CUTTERRAZOR CUT 40 AIR PLASMA CUTTERRAZOR CUT 40 AIR PLASMA CUTTER

RAZOR CUT 40 AIR PLASMA CUTTER

UNIMIG
Price:
$2,129.00

Description

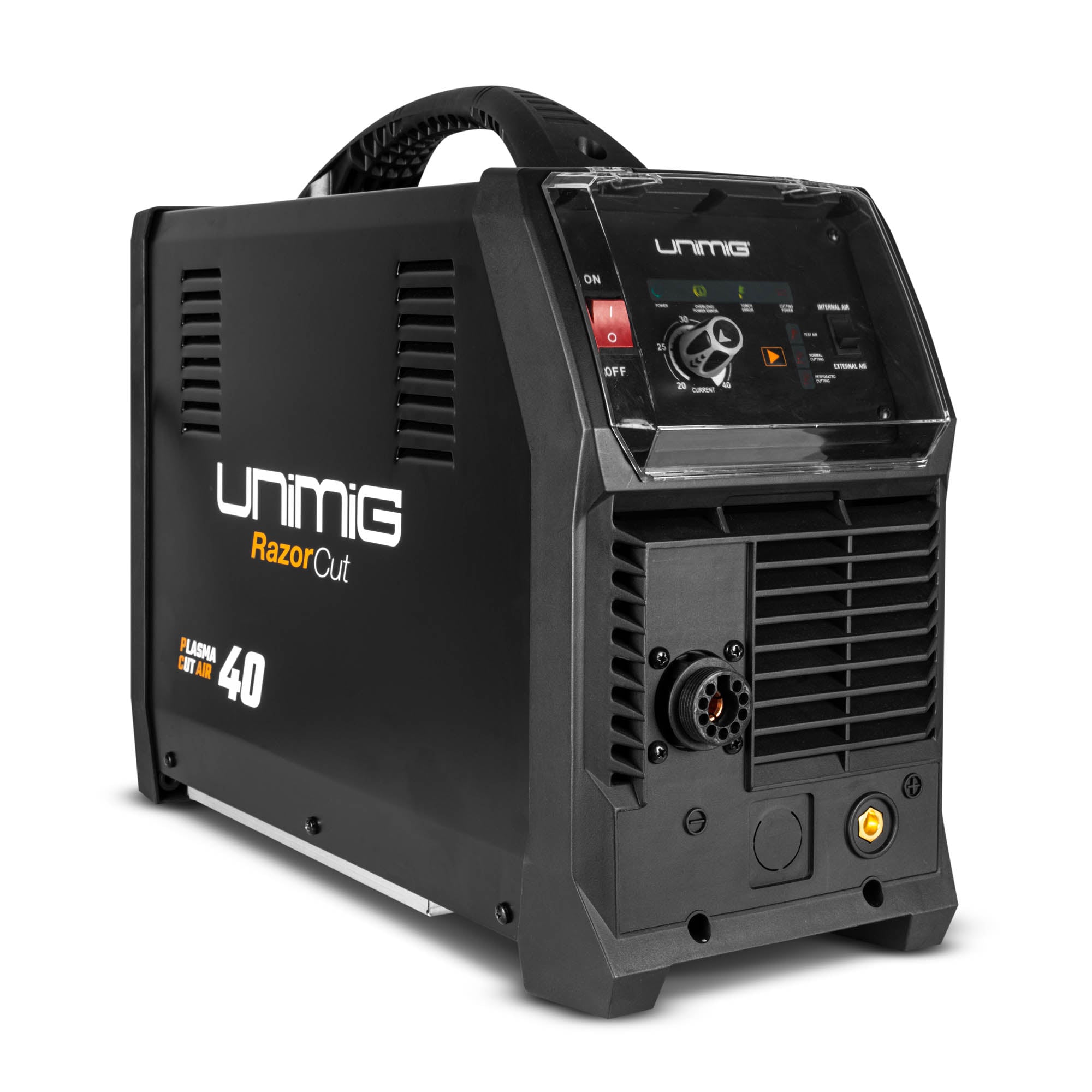

RAZOR CUT 40 AIR PLASMA CUTTER

The RAZOR™ CUT 40 AIR is the perfect plasma cutter for the professional who wants a powerful plasma cutter with a built-in air compressor. Fitted with a 15 AMP plug, this machine is made for the workshop and worksite. The RAZOR™ CUT 40 AIR boasts some serious cutting power with 10mm clean-cut and 12mm severance on the built-in air compressor, and 16mm clean-cut and 20mm severance on an external compressor.

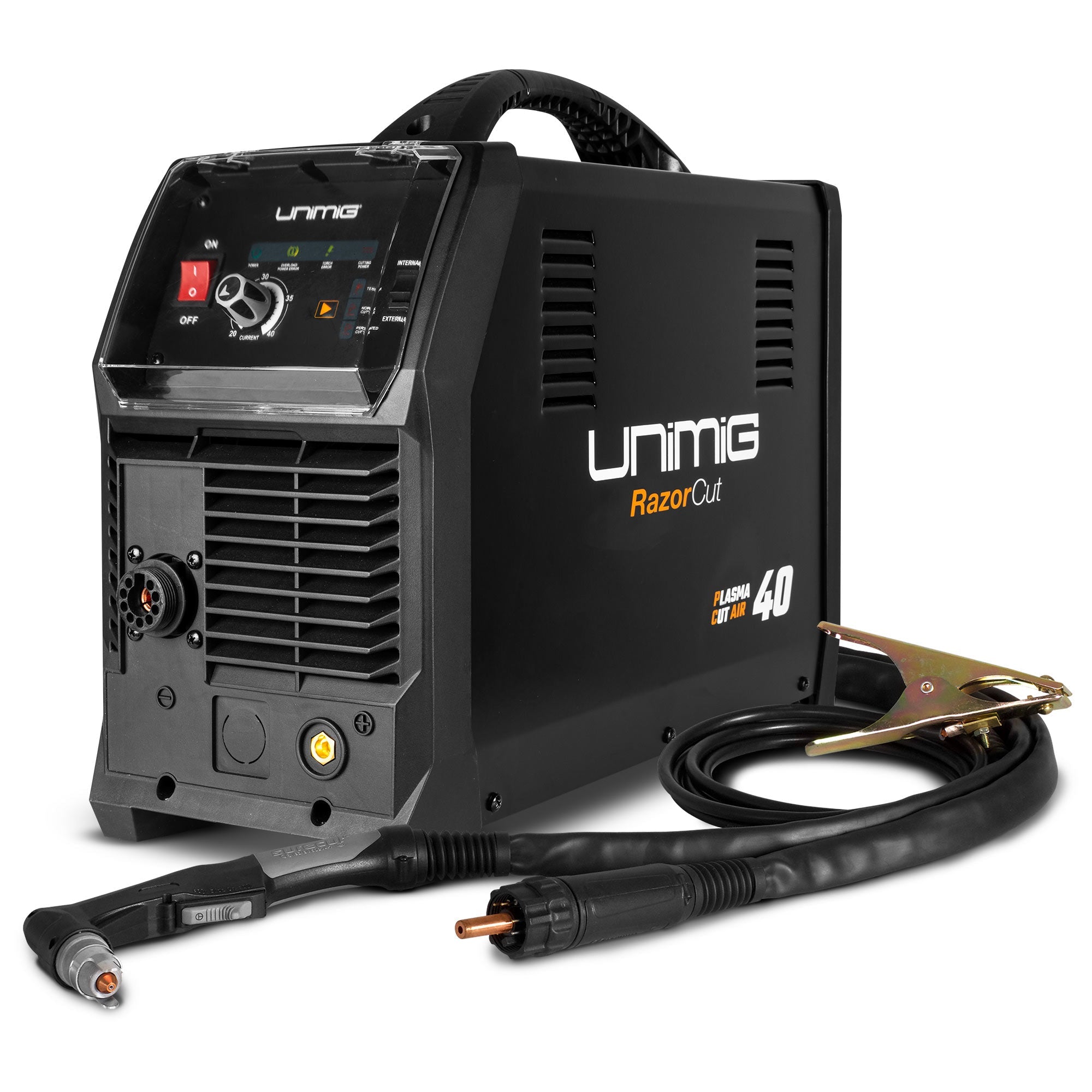

PACKAGE INCLUDES



  • RAZOR™ CUT 40 AIR Plasma Cutter
  • 6m SC80 Plasma Torch
  • 4m 300 AMP Earth Clamp
  • Air Regulator
  • Operating Manual



BUILT-IN AIR COMPRESSOR

ALSO CAN BE CONNECTED VIA EXTERNAL AIR.

15 AMP PLUG

CONNECT TO ANY 15 AMP OUTLET.

PILOT ARC START

START CUT WITHOUT DIRECT CONTACT.

PERFORATED CUTTING MODE

CUTS BOTH SOLID MATERIAL AND PERFORATED MATERIALS WITH EASE.

BUILT-IN AIR COMPRESSOR

The RAZOR CUT 40 AIR comes with a built-in air compressor, giving you more flexibility with a plasma cutter than ever before. Connect an external air compressor for even greater cutting power.



PERFORATED CUTTING MODE

Cuts both solid material and perforated materials with ease.



PILOT ARC START

Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.



FEATURE VIDEO

Check out all of the features on the RAZOR™ CUT 40 AIR Plasma Cutter.

MACHINE SPECIFICATIONS

PRIMARY INPUT VOLTAGE

240V Single Phase

SUPPLY PLUG

15 AMP

RATED INPUT POWER (kVA)

7.2

Ieff (A)

15

RATED OUTPUT

96V

NO LOAD VOLTAGE (V)

210

PROTECTION CLASS

IP21

INSULATION CLASS

H

MINIMUM GENERATOR (kVA)

10.0

DINSE CONNECTOR

10/25

STANDARD

AS/NZ60974-1

WARRANTY (Years)

3

SIZE & WEIGHT

DIMENSIONS (mm)

610x215x420mm

WEIGHT (kg)

18kg

PLASMA CUT SPECIFICATIONS

PLASMA CUT CURRENT RANGE

20-40A

PLASMA CUT DUTY CYCLE @ 40°C

25% @ 40A / 60% @ 26A / 100% @ 20A

MILD STEEL CUT THICKNESS

12mm (INTERNAL) / 16mm (EXTERNAL)

MILD STEEL SEVERANCE THICKNESS

14mm (INTERNAL) / 18mm (EXTERNAL)

ALUMINIUM CUT THICKNESS

6mm (INTERNAL) / 8mm (EXTERNAL)

ALUMINIUM SEVERANCE THICKNESS

8mm (INTERNAL) / 10mm (EXTERNAL)

STAINLESS STEEL CUT THICKNESS

6mm (INTERNAL) / 8mm (EXTERNAL)

STAINLESS STEEL SEVERANCE THICKNESS

8mm (INTERNAL) / 10mm (EXTERNAL)

AIR FLOW DRAW OFF (L/min)

120

AIR FLOW PRESSURE (Bar)

5.17 (75 psi)

PLASMA ARC START

Pilot Arc

Here you’ll find the latest manuals, guides & product/parts information.

RAZOR CUT 40 AIR Manual
RAZOR CUT 40 AIR Info Sheet

UNIMIG is pleased to offer a 3-year warranty on all RAZOR™ Machines*.

UNIMIG offers warranty across Australia with four UNIMIG service centre’s in Sydney, Melbourne, Brisbane & Perth. We also have authorised service centres across Australia as well.UNIMIG’s focus is to assure the buyer is getting reliability, performance and peace of mind with a quality product.

UNIMIG also offers an additional 6 months warranty free of charge when you register your product online via the UNIMIG website.

*Please note warranty only applies to the power source only
