Description

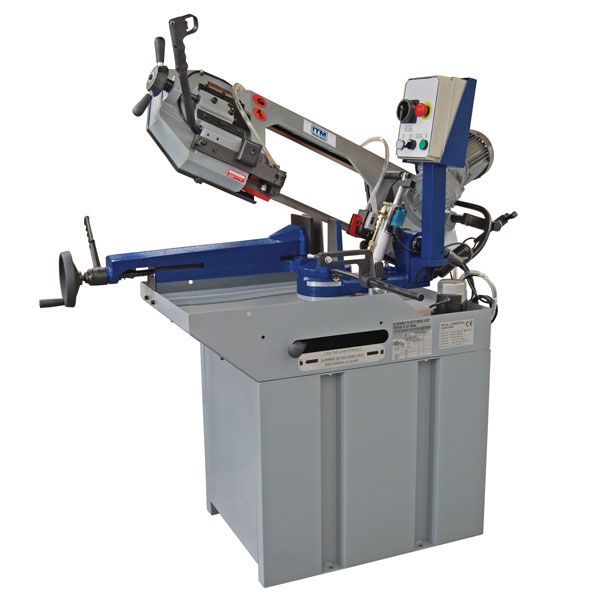

ITM BANDSAW, 227MM CAP, SWIVEL HEAD, 1 SPEED 240V 1PH, HYD DOWN FEED
P/N WP270SH-1
FEATURES
Swivel head enables 0° to 60° mitre cuts.
Dual mode operation.
- Trigger switch with manual downfeed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed.
& automatic shut-off at end of cut, for cutting larger material.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Comes complete with stand & blade
Dual mode operation.
- Trigger switch with manual downfeed for small quick cuts.
- Control panel with fully adjustable hydraulic down feed.
& automatic shut-off at end of cut, for cutting larger material.
Incorporated recirculating coolant system.
Brass chip brush to help prevent blade breakage.
Adjustable material stop for repetitive production.
Comes complete with stand & blade
SPECIFICATIONS
Motor: 1.5HP Single Phase
Blade: Speed Single Speed 72mpm
Blade Size: 27mm x 0.9mm x 2455mm
Bed Height: 885mm
Weight: 216kg
Cutting capacity:
90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 145mm
60° Right - Round: 90mm / Box: 85 x 85mm
Blade: Speed Single Speed 72mpm
Blade Size: 27mm x 0.9mm x 2455mm
Bed Height: 885mm
Weight: 216kg
Cutting capacity:
90° - Round: 227mm / Box: 220 x 220mm / Rectangle: 260 x 110mm
45° Right - Round: 150mm / Box: 145 x 145mm / Rectangle: 200 x 145mm
60° Right - Round: 90mm / Box: 85 x 85mm
