Description
FEATURES
- 2 Blade Kit: 1x 350mm tungsten carbide tipped blade, 66 teeth and 1x 350mm cermet blade carbide tipped, 110 teeth for use with stainless steel.
- Perfect for stainless steel, mild steel, aluminium, thin material and thick material.
- Saves time & money giving cool cuts that need little to no finishing, eliminating any need for grinding or cool down time.
- The fully enclosed retractable guard increases user safety.
- Heavy-duty vice 90° - 45°.
- Pipe vice attachment.
- 12 months warranty.
SPECIFICATIONS
- Motor: 2200W, 3.0hp Single Phase 240V
- Blade Speed: Single Speed 1450rpm
- Blade Size: 350mm
- Blade Bore: 25.4mm
- Weight: 29kg
90° Cutting Capacity:
- Solid Round: 25mm
- Hollow Round: 120mm
- Square: 120mm
- Rectangle: 120 x 120mm
45° Right Cutting Capacity:
- Solid Round: 25mm
- Hollow Round: 90mm
- Square: 90mm
- Rectangle: 120 x 90mm
Replacement Blades:

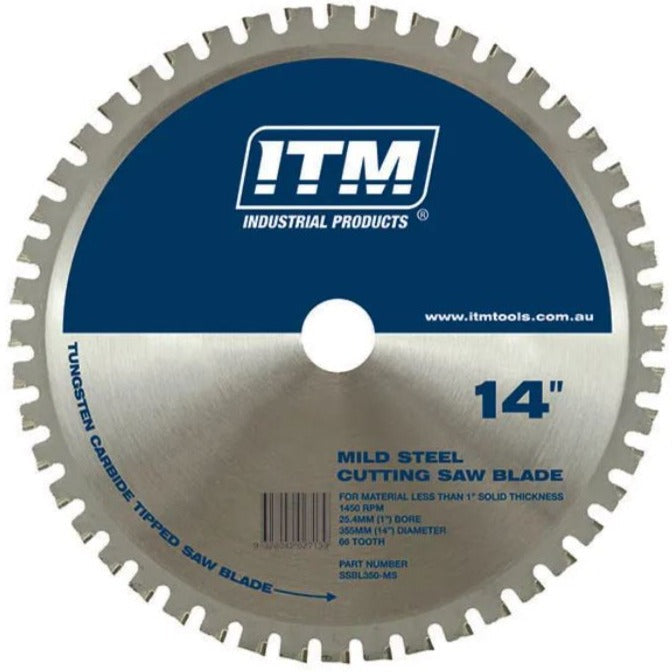

- SSBL350-MS for mild steel to 25.4mnm
- SSBL350-TS for thin mild steel to 6mm
- SSBL350-AL for aluminium to 25.4mm
- SSBL350-CERMET64 for stainless steel to 25mm
- SSBL350-CERMET110 for stainless steel to 6mm
DESCRIPTION
ALSO AVAILABLE:
14" 64 TEETH - GENERAL PURPOSE
CERMET CARBIDE TIPPED BLADE
PART NO. SSBL350-CERMET64
- Blade Diameter: 355mm (14”)
- Number of Teeth: 64
- Blade Bore: 25.4mm (1”)
- Blade Kerf: 2.4mm
- Blade Thickness: 2.0mm
- Max. RPM: 1500
Solid Thickness
- Mild Steel: Max. 25mm, Min. 4mm
- Stainless Steel: Max. 10mm, Min. 4mm
Wall Thickness
- Mild Steel: Max. 12mm, Min. 2mm
- Stainless Steel: Max. 5mm, Min. 2mm
