Description

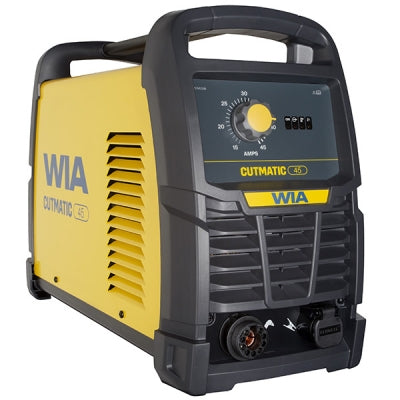

Cutmatic 45
Effortless Plasma Cutting
From the workshop to on-site the Cutmatic 45 is highly portable and can go where you go. Capable of cutting mild steel, stainless steel and aluminium, it can effortlessly clean cut up to 16mm and server cut up to 20mm. The Cutmatic 45 also offers power factor correction for maximum efficiency and pitor arc start for a safe and sound strike. Comes with 3 years warranty.
- 45 A single phase plasma cutter
- Fitted with a 15 Amp plug
- Portable - Only 11kg
- Power Factor Correction - Smooths out the actual input current. Maximises efficiency when welding on long leads or from generators
- Plasma Torch with Pilot Arc Start - Designed for a safe and sound strike without high frequency
- Water and Air Filter - Removes water in the air. Increases torch tip life
- IP21S rated
- Generator compatible – 6-10 kVa
Specifications
Primary Voltage
240 VAC-50/60Hz
Rated Primary Current
14.2 Amps
Max Primary Current
22.5 Amps
Recommended Generator Power
6 kVa Peak*
Supply Plug
15 Amp
Standards Compliance
AS60974.1 & AS1674.2
Weight
11kg
