Description
G13SQ2(H1Z)

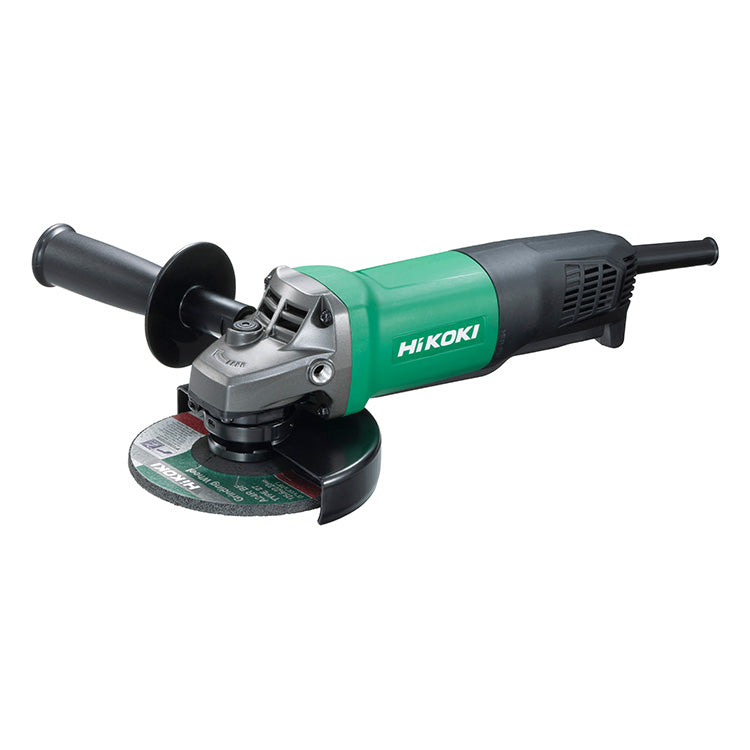

Get the job done faster and easier with HiKOKI. The HiKOKI G13SQ2 125mm 900W Angle Grinder with Paddle Switch is powerful and perfect for removing casting fin and finishing of various types of steel, bronze, aluminium materials and grinding of welded sections, synthetic resins, slate, brick, marble, etc.
Included Accessories
- Side handle
- Wrench
- Depressed centre wheel
Applications
- Removal of casting fin and finishing of various types of steel, bronze, and aluminium materials, and castings
- Grinding of welded sections or sections cut by means of a cutting torch
- Cutting of synthetic concrete, stone, brick, marble, and similar materials
Features
- The high power 900W motor provides more productive work time
- Smallest grip circumference in its class of 168mm
- The stator coil has fluidized bed coatings that resist wear caused by dust
- The paddle switch is large and easy to use. Gripping any part of the tail cover enables the user easy access to the paddle switch
Specifications
| Power Input | 900W |
| Motor Type | Brushed |
| Switch Type | Paddle Switch |
| Grip Circumference | 168mm |
| Grinding Wheel | 125mm |
| Grinding Wheel bore diameter | 22.23mmØ (7/8") |
| Spindle Thread | M14 x 2mm |
| No Load Speed | 10,500rpm |
| No Load vibration level | 9.0m/s2 |
| No-Load sound pressure level | 88dB |
| Weight | 2.0kg |
| Dimensions | 273 x 107mm |
| Spindle Lock |
Yes |
Warranty
- 3 Years Standard Warranty covered by HiKOKI Australia
- 6 Years Extended Warranty on selected products if registered through HiKOKI Australia website
Related Documents
G13SQ2(H1Z) - High res image
G13SQ2(H1Z) - Specification Sheet
G13SQ2(H1Z) - Product Card
G13SQ2(H1Z) - Product Instruction Manual
G13SQ2(H1Z) - Parts Diagram
