RAZOR ARC 140 MMA/TIG WELDER

Name: RAZOR ARC 140 MMA/TIG WELDER
Brand: UNIMIG
SKU: U13004
Price: 554.0 AUD
Availability: InStock

SKU: U13004

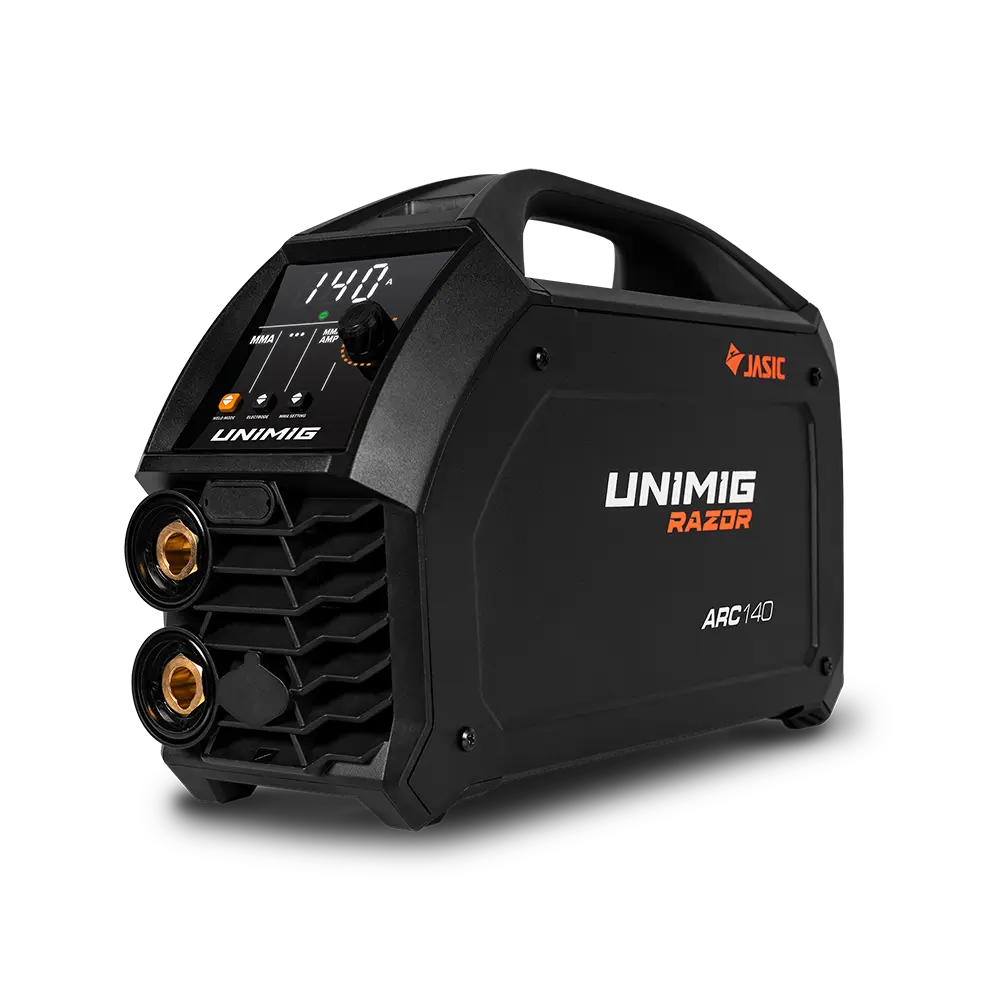

RAZOR ARC 140 Welder

Perfect for the work site or the home garage, this powerful STICK machine comes in the most portable case.

Packed full of advanced features including hot start, arc force and anti-stick
Capable of DC Lift Arc TIG for more versatility
A 5-year warranty to reflect our confidence in this machine

SKU: U13004

In the box

RAZOR ARC 140 Welder
4m Twist Lock Electrode Holder
4m 300A Earth Clamp & Lead
Operating Manual

Machine Specifications:

Primary Input Voltage

240V Single-Phase

Supply Plug

10A

Ieff (A)

9.7

Imax (A)

27.0

Open Circuit Voltage (OCV)

78.0

Open Circuit Voltage with VRD Active (V)

11.0

Protection Class

IP23S

Insulation Class

Minimum Generator (kVA)

8.0

Dinse Connector

35/50

Standard

AS 60974.1

Warranty

5 Years

Weight (kg)

5.5

Dimensions (LxWxH)

370 x 125 x 255mm

Suitable Materials

MMA: Mild Steel, Stainless Steel, Cast Iron

TIG: Mild Steel, Stainless Steel, Copper, Silicon Bronze

MMA Specifications

MMA Current Range

20-140A

MMA Duty Cycle @ 40°C

15% @ 140A

60% @ 70A

100% @ 54A

MMA Electrode Range

2.5-3.2mm

MMA Welding Thickness Range

2-8mm

TIG Specifications

TIG Ignition Type

DC Lift Arc

TIG Current Range

10-140A

TIG Duty Cycle @ 40°C

20% @ 140A

60% @ 80.8A

100% @ 62.6A

TIG Welding Thickness Range

1-5mm
